This class is describes an operator operating on slice of particles of a network SM_Network. More...

#include <SM_SliceOperator.h>

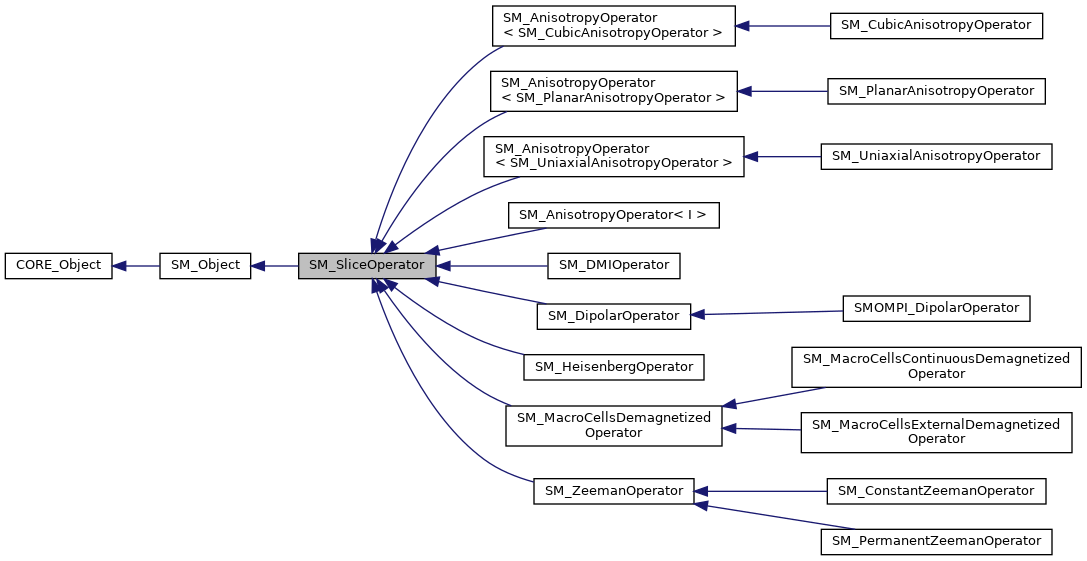

Inheritance diagram for SM_SliceOperator:

[legend]

Collaboration diagram for SM_SliceOperator:

Public Member Functions
virtual CORE_UniquePointer< SM_SliceOperator >	NewInstance () const =0
	create a New instance of this More...

virtual tMemSize	getMemorySize () const
	return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize	getContentsMemorySize () const
	return nthe memory size of the included associations More...

const tString &	getName () const
	return the operator name More...

virtual void	copy (const SM_SliceOperator &op)
	copy More...

virtual void	adimensionize (const tReal &cH)
	adimensionize operator with characteric field value in J More...

virtual void	discretize (const SM_Network &network, const SM_Material &material)
	discretize the operator on the network More...

virtual void	updateState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S)
	update the stae of the operator at time index More...

virtual void	computeMagneticFieldSlice (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal S, const tBoolean &alpha, const tIndex &nH, tReal H) const =0
	compute the magnetic field slice by virtual method for particles in indices [startIndex,endIndex[ More...

virtual tReal	computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const =0
	compute the spin energy by virtual method More...

virtual tReal	computeEnergySlice (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S) const =0
	compute the energy by virtual method More...

virtual tString	toString () const override
	return string representaton of the operator

Public Member Functions inherited from SM_Object
	SM_Object (void)
	create

virtual	~SM_Object (void)
	destroy

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Protected Member Functions
	SM_SliceOperator (void)
	create a network class

virtual	~SM_SliceOperator (void)
	destroy

void	setName (const tString &name)
	set the name More...

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Additional Inherited Members
Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Detailed Description

This class is describes an operator operating on slice of particles of a network SM_Network.

The SM_SliceOperator implements :

adimenisonize(h) : adimensionizes the operator with the charactericti values of the field h
discretize(SM_Network,SM_Material) : discretizes the operator with the network and material data
updateState(step�ndex,SM_Network,SM_Material,S) : updates the operator with the direction of the magnetic moment of spins
computeMagneticField(stepIndex,SM_Network,SM_Material,S,H) computes the magnetic field H from S and the data of the network and the material for stepIndex
computeSpinEnergy(i,stepIndex,SM_Network,SM_Material,S) computes the energy of the spin i from S and the data of the network and the material for stepIndex
computeEnergy(,stepIndex,SM_Network,SM_Material,S) compute sthe enrgy of the network

Author
Stephane Despreaux

Version
2.0

Member Function Documentation

◆ adimensionize()

virtual void SM_SliceOperator::adimensionize ( const tReal & cH )

inlinevirtual

adimensionize operator with characteric field value in J

Parameters

[in] cH : charateristic field value in J \( \mu_0 . \mu_s . a^{-3}\)

Reimplemented in SM_ZeemanOperator.

◆ computeEnergySlice()

virtual tReal SM_SliceOperator::computeEnergySlice	(	const tIndex &	timeIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const tIndex &	startIndex,
		const tIndex &	endIndex,
		const tReal *	S
	)		const

pure virtual

compute the energy by virtual method

Parameters

[in]	timeIndex	: index of time
[in]	network	: network
[in]	material	: material of the network
[in]	startIndex	: start index of the particle to compute the energy
[in]	endIndex	: end index of the particle to compute the energy
[in]	S	unit direction of magnetic spin moment of size nParticles x dim

Returns: the energy of the operator

Implemented in SMOMPI_DipolarOperator, SM_ZeemanOperator, SM_HeisenbergOperator, SM_DMIOperator, SM_AnisotropyOperator< I >, SM_AnisotropyOperator< SM_CubicAnisotropyOperator >, SM_AnisotropyOperator< SM_PlanarAnisotropyOperator >, SM_AnisotropyOperator< SM_UniaxialAnisotropyOperator >, SM_MacroCellsDemagnetizedOperator, SM_ConstantZeemanOperator, and SM_MacroCellsExternalDemagnetizedOperator.

◆ computeMagneticFieldSlice()

virtual void SM_SliceOperator::computeMagneticFieldSlice	(	const tIndex &	timeIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const tIndex &	startIndex,
		const tIndex &	endIndex,
		const tReal *	S,
		const tBoolean &	alpha,
		const tIndex &	nH,
		tReal *	H
	)		const

pure virtual

compute the magnetic field slice by virtual method for particles in indices [startIndex,endIndex[

Parameters

[in]	timeIndex	: time step index
[in]	network	: network
[in]	material	: material of the network
[in]	startIndex	: start index of the particle to compute the energy
[in]	endIndex	: end index of the particle to compute the energy
[in]	S	unit direction of magnetic spin moment of size nParticles x dim
[in]	alpha	: sum operator
[in]	nH	number of elements of H
[in,out]	H	magnetic field of size nH x dim

Computes \( H=alpha.H+H_{op} \)

Implemented in SM_MacroCellsDemagnetizedOperator, SMOMPI_DipolarOperator, SM_ZeemanOperator, SM_ConstantZeemanOperator, SM_HeisenbergOperator, SM_DMIOperator, SM_AnisotropyOperator< I >, SM_AnisotropyOperator< SM_CubicAnisotropyOperator >, SM_AnisotropyOperator< SM_PlanarAnisotropyOperator >, and SM_AnisotropyOperator< SM_UniaxialAnisotropyOperator >.

◆ computeSpinEnergy()

virtual tReal SM_SliceOperator::computeSpinEnergy	(	const tIndex &	i,
		const tIndex &	timeIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const SM_RealField &	S
	)		const

pure virtual

compute the spin energy by virtual method

Parameters

[in]	i	: index of the particles
[in]	timeIndex	: time step index
[in]	network	: network
[in]	material	: material of the network
[in]	S	unit direction of magnetic spin moment of size nParticles x dim

Returns: the energy of the operator

Implemented in SM_ZeemanOperator, SM_MacroCellsDemagnetizedOperator, SM_ConstantZeemanOperator, SM_HeisenbergOperator, SM_DMIOperator, SM_MacroCellsExternalDemagnetizedOperator, SMOMPI_DipolarOperator, SM_AnisotropyOperator< I >, SM_AnisotropyOperator< SM_CubicAnisotropyOperator >, SM_AnisotropyOperator< SM_PlanarAnisotropyOperator >, and SM_AnisotropyOperator< SM_UniaxialAnisotropyOperator >.

◆ copy()

virtual void SM_SliceOperator::copy ( const SM_SliceOperator & op )

inlinevirtual

copy

Parameters

[in] op : operator to copy

Reimplemented in SM_ZeemanOperator.

◆ discretize()

virtual void SM_SliceOperator::discretize	(	const SM_Network &	network,
		const SM_Material &	material
	)

inlinevirtual

discretize the operator on the network

Parameters

[in]	network	: network on which the operator is applied
[in]	material	: material of the network

Reimplemented in SM_ZeemanOperator, SM_PermanentZeemanOperator, SM_ConstantZeemanOperator, SM_MacroCellsDemagnetizedOperator, SM_DipolarOperator, and SM_MacroCellsExternalDemagnetizedOperator.

◆ getContentsMemorySize()

virtual tMemSize SM_SliceOperator::getContentsMemorySize ( ) const

inlinevirtual

return nthe memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from CORE_Object.

Reimplemented in SM_ZeemanOperator, SM_MacroCellsExternalDemagnetizedOperator, SM_MacroCellsDemagnetizedOperator, SM_MacroCellsContinuousDemagnetizedOperator, SM_DipolarOperator, SMOMPI_DipolarOperator, SM_UniaxialAnisotropyOperator, SM_PlanarAnisotropyOperator, and SM_CubicAnisotropyOperator.

◆ getMemorySize()

virtual tMemSize SM_SliceOperator::getMemorySize ( ) const

inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from SM_Object.

Reimplemented in SM_ZeemanOperator, SM_PermanentZeemanOperator, SM_ConstantZeemanOperator, SM_HeisenbergOperator, SM_DMIOperator, SM_MacroCellsExternalDemagnetizedOperator, SM_MacroCellsDemagnetizedOperator, SM_MacroCellsContinuousDemagnetizedOperator, SM_DipolarOperator, SMOMPI_DipolarOperator, SM_UniaxialAnisotropyOperator, SM_PlanarAnisotropyOperator, SM_CubicAnisotropyOperator, SM_AnisotropyOperator< I >, SM_AnisotropyOperator< SM_CubicAnisotropyOperator >, SM_AnisotropyOperator< SM_PlanarAnisotropyOperator >, and SM_AnisotropyOperator< SM_UniaxialAnisotropyOperator >.

◆ getName()

const tString& SM_SliceOperator::getName ( ) const

inline

return the operator name

Returns: the name of the operator

◆ NewInstance()

virtual CORE_UniquePointer<SM_SliceOperator> SM_SliceOperator::NewInstance ( ) const

pure virtual

create a New instance of this

Returns: an unique pointer to the instance

Implemented in SM_ZeemanOperator, SM_PermanentZeemanOperator, SM_ConstantZeemanOperator, SM_HeisenbergOperator, SM_DMIOperator, SM_MacroCellsExternalDemagnetizedOperator, SM_MacroCellsContinuousDemagnetizedOperator, SMOMPI_DipolarOperator, SM_UniaxialAnisotropyOperator, SM_PlanarAnisotropyOperator, and SM_CubicAnisotropyOperator.

◆ setName()

void SM_SliceOperator::setName ( const tString & name )

inlineprotected

set the name

Parameters

[in] name name of the operator

◆ updateState()

virtual void SM_SliceOperator::updateState	(	const tIndex &	timeIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const SM_RealField &	S
	)

inlinevirtual

update the stae of the operator at time index

Parameters

[in]	timeIndex	: time step index
[in]	network	: network
[in]	material	: material of the network
[in]	S	unit direction of magnetic spin moment of size nParticles x dim

Reimplemented in SM_MacroCellsDemagnetizedOperator, and SM_MacroCellsExternalDemagnetizedOperator.

The documentation for this class was generated from the following file:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/core/SM_SliceOperator.h
