This class describes a demagnetized operator consided as external applied field. More...

#include <SM_MacroCellsExternalDemagnetizedOperator.h>

Inheritance diagram for SM_MacroCellsExternalDemagnetizedOperator:

[legend]

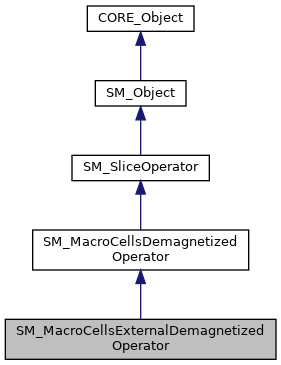

Collaboration diagram for SM_MacroCellsExternalDemagnetizedOperator:

[legend]

Public Member Functions
virtual tMemSize	getMemorySize () const
	return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize	getContentsMemorySize () const
	return the memory size of the included associations More...

virtual CORE_UniquePointer< SM_SliceOperator >	NewInstance () const override
	create a New instance of this More...

void	setDemagnetizedUpdatingStepsNumber (const tInteger &n)
	set the number of steps to update demagnetized field More...

const tInteger &	getDemagnetizedUpdatingStepsNumber () const
	get the number of steps to update demagnetized field

virtual void	discretize (const SM_Network &network, const SM_Material &material) final
	discretize the operator on the netowek More...

virtual void	updateState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) final
	uopdate the state of the operator at time index More...

virtual tReal	computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const final
	compute the spin energy by virtual method More...

virtual tReal	computeEnergySlice (const tIndex &stepIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S) const final
	compute the energy by virtual method More...

virtual tString	toString () const final
	return string representaton of the operator

Public Member Functions inherited from SM_MacroCellsDemagnetizedOperator
void	setMacroCellsNetwork (CORE_UniquePointer< SM_MacroCellsNetwork > network)
	set the macro cell network

SM_MacroCellsNetwork &	getMacroCellsNetwork ()
	get the macro cell network

const SM_MacroCellsNetwork &	getMacroCellsNetwork () const
	get the macro cell network

void	setMacroCellsMagnetizationField (CORE_UniquePointer< SM_MacroCellsMagnetizationField > f)
	set the macro cell Magnetization field

SM_MacroCellsMagnetizationField &	getMacroCellsMagnetizationField ()
	get the macro cells Magnetization field

const SM_MacroCellsMagnetizationField &	getMacroCellsMagnetizationField () const
	get the macro cells Magnetization field

void	setMacroCellsDemagnetizedField (CORE_UniquePointer< SM_MacroCellsDemagnetizedField > f)
	set the macro cell demagnetized field

SM_MacroCellsDemagnetizedField &	getMacroCellsDemagnetizedField ()
	get the macro cells demagnetized field

const SM_MacroCellsDemagnetizedField &	getMacroCellsDemagnetizedField () const
	get the macro cells demagnetized field

virtual void	computeMagneticFieldSlice (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal S, const tBoolean &alpha, const tIndex &nH, tReal H) const final
	compute the anisotropy magnetic field by virtual method More...

Public Member Functions inherited from SM_SliceOperator
const tString &	getName () const
	return the operator name More...

virtual void	copy (const SM_SliceOperator &op)
	copy More...

virtual void	adimensionize (const tReal &cH)
	adimensionize operator with characteric field value in J More...

Public Member Functions inherited from SM_Object
	SM_Object (void)
	create

virtual	~SM_Object (void)
	destroy

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Static Public Member Functions
static CORE_UniquePointer< SelfClass >	New (const CORE_OptionsList &arguments)
	build a new instance of the operator More...

static CORE_UniquePointer< SelfClass >	New ()
	build a new instance of the operator More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	SM_MacroCellsExternalDemagnetizedOperator (const CORE_OptionsList &arguments)
	create a network class

virtual	~SM_MacroCellsExternalDemagnetizedOperator (void)
	destroy

Protected Member Functions inherited from SM_MacroCellsDemagnetizedOperator
	SM_MacroCellsDemagnetizedOperator (const CORE_OptionsList &arguments)
	create a network class

virtual	~SM_MacroCellsDemagnetizedOperator (void)
	destroy

Protected Member Functions inherited from SM_SliceOperator
	SM_SliceOperator (void)
	create a network class

virtual	~SM_SliceOperator (void)
	destroy

void	setName (const tString &name)
	set the name More...

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

This class describes a demagnetized operator consided as external applied field.

The Demagnetized field is considered as an external field. So the energy is computed as a Zeeman operator:

Energy of spin i : \( E_i=-\mu_s H_{dem}^{p_i}.S(i) \) where \( p_i\) is the macro cell containing the spin i
Total Energy of the system : \( E=-\mu_s \sum_i H_{dem}^{p_i}.S(i) \)

Author
Stephane Despreaux

Version
2.0

Member Function Documentation

◆ computeEnergySlice()

tReal SM_MacroCellsExternalDemagnetizedOperator::computeEnergySlice	(	const tIndex &	stepIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const tIndex &	startIndex,
		const tIndex &	endIndex,
		const tReal *	S
	)		const

finalvirtual

compute the energy by virtual method

Parameters

[in]	stepIndex	index of step
[in]	network	: network
[in]	material	: material of the network
[in]	startIndex	: start index of the particle to compute the energy
[in]	endIndex	: end index of the particle to compute the energy
[in]	S	unit direction of magnetic spin moment of size nParticles x SM_Constants::DIM

Returns: the energy of the operator

It returns \( E=\frac{1}{2} \sum_p E_i \)

Reimplemented from SM_MacroCellsDemagnetizedOperator.

◆ computeSpinEnergy()

tReal SM_MacroCellsExternalDemagnetizedOperator::computeSpinEnergy	(	const tIndex &	i,
		const tIndex &	timeIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const SM_RealField &	S
	)		const

finalvirtual

compute the spin energy by virtual method

Parameters

[in]	i	: index of the particles
[in]	timeIndex	: time step index
[in]	network	: network
[in]	material	: material of the network
[in]	S	unit direction of magnetic spin moment of size nParticles x dim

Returns: the energy of the operator \( E_i= H_{dip}.\frac{M_s}{4.\pi} \displaystyle \sum_{j=0}^{j=P-1} \frac{1}{r_{ij}^3} \left ( <S_i,S_j> -3<U,Si><U,Sj> \right )\) with \(r_{ij}=|P_j-P_i|\) and \( U=\frac{1}{r_ij} (P_j-P_i)\)

Reimplemented from SM_MacroCellsDemagnetizedOperator.

◆ discretize()

virtual void SM_MacroCellsExternalDemagnetizedOperator::discretize	(	const SM_Network &	network,
		const SM_Material &	material
	)

inlinefinalvirtual

discretize the operator on the netowek

Parameters

[in]	network	:operator on which the operatr is applied
[in]	material	: material of the particles of the network

Reimplemented from SM_MacroCellsDemagnetizedOperator.

◆ getContentsMemorySize()

virtual tMemSize SM_MacroCellsExternalDemagnetizedOperator::getContentsMemorySize ( ) const

inlinevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from SM_MacroCellsDemagnetizedOperator.

◆ getMemorySize()

virtual tMemSize SM_MacroCellsExternalDemagnetizedOperator::getMemorySize ( ) const

inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from SM_MacroCellsDemagnetizedOperator.

◆ New() [1/2]

static CORE_UniquePointer<SelfClass> SM_MacroCellsExternalDemagnetizedOperator::New ( )

inlinestatic

build a new instance of the operator

Returns: an unique pointer of the operator

◆ New() [2/2]

static CORE_UniquePointer<SelfClass> SM_MacroCellsExternalDemagnetizedOperator::New ( const CORE_OptionsList & arguments )

inlinestatic

build a new instance of the operator

Returns: an unique pointer of the operator

◆ NewInstance()

virtual CORE_UniquePointer<SM_SliceOperator> SM_MacroCellsExternalDemagnetizedOperator::NewInstance ( ) const

inlineoverridevirtual

create a New instance of this

Returns: an unique pointer to the instance

Implements SM_SliceOperator.

◆ setDemagnetizedUpdatingStepsNumber()

void SM_MacroCellsExternalDemagnetizedOperator::setDemagnetizedUpdatingStepsNumber ( const tInteger & n )

inline

set the number of steps to update demagnetized field

Parameters

[in] n : number of steps betwrrn 2 computations of demagnetized field on macro cells

◆ updateState()

virtual void SM_MacroCellsExternalDemagnetizedOperator::updateState	(	const tIndex &	timeIndex,
		const SM_Network &	network,
		const SM_Material &	material,
		const SM_RealField &	S
	)

inlinefinalvirtual

uopdate the state of the operator at time index

Parameters

[in]	timeIndex	: time step index
[in]	network	: network
[in]	material	: material of the network
[in]	S	unit direction of magnetic spin moment of size nParticles x dim

Reimplemented from SM_MacroCellsDemagnetizedOperator.

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/dipolar/SM_MacroCellsExternalDemagnetizedOperator.h
/home/despreau/Developpement/CPP/devcpp20/src/stochmagnet/operators/dipolar/SM_MacroCellsExternalDemagnetizedOperator.cpp
