This class describes a demagnetized operator on macro cells network. More...
#include <SM_MacroCellsContinuousDemagnetizedOperator.h>

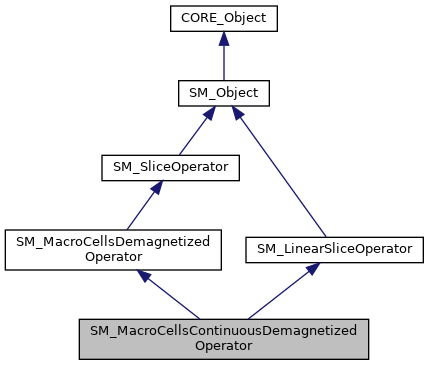

Inheritance diagram for SM_MacroCellsContinuousDemagnetizedOperator:
Collaboration diagram for SM_MacroCellsContinuousDemagnetizedOperator:
Public Member Functions | |
| virtual tMemSize | getMemorySize () const |
| return the memory size of the class and the memory size of all its attributes/associations More... | |
| virtual tMemSize | getContentsMemorySize () const |
| return the memory size of the included associations More... | |
| virtual CORE_UniquePointer< SM_SliceOperator > | NewInstance () const override |
| create a New instance of this More... | |
| virtual tString | toString () const final |
| return string representaton of the operator | |
 Public Member Functions inherited from SM_MacroCellsDemagnetizedOperator | |
| void | setMacroCellsNetwork (CORE_UniquePointer< SM_MacroCellsNetwork > network) |
| set the macro cell network | |
| SM_MacroCellsNetwork & | getMacroCellsNetwork () |
| get the macro cell network | |
| const SM_MacroCellsNetwork & | getMacroCellsNetwork () const |
| get the macro cell network | |
| void | setMacroCellsMagnetizationField (CORE_UniquePointer< SM_MacroCellsMagnetizationField > f) |
| set the macro cell Magnetization field | |
| SM_MacroCellsMagnetizationField & | getMacroCellsMagnetizationField () |
| get the macro cells Magnetization field | |
| const SM_MacroCellsMagnetizationField & | getMacroCellsMagnetizationField () const |
| get the macro cells Magnetization field | |
| void | setMacroCellsDemagnetizedField (CORE_UniquePointer< SM_MacroCellsDemagnetizedField > f) |
| set the macro cell demagnetized field | |
| SM_MacroCellsDemagnetizedField & | getMacroCellsDemagnetizedField () |
| get the macro cells demagnetized field | |
| const SM_MacroCellsDemagnetizedField & | getMacroCellsDemagnetizedField () const |
| get the macro cells demagnetized field | |
| virtual void | discretize (const SM_Network &network, const SM_Material &material) override |
| discretize the operator on the netowek More... | |
| virtual void | updateState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) override |
| uodate the state of the operator at time index More... | |
| virtual void | computeMagneticFieldSlice (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S, const tBoolean &alpha, const tIndex &nH, tReal *H) const final |
| compute the anisotropy magnetic field by virtual method More... | |
| virtual tReal | computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const override |
| compute the spin energy by virtual method More... | |
| virtual tReal | computeEnergySlice (const tIndex &stepIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S) const override |
| compute the energy by virtual method More... | |
| Public Member Functions inherited from SM_SliceOperator | |
| const tString & | getName () const |
| return the operator name More... | |
| virtual void | copy (const SM_SliceOperator &op) |
| copy More... | |
| virtual void | adimensionize (const tReal &cH) |
| adimensionize operator with characteric field value in J More... | |
| Public Member Functions inherited from SM_Object | |
| SM_Object (void) | |
| create | |
| virtual | ~SM_Object (void) |
| destroy | |
| Public Member Functions inherited from CORE_Object | |
| template<class T > | |
| std::shared_ptr< T > | getSharedPointer () |
| return the shared pointer for this More... | |
| template<class T > | |
| std::shared_ptr< const T > | getConstSharedPointer () const |
| return a const shared pointer for this More... | |
| template<class T > | |
| tBoolean | isInstanceOf () const |
| test if the clas T is an instance of this class More... | |
| tString | getClassName () const |
| return the name of the class More... | |
| tString | getPointerString () const |
| retrun the pointer of the class as a string More... | |
| tString | getIdentityString () const |
| retrun the string identification of the class More... | |
Static Public Member Functions | |
| static CORE_UniquePointer< SelfClass > | New (const CORE_OptionsList &arguments) |
| build a new instance of the operator More... | |
| static CORE_UniquePointer< SelfClass > | New () |
| build a new instance of the operator More... | |
| Static Public Member Functions inherited from CORE_Object | |
| static tBoolean | EnableMemoryStack (const tBoolean &isMemoryChecked) |
| enable the memory stack More... | |
| static void | EnableMemoryStack () |
| enable the memory stack | |
| static void | DisableMemoryStack () |
| disable the memory stack | |
| static tBoolean | IsMemoryStackEnabled () |
| return trur if the memory stack is enabled | |
| static tString | MemoryStackToString () |
| get the memory stack in string More... | |
| static tIndex | GetRegisteredClassesNumber () |
| get the memory stack in string More... | |
| Static Public Member Functions inherited from SM_LinearSliceOperator | |
| static tReal | ComputeEnergy (const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S, const tInteger &nH, const tReal *H) |
| compute the energy by virtual method More... | |
Protected Member Functions | |
| SM_MacroCellsContinuousDemagnetizedOperator (const CORE_OptionsList &arguments) | |
| create a network class | |
| virtual | ~SM_MacroCellsContinuousDemagnetizedOperator (void) |
| destroy | |
| Protected Member Functions inherited from SM_MacroCellsDemagnetizedOperator | |
| SM_MacroCellsDemagnetizedOperator (const CORE_OptionsList &arguments) | |
| create a network class | |
| virtual | ~SM_MacroCellsDemagnetizedOperator (void) |
| destroy | |
| Protected Member Functions inherited from SM_SliceOperator | |
| SM_SliceOperator (void) | |
| create a network class | |
| virtual | ~SM_SliceOperator (void) |
| destroy | |
| void | setName (const tString &name) |
| set the name More... | |
| Protected Member Functions inherited from CORE_Object | |
| CORE_Object () | |
| build an instance of the object | |
| virtual | ~CORE_Object () |
| destroy the instance of object std | |
| Protected Member Functions inherited from SM_LinearSliceOperator | |
| SM_LinearSliceOperator (void) | |
| create a network class | |
| virtual | ~SM_LinearSliceOperator (void) |
| destroy | |
Detailed Description
This class describes a demagnetized operator on macro cells network.
The Demagnetized field is considered as an external field. So the energy is computed as a Zeeman operator:
- Energy of spin i : \( E_i=-\mu_s H_{dem}^{p_i}.S(i) \) where \( p_i\) is the macro cell containing the spin i
Total Energy of the system : \( E=-\mu_s \sum_i H_{dem}^{p_i}.S(i) \)
- Version
- 2.0
Member Function Documentation
◆ getContentsMemorySize()
|
inlinevirtual |
return the memory size of the included associations
- Returns
- the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb
Reimplemented from SM_MacroCellsDemagnetizedOperator.
◆ getMemorySize()
|
inlinevirtual |
return the memory size of the class and the memory size of all its attributes/associations
- Returns
- the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :
- the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
- we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo
- the added size of the base classes which contains:
Reimplemented from SM_MacroCellsDemagnetizedOperator.
◆ New() [1/2]
|
inlinestatic |
build a new instance of the operator
- Returns
- an unique pointer of the operator
◆ New() [2/2]
|
inlinestatic |
build a new instance of the operator
- Returns
- an unique pointer of the operator
◆ NewInstance()
|
inlineoverridevirtual |
The documentation for this class was generated from the following file:
- /home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/dipolar/SM_MacroCellsContinuousDemagnetizedOperator.h
