SM_DipolarOperator Class Reference

This class is describes a demagnetized operator. More...

#include <SM_DipolarOperator.h>

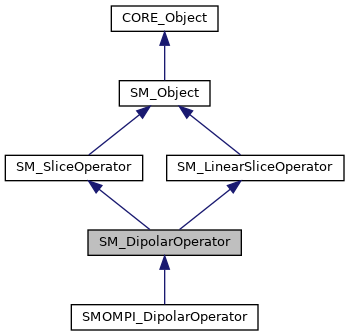

Inheritance diagram for SM_DipolarOperator:
Inheritance graph
[legend]

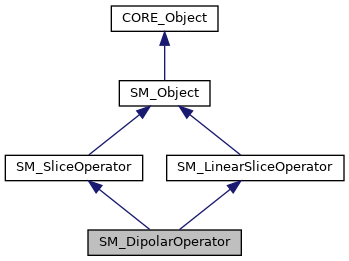

Collaboration diagram for SM_DipolarOperator:
Collaboration graph
[legend]

Public Member Functions

virtual tMemSize getMemorySize () const
 return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize getContentsMemorySize () const
 return the memory size of the included associations More...

virtual void discretize (const SM_Network &network, const SM_Material &material) override
 discretize the operator on the netowek More...

void computeDipolarFieldAtPoints (const SM_Material &material, const tInteger &nP, const tReal *P, const tReal *S, const tInteger &nX, const tReal *X, const tBoolean &alpha, tReal *H) const
 compute the magnetic field by virtual method More...

void computeDipolarFieldAtSeparatedPoints (const SM_Material &material, const tInteger &nP, const tReal *P, const tReal *S, const tInteger &nX, const tReal *X, const tBoolean &alpha, tReal *H) const
 compute the dipolar field at separated X points
More...

- Public Member Functions inherited from SM_SliceOperator
virtual CORE_UniquePointer< SM_SliceOperator > NewInstance () const =0
 create a New instance of this More...

const tString & getName () const
 return the operator name More...

virtual void copy (const SM_SliceOperator &op)
 copy More...

virtual void adimensionize (const tReal &cH)
 adimensionize operator with characteric field value in J More...

virtual void updateState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S)
 update the stae of the operator at time index More...

virtual void computeMagneticFieldSlice (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S, const tBoolean &alpha, const tIndex &nH, tReal *H) const =0
 compute the magnetic field slice by virtual method for particles in indices [startIndex,endIndex[ More...

virtual tReal computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const =0
 compute the spin energy by virtual method More...

virtual tReal computeEnergySlice (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S) const =0
 compute the energy by virtual method More...

virtual tString toString () const override
 return string representaton of the operator

- Public Member Functions inherited from SM_Object
 SM_Object (void)
 create

virtual ~SM_Object (void)
 destroy

- Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T > getSharedPointer ()
 return the shared pointer for this More...

template<class T >
std::shared_ptr< const T > getConstSharedPointer () const
 return a const shared pointer for this More...

template<class T >
tBoolean isInstanceOf () const
 test if the clas T is an instance of this class More...

tString getClassName () const
 return the name of the class More...

tString getPointerString () const
 retrun the pointer of the class as a string More...

tString getIdentityString () const
 retrun the string identification of the class More...


Static Public Member Functions

static void ComputeSpinDipolarEnergy (const tReal &mu_s, const tReal &Edip, const tInteger &nParticles, const tReal *X, const tReal *S, const tReal *Xi, const tReal *Si, tReal &E)
 compute the dipolar spin energy More...

static void ComputeSeparatedSpinDipolarEnergy (const tReal &mu_s, const tReal &Edip, const tInteger &nParticles, const tReal *X, const tReal *S, const tReal *Xi, const tReal *Si, tReal &E)
 compute the dipolar spin energy for a separated domain \( \Omega_j\) More...

- Static Public Member Functions inherited from CORE_Object
static tBoolean EnableMemoryStack (const tBoolean &isMemoryChecked)
 enable the memory stack More...

static void EnableMemoryStack ()
 enable the memory stack

static void DisableMemoryStack ()
 disable the memory stack

static tBoolean IsMemoryStackEnabled ()
 return trur if the memory stack is enabled

static tString MemoryStackToString ()
 get the memory stack in string More...

static tIndex GetRegisteredClassesNumber ()
 get the memory stack in string More...

- Static Public Member Functions inherited from SM_LinearSliceOperator
static tReal ComputeEnergy (const SM_Network &network, const SM_Material &material, const tIndex &startIndex, const tIndex &endIndex, const tReal *S, const tInteger &nH, const tReal *H)
 compute the energy by virtual method More...


Protected Member Functions

 SM_DipolarOperator (void)
 create a network class

virtual ~SM_DipolarOperator (void)
 destroy

const tReal & getLambdaH () const
 get lambda H More...

- Protected Member Functions inherited from SM_SliceOperator
 SM_SliceOperator (void)
 create a network class

virtual ~SM_SliceOperator (void)
 destroy

void setName (const tString &name)
 set the name More...

- Protected Member Functions inherited from CORE_Object
 CORE_Object ()
 build an instance of the object

virtual ~CORE_Object ()
 destroy the instance of object std


- Protected Member Functions inherited from SM_LinearSliceOperator
 SM_LinearSliceOperator (void)
 create a network class

virtual ~SM_LinearSliceOperator (void)
 destroy


Detailed Description

This class is describes a demagnetized operator.

The demagnetized energy at a spin i located at particle \( P_i\) is \( E_i= \frac{\mu_0.\mu_s^2\mu_B^2}{4.\pi.A^3} \displaystyle \sum_{j=0,i\neq j}^{j=P-1} \left ( \frac{<S_i,S_j>}{r_{ij}^3} - 3 \frac{<r_{ij},S_i><r_{ij},S_j>}{r_{ij}^5} \right ) \) with \( r_{ij}=P_j-P_i \) where A is the 1 agstrom expressed in m \( A=1.10^{-10} \)

In order to have \(\displaystyle \forall i \in [0,P[, \frac{dE}{d\mu_i}(P)=-\frac{1}{\mu_s.\mu_B}. H(P) \),

the corresponding magnetic excitation field is at particle \( P_i\) for spin i : \( H(P_i)= - \frac{\mu_0.\mu_s\mu_B}{4.\pi.A^3} \displaystyle \sum_{j=0,j \neq i}^{P-1} \left ( \frac{S_j}{r_{ij}^3} - 3 \frac{r_{ij} <r_{ij},S_j>}{r_{ij}^5} \right ) \)

The total demagnetzied field of all the system is the half of the sum of all spin energy in order not to take into accoung dipolar energy between spin i and j twice and to verify the above relation which link the energy and the magnetic field:

\( E_i= \frac{1}{2} . \frac{\mu_0.\mu_s^2\mu_B^2}{4.\pi.A^3} \displaystyle \sum_{i=0}^{i=P-1} \sum_{j=0,i\neq j}^{j=P-1} \left ( \frac{<S_i,S_j>}{r_{ij}^3} - 3 \frac{<r_{ij},S_i><r_{ij},S_j>}{r_{ij}^5} \right ) \) with \( r_{ij}=P_j-P_i \)

As H is linear with respect of \( \mu_i\), the energy can also be computed as \( \displaystyle E=- \frac{1}{2} \sum_{i=0}^{P-1} <H(P_i),\mu(P_i)> \)

The adimensionized version gives:

\( e_i= \frac{\mu_s^2}{4.\pi} \displaystyle \sum_{j=0,i\neq j}^{j=P-1} \left ( \frac{<S_i,S_j>}{r_{ij}^3} - 3 \frac{<r_{ij},S_i><r_{ij},S_j>}{r_{ij}^5} \right ) \) with \( r_{ij}=P_j-P_i \) \( h_i= - \frac{\mu_s}{4.\pi} \displaystyle \sum_{j=0,j \neq i}^{P-1} \left ( \frac{S_j}{r_{ij}^3} - 3 \frac{r_{ij} <r_{ij},S_j>}{r_{ij}^5} \right ) \)

Author
Stephane Despreaux
Version
2.0

Member Function Documentation

◆ computeDipolarFieldAtPoints()

void SM_DipolarOperator::computeDipolarFieldAtPoints ( const SM_Material &  material,
const tInteger &  nP,
const tReal *  P,
const tReal *  S,
const tInteger &  nX,
const tReal *  X,
const tBoolean &  alpha,
tReal *  H
) const

compute the magnetic field by virtual method

Parameters
[in]material: material of the networks
[in]nPnumber of particles of the network (P,S)
[in]Pnetwork of the points on with to compute the dipolar field
[in]Sunit direction of magnetic spin moment of size nParticles x SM_Constants::DIM
[in]nXnumber of particles in X
[in]X; coordinates of points X
[in]alphasum operator 0 or 1
[in,out]Htotal magnetic field of size nH x SM_Constants::DIM

Computes \( H(X)=alpha.H(X)+H_{op}(X) \) with

\( \Omega=\{X_i\}_{j=0,N_X-1} \) \( \Omega_c=\{P_j\}_{j=0,N_P-1} \) \( \forall X_i in \Omega, , H_{op}(X_i)= \frac{H_{dip}}{4.\pi} \displaystyle \sum_{j=0}^{j=N_P-1} \frac{1}{r_{ij}^3} \left (3 U_{ij} <U_{ij},Sj> - S_j \right )\) with \(r_{ij}=|P_j-X_i|\) and \( U_{ij}=\frac{1}{r_ij} (P_j-X_i) \)

◆ computeDipolarFieldAtSeparatedPoints()

void SM_DipolarOperator::computeDipolarFieldAtSeparatedPoints ( const SM_Material &  material,
const tInteger &  nP,
const tReal *  P,
const tReal *  S,
const tInteger &  nX,
const tReal *  X,
const tBoolean &  alpha,
tReal *  H
) const

compute the dipolar field at separated X points

Parameters
[in]material: material of the networks
[in]nPnumber of particles of the network (P,S)
[in]Pnetwork of the points on with to compute the dipolar field
[in]Sunit direction of magnetic spin moment of size nParticles x SM_Constants::DIM
[in]nXnumber of particles in X
[in]X; coordinates of points X
[in]alphasum operator 0 or 1
[in,out]Htotal magnetic field of size nH x SM_Constants::DIM

Computes \( H(X)=alpha.H(X)+H_{op}(X) \) with

\( \Omega=\{X_i\}_{j=0,N_X-1} \) \( \Omega_c=\{P_j\}_{j=0,N_P-1} \) \( \forall X_i in \Omega, , H_{op}(X_i)= \frac{H_{dip}}{4.\pi} \displaystyle \sum_{j=0}^{j=N_P-1} \frac{1}{r_{ij}^3} \left (3 U_{ij} <U_{ij},Sj> - S_j \right )\) with \(r_{ij}=|P_j-X_i|\) and \( U_{ij}=\frac{1}{r_ij} (P_j-X_i) \)

◆ ComputeSeparatedSpinDipolarEnergy()

static void SM_DipolarOperator::ComputeSeparatedSpinDipolarEnergy ( const tReal &  mu_s,
const tReal &  Edip,
const tInteger &  nParticles,
const tReal *  X,
const tReal *  S,
const tReal *  Xi,
const tReal *  Si,
tReal &  E
)
inlinestatic

compute the dipolar spin energy for a separated domain \( \Omega_j\)

Parameters
[in]mu_s: mu at spin
[in]Edip: dipolar energy factor normalisation
[in]nParticlesnumbr of particles
[in]X: coordinates of all spins
[in]Sdirection of magnetic moment of all spin
[in]Xi: coordinate of the spin i
[in]Si: dierction of the magnetic moment of the spin i
[out]Eenergy of the spin \( E_i= \mu_s^2.\frac{cEdip}{4.\pi} \displaystyle \sum_{j=0}^{j=P-1} \frac{1}{r_{ij}^3} \left ( <S_i,S_j> -3<U,Si><U,Sj> \right )\) with \(r_{ij}=|P_j-P_i|\) and \( U=\frac{1}{r_ij} (P_j-P_i)\)

◆ ComputeSpinDipolarEnergy()

static void SM_DipolarOperator::ComputeSpinDipolarEnergy ( const tReal &  mu_s,
const tReal &  Edip,
const tInteger &  nParticles,
const tReal *  X,
const tReal *  S,
const tReal *  Xi,
const tReal *  Si,
tReal &  E
)
inlinestatic

compute the dipolar spin energy

Parameters
[in]mu_s: mu at spin
[in]Edip: dipolar energy factor normalisation
[in]nParticlesnumber of particles
[in]X: coordinates of all spins
[in]Sdirection of magnetic moment of all spin
[in]Xi: coordinate of the spin i
[in]Si: dierction of the magnetic moment of the spin i
[out]Eenergy of the spin \( E_i= \mu_s^2.\frac{cEdip}{4.\pi} \displaystyle \sum_{j=0}^{j=P-1} \frac{1}{r_{ij}^3} \left ( <S_i,S_j> -3<U,Si><U,Sj> \right )\) with \(r_{ij}=|P_j-P_i|\) and \( U=\frac{1}{r_ij} (P_j-P_i)\)

◆ discretize()

virtual void SM_DipolarOperator::discretize ( const SM_Network &  network,
const SM_Material &  material
)
inlineoverridevirtual

discretize the operator on the netowek

Parameters
[in]network:operator on which the operatr is applied
[in]material: material on particles of the network

It computes \( \lambda_H=\frac{1}{4.\pi \)

Reimplemented from SM_SliceOperator.

◆ getContentsMemorySize()

virtual tMemSize SM_DipolarOperator::getContentsMemorySize ( ) const
inlinevirtual

return the memory size of the included associations

Returns
the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from SM_SliceOperator.

Reimplemented in SMOMPI_DipolarOperator.

◆ getLambdaH()

const tReal& SM_DipolarOperator::getLambdaH ( ) const
inlineprotected

get lambda H

Returns
\( lambda_H=\frac{\mu_0}{4.\pi} \) computed in discretize method

◆ getMemorySize()

virtual tMemSize SM_DipolarOperator::getMemorySize ( ) const
inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns
the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :
  • the added size of the base classes which contains:
    • the primary attributes size depends on the order: (first delare the smallest attributes size
    • all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
    • virtual inherihtance will increase of (4 or 8) bytes
  • we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from SM_LinearSliceOperator.

Reimplemented in SMOMPI_DipolarOperator.

The documentation for this class was generated from the following files:
