This class described a symmetric matrix by block of size PxP in a packed storage. More...

#include <SM_PackedBlockSymmetricMatrix.h>

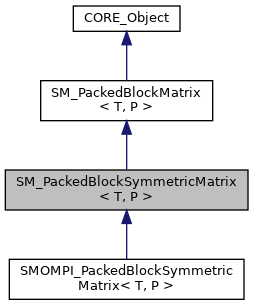

Inheritance diagram for SM_PackedBlockSymmetricMatrix< T, P >:

[legend]

Collaboration diagram for SM_PackedBlockSymmetricMatrix< T, P >:

Public Member Functions
virtual tMemSize	getMemorySize () const
	return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize	getContentsMemorySize () const
	return the memory size of the included associations More...

virtual void	reset () final
	reset the values

void	setSize (const tIndex &nRowBlocks)
	set the number or rows & columns of the blocks matrix More...

virtual void	setSize (const tIndex &nRowBlocks, const tIndex &nColBlocks) final
	set the number or rows & columns of the blocks matrix More...

virtual void	setValue (const tIndex &i, const tIndex &j, const T &v) final
	set values at row i and column j More...

virtual const T &	getValue (const tIndex &i, const tIndex &j) const final
	get values at row i and column j for reading More...

virtual T &	getValue (const tIndex &i, const tIndex &j) final
	get values at row i and column j for writing More...

std::valarray< T > &	getSupBlocksValues ()
	get the values of superior blocks of the matrix

std::valarray< T > &	getDiagonalValues ()
	get the diagonal values : Diagonal[i].I_P

const std::valarray< T > &	getSupBlocksValues () const
	get the values of superior blocks of the matrix

const std::valarray< T > &	getDiagonalValues () const
	get the diagonal values : Diagonal[i].I_P

const T &	operator() (tIndex i, tIndex j) const
	get values at row i and column j for reading More...

T &	operator() (tIndex i, tIndex j)
	get values at row i and column j for writing More...

virtual void	vectorProduct (const T vX, T vY) const
	vector product More...

virtual tString	toString () const override
	return string representaton of the operator

Public Member Functions inherited from SM_PackedBlockMatrix< T, P >
virtual void	setSize (const tInteger &nRowBlocks, const tInteger &nColBlocks)
	set the number or rows & columns of the blocks matrix More...

const tInteger &	getRowBlocksNumber () const
	get the number of row blowks

const tInteger &	getColumnBlocksNumber () const
	get the number of column blocks

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Static Public Member Functions
static CORE_UniquePointer< SelfClass >	New ()
	build a new instance of the operator More...

static tIndex	GetBlockIndex (const tIndex &ib, const tIndex &jb)
	get the value of the sub pack block at index More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	SM_PackedBlockSymmetricMatrix (void)
	create a matrix of size 0

virtual	~SM_PackedBlockSymmetricMatrix (void)
	destroy

Protected Member Functions inherited from SM_PackedBlockMatrix< T, P >
	SM_PackedBlockMatrix (void)
	create a matrix of size 0

virtual	~SM_PackedBlockMatrix (void)
	destroy

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Additional Inherited Members
Static Public Attributes inherited from SM_PackedBlockMatrix< T, P >
static constexpr tUCInt	BLOCK_SIZE =P*(P+1)/2
	size of the block in packed storage with diagonal

Static Protected Member Functions inherited from SM_PackedBlockMatrix< T, P >
static tIndex	GetPackedIndex (const tIndex &i, const tIndex &j)
	return the pack index of size Q in a column storage More...

static void	BlockVectorProduct (const T B, const T X, T Y, const T eY, const T Xi, const T Xj, T Yi, T Yj)
	compute sthe vector product of the packed symmetric block B of dimension P by X to obtain Y=B.X More...

Detailed Description

template<typename T, tUCInt P>
class SM_PackedBlockSymmetricMatrix< T, P >

This class described a symmetric matrix by block of size PxP in a packed storage.

Template Parameters

T	: type of the element of the block of the matrix
P	: size of the block \( P \times P \)

Author: Stephane Despreaux

Version: 2.0

Member Function Documentation

◆ GetBlockIndex()

template<typename T , tUCInt P>

static tIndex SM_PackedBlockSymmetricMatrix< T, P >::GetBlockIndex	(	const tIndex &	ib,
		const tIndex &	jb
	)

inlinestatic

get the value of the sub pack block at index

Parameters

[in]	ib	row-index of the block
[in]	jb	ciolumn-index of the block

◆ getContentsMemorySize()

template<typename T , tUCInt P>

virtual tMemSize SM_PackedBlockSymmetricMatrix< T, P >::getContentsMemorySize ( ) const

inlinevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from SM_PackedBlockMatrix< T, P >.

◆ getMemorySize()

template<typename T , tUCInt P>

virtual tMemSize SM_PackedBlockSymmetricMatrix< T, P >::getMemorySize ( ) const

inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from SM_PackedBlockMatrix< T, P >.

◆ getValue() [1/2]

template<typename T , tUCInt P>

virtual const T& SM_PackedBlockSymmetricMatrix< T, P >::getValue	(	const tIndex &	i,
		const tIndex &	j
	)		const

inlinefinalvirtual

get values at row i and column j for reading

Parameters

[in]	i	: index of the row
[in]	j	index of the column return value at index i,j

Implements SM_PackedBlockMatrix< T, P >.

◆ getValue() [2/2]

template<typename T , tUCInt P>

virtual T& SM_PackedBlockSymmetricMatrix< T, P >::getValue	(	const tIndex &	i,
		const tIndex &	j
	)

inlinefinalvirtual

get values at row i and column j for writing

Parameters

[in]	i	: index of the row
[in]	j	index of the column return value at index i,j

Implements SM_PackedBlockMatrix< T, P >.

◆ New()

template<typename T , tUCInt P>

static CORE_UniquePointer<SelfClass> SM_PackedBlockSymmetricMatrix< T, P >::New ( )

inlinestatic

build a new instance of the operator

Returns: an unique pointer of the operator

◆ operator()() [1/2]

template<typename T , tUCInt P>

T& SM_PackedBlockSymmetricMatrix< T, P >::operator()	(	tIndex	i,
		tIndex	j
	)

inline

get values at row i and column j for writing

Parameters

[in]	i	: index of the row
[in]	j	index of the column return value at index i,j

◆ operator()() [2/2]

template<typename T , tUCInt P>

const T& SM_PackedBlockSymmetricMatrix< T, P >::operator()	(	tIndex	i,
		tIndex	j
	)		const

inline

get values at row i and column j for reading

Parameters

[in]	i	: index of the row
[in]	j	index of the column return value at index i,j

◆ setSize() [1/2]

template<typename T , tUCInt P>

void SM_PackedBlockSymmetricMatrix< T, P >::setSize ( const tIndex & nRowBlocks )

inline

set the number or rows & columns of the blocks matrix

Parameters

[in] nRowBlocks : numbe rof blocks in a row

◆ setSize() [2/2]

template<typename T , tUCInt P>

virtual void SM_PackedBlockSymmetricMatrix< T, P >::setSize	(	const tIndex &	nRowBlocks,
		const tIndex &	nColBlocks
	)

inlinefinalvirtual

set the number or rows & columns of the blocks matrix

Parameters

[in]	nRowBlocks	: numbe rof blocks in a row
[in]	nColBlocks	: numbe rof blocks in a col must be equals to nRowBlocks

◆ setValue()

template<typename T , tUCInt P>

virtual void SM_PackedBlockSymmetricMatrix< T, P >::setValue	(	const tIndex &	i,
		const tIndex &	j,
		const T &	v
	)

inlinefinalvirtual

set values at row i and column j

Parameters

[in]	i	: index of the row
[in]	j	index of the column
[in]	v	: value

Implements SM_PackedBlockMatrix< T, P >.

◆ vectorProduct()

template<typename T , tUCInt P>

void SM_PackedBlockSymmetricMatrix< T, P >::vectorProduct	(	const T *	vX,
		T *	vY
	)		const

virtual

vector product

Parameters

[in]	vX	values of X vector
[out]	vY	: values of return vector Y=A.X

Implements SM_PackedBlockMatrix< T, P >.

Reimplemented in SMOMPI_PackedBlockSymmetricMatrix< T, P >.

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/fields/SM_PackedBlockSymmetricMatrix.h
/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/fields/SM_PackedBlockSymmetricMatrix.hpp
