This class described a matrix by packed block of size \( P \times P \) in a row storage. More...

#include <SM_PackedBlockMatrix.h>

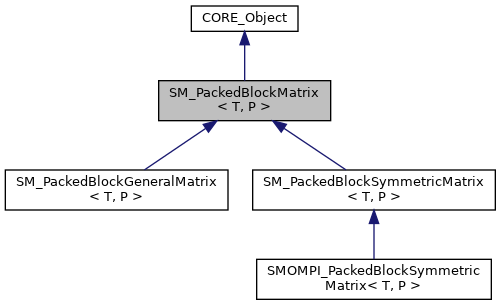

Inheritance diagram for SM_PackedBlockMatrix< T, P >:

[legend]

Collaboration diagram for SM_PackedBlockMatrix< T, P >:

Public Member Functions
virtual tMemSize	getMemorySize () const
	return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize	getContentsMemorySize () const
	return the memory size of the included associations More...

virtual void	reset ()=0
	reset the values

virtual void	setSize (const tInteger &nRowBlocks, const tInteger &nColBlocks)
	set the number or rows & columns of the blocks matrix More...

const tInteger &	getRowBlocksNumber () const
	get the number of row blowks

const tInteger &	getColumnBlocksNumber () const
	get the number of column blocks

virtual void	setValue (const tIndex &i, const tIndex &j, const T &v)=0
	set values at row i and column j More...

virtual const T &	getValue (const tIndex &i, const tIndex &j) const =0
	get values at row i and column j for reading More...

virtual T &	getValue (const tIndex &i, const tIndex &j)=0
	get values at row i and column j for writing More...

virtual void	vectorProduct (const T vX, T vY) const =0
	vector product More...

virtual tString	toString () const override
	return string representaton of the operator

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Static Public Attributes
static constexpr tUCInt	BLOCK_SIZE =P*(P+1)/2
	size of the block in packed storage with diagonal

Protected Member Functions
	SM_PackedBlockMatrix (void)
	create a matrix of size 0

virtual	~SM_PackedBlockMatrix (void)
	destroy

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Static Protected Member Functions
static tIndex	GetPackedIndex (const tIndex &i, const tIndex &j)
	return the pack index of size Q in a column storage More...

static void	BlockVectorProduct (const T B, const T X, T Y, const T eY, const T Xi, const T Xj, T Yi, T Yj)
	compute sthe vector product of the packed symmetric block B of dimension P by X to obtain Y=B.X More...

Additional Inherited Members
Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Detailed Description

template<typename T, tUCInt P>
class SM_PackedBlockMatrix< T, P >

This class described a matrix by packed block of size \( P \times P \) in a row storage.

Template Parameters

T	: type of the elemment of the block of the matrix
P	: size of the block \( P \times P \)

Author: Stephane Despreaux

Version: 2.0

Member Function Documentation

◆ BlockVectorProduct()

template<typename T , tUCInt P>

static void SM_PackedBlockMatrix< T, P >::BlockVectorProduct	(	const T *	B,
		const T *	X,
		T *	Y,
		const T *	eY,
		const T *	Xi,
		const T *	Xj,
		T *	Yi,
		T *	Yj
	)

inlinestaticprotected

compute sthe vector product of the packed symmetric block B of dimension P by X to obtain Y=B.X

Parameters

[in]	B	: begin iterator on block values of size \( P.(P+1)/2 \)
[in]	X	: begin iteration on vector values of size P
[in]	Y	: begin iterator on result vector values of size P
[in]	eY	: end iterator on result vector values of size \( eY=Y+P\)
[in,out]	Xi	constant work pointer on X
[in,out]	Xj	constant work pointer on X
[in,out]	Yi	work pointer on Y
[in,out]	Yj	work pointer on Y

◆ getContentsMemorySize()

template<typename T , tUCInt P>

virtual tMemSize SM_PackedBlockMatrix< T, P >::getContentsMemorySize ( ) const

inlinevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from CORE_Object.

Reimplemented in SM_PackedBlockSymmetricMatrix< T, P >, and SM_PackedBlockGeneralMatrix< T, P >.

◆ getMemorySize()

template<typename T , tUCInt P>

virtual tMemSize SM_PackedBlockMatrix< T, P >::getMemorySize ( ) const

inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from CORE_Object.

Reimplemented in SM_PackedBlockSymmetricMatrix< T, P >, and SM_PackedBlockGeneralMatrix< T, P >.

◆ GetPackedIndex()

template<typename T , tUCInt P>

static tIndex SM_PackedBlockMatrix< T, P >::GetPackedIndex	(	const tIndex &	i,
		const tIndex &	j
	)

inlinestaticprotected

return the pack index of size Q in a column storage

Parameters

[in]	i	: index of the row of the block of memory size Q
[in]	j	: index of the column of the block of memory size Q

Returns: (j.(j+1)/2 + i )

◆ getValue() [1/2]

template<typename T , tUCInt P>

virtual const T& SM_PackedBlockMatrix< T, P >::getValue	(	const tIndex &	i,
		const tIndex &	j
	)		const

pure virtual

get values at row i and column j for reading

Parameters

[in]	i	: index of the row i in [0,nRowBlocks x P[
[in]	j	index of the column j in [ [0,nCollocks x P[ return value at index i,j

Implemented in SM_PackedBlockSymmetricMatrix< T, P >, and SM_PackedBlockGeneralMatrix< T, P >.

◆ getValue() [2/2]

template<typename T , tUCInt P>

virtual T& SM_PackedBlockMatrix< T, P >::getValue	(	const tIndex &	i,
		const tIndex &	j
	)

pure virtual

get values at row i and column j for writing

Parameters

[in]	i	: index of the row i in [0,nRowBlocks x P[
[in]	j	index of the column j in [ [0,nCollocks x P[ return value at index i,j

Implemented in SM_PackedBlockSymmetricMatrix< T, P >, and SM_PackedBlockGeneralMatrix< T, P >.

◆ setSize()

template<typename T , tUCInt P>

virtual void SM_PackedBlockMatrix< T, P >::setSize	(	const tInteger &	nRowBlocks,
		const tInteger &	nColBlocks
	)

inlinevirtual

set the number or rows & columns of the blocks matrix

Parameters

[in]	nRowBlocks	number of blocks in rows
[in]	nColBlocks	number of blocks in columns

◆ setValue()

template<typename T , tUCInt P>

virtual void SM_PackedBlockMatrix< T, P >::setValue	(	const tIndex &	i,
		const tIndex &	j,
		const T &	v
	)

pure virtual

set values at row i and column j

Parameters

[in]	i	: index of the row i in [0,nRowBlocks x P[
[in]	j	index of the column j in [ [0,nCollocks x P[
[in]	v	: value

Implemented in SM_PackedBlockSymmetricMatrix< T, P >, and SM_PackedBlockGeneralMatrix< T, P >.

◆ vectorProduct()

template<typename T , tUCInt P>

virtual void SM_PackedBlockMatrix< T, P >::vectorProduct	(	const T *	vX,
		T *	vY
	)		const

pure virtual

vector product

Parameters

[in]	vX	values of X vector
[out]	vY	: values of return vector Y=A.X

Implemented in SMOMPI_PackedBlockSymmetricMatrix< T, P >, SM_PackedBlockSymmetricMatrix< T, P >, and SM_PackedBlockGeneralMatrix< T, P >.

The documentation for this class was generated from the following file:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/fields/SM_PackedBlockMatrix.h
