This class describes an OpenMP/MPI implemntation of symmetric matrix by block of size \( P \times P \) in a packed storage. More...
#include <SMOMPI_PackedBlockSymmetricMatrix.h>
Inheritance diagram for SMOMPI_PackedBlockSymmetricMatrix< T, P >:

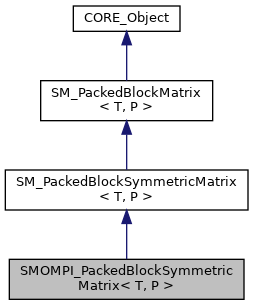

Collaboration diagram for SMOMPI_PackedBlockSymmetricMatrix< T, P >:
Public Member Functions | |
| SMOMPI_PackedBlockSymmetricMatrix (void) | |
| create a matrix of size 0 | |
| virtual | ~SMOMPI_PackedBlockSymmetricMatrix (void) |
| destroy | |
| virtual void | vectorProduct (const T *vX, T *vY) const override |
| vector product More... | |
 Public Member Functions inherited from SM_PackedBlockSymmetricMatrix< T, P > | |
| virtual tMemSize | getMemorySize () const |
| return the memory size of the class and the memory size of all its attributes/associations More... | |
| virtual tMemSize | getContentsMemorySize () const |
| return the memory size of the included associations More... | |
| virtual void | reset () final |
| reset the values | |
| void | setSize (const tIndex &nRowBlocks) |
| set the number or rows & columns of the blocks matrix More... | |
| virtual void | setSize (const tIndex &nRowBlocks, const tIndex &nColBlocks) final |
| set the number or rows & columns of the blocks matrix More... | |
| virtual void | setValue (const tIndex &i, const tIndex &j, const T &v) final |
| set values at row i and column j More... | |
| virtual const T & | getValue (const tIndex &i, const tIndex &j) const final |
| get values at row i and column j for reading More... | |
| virtual T & | getValue (const tIndex &i, const tIndex &j) final |
| get values at row i and column j for writing More... | |
| std::valarray< T > & | getSupBlocksValues () |
| get the values of superior blocks of the matrix | |
| std::valarray< T > & | getDiagonalValues () |
| get the diagonal values : Diagonal[i].I_P | |
| const std::valarray< T > & | getSupBlocksValues () const |
| get the values of superior blocks of the matrix | |
| const std::valarray< T > & | getDiagonalValues () const |
| get the diagonal values : Diagonal[i].I_P | |
| const T & | operator() (tIndex i, tIndex j) const |
| get values at row i and column j for reading More... | |
| T & | operator() (tIndex i, tIndex j) |
| get values at row i and column j for writing More... | |
| virtual tString | toString () const override |
| return string representaton of the operator | |
| Public Member Functions inherited from SM_PackedBlockMatrix< T, P > | |
| virtual void | setSize (const tInteger &nRowBlocks, const tInteger &nColBlocks) |
| set the number or rows & columns of the blocks matrix More... | |
| const tInteger & | getRowBlocksNumber () const |
| get the number of row blowks | |
| const tInteger & | getColumnBlocksNumber () const |
| get the number of column blocks | |
| Public Member Functions inherited from CORE_Object | |
| template<class T > | |
| std::shared_ptr< T > | getSharedPointer () |
| return the shared pointer for this More... | |
| template<class T > | |
| std::shared_ptr< const T > | getConstSharedPointer () const |
| return a const shared pointer for this More... | |
| template<class T > | |
| tBoolean | isInstanceOf () const |
| test if the clas T is an instance of this class More... | |
| tString | getClassName () const |
| return the name of the class More... | |
| tString | getPointerString () const |
| retrun the pointer of the class as a string More... | |
| tString | getIdentityString () const |
| retrun the string identification of the class More... | |
Static Public Member Functions | |
| static CORE_UniquePointer< SelfClass > | New () |
| build a new instance of the operator More... | |
| Static Public Member Functions inherited from SM_PackedBlockSymmetricMatrix< T, P > | |
| static CORE_UniquePointer< SelfClass > | New () |
| build a new instance of the operator More... | |
| static tIndex | GetBlockIndex (const tIndex &ib, const tIndex &jb) |
| get the value of the sub pack block at index More... | |
| Static Public Member Functions inherited from CORE_Object | |
| static tBoolean | EnableMemoryStack (const tBoolean &isMemoryChecked) |
| enable the memory stack More... | |
| static void | EnableMemoryStack () |
| enable the memory stack | |
| static void | DisableMemoryStack () |
| disable the memory stack | |
| static tBoolean | IsMemoryStackEnabled () |
| return trur if the memory stack is enabled | |
| static tString | MemoryStackToString () |
| get the memory stack in string More... | |
| static tIndex | GetRegisteredClassesNumber () |
| get the memory stack in string More... | |
Additional Inherited Members | |
| Static Public Attributes inherited from SM_PackedBlockMatrix< T, P > | |
| static constexpr tUCInt | BLOCK_SIZE =P*(P+1)/2 |
| size of the block in packed storage with diagonal | |
| Protected Member Functions inherited from SM_PackedBlockSymmetricMatrix< T, P > | |
| SM_PackedBlockSymmetricMatrix (void) | |
| create a matrix of size 0 | |
| virtual | ~SM_PackedBlockSymmetricMatrix (void) |
| destroy | |
| Protected Member Functions inherited from SM_PackedBlockMatrix< T, P > | |
| SM_PackedBlockMatrix (void) | |
| create a matrix of size 0 | |
| virtual | ~SM_PackedBlockMatrix (void) |
| destroy | |
| Protected Member Functions inherited from CORE_Object | |
| CORE_Object () | |
| build an instance of the object | |
| virtual | ~CORE_Object () |
| destroy the instance of object std | |
| Static Protected Member Functions inherited from SM_PackedBlockMatrix< T, P > | |
| static tIndex | GetPackedIndex (const tIndex &i, const tIndex &j) |
| return the pack index of size Q in a column storage More... | |
| static void | BlockVectorProduct (const T *B, const T *X, T *Y, const T *eY, const T *Xi, const T *Xj, T *Yi, T *Yj) |
| compute sthe vector product of the packed symmetric block B of dimension P by X to obtain Y=B.X More... | |
Detailed Description
template<typename T, tUCInt P>
class SMOMPI_PackedBlockSymmetricMatrix< T, P >
This class describes an OpenMP/MPI implemntation of symmetric matrix by block of size \( P \times P \) in a packed storage.
- Template Parameters
-
T : type of the element of the block of the matrix P : size of the block \( P \times P \)
- Version
- 2.0
Member Function Documentation
◆ New()
template<typename T , tUCInt P>
|
inlinestatic |
build a new instance of the operator
- Returns
- an unique pointer of the operator
◆ vectorProduct()
template<typename T , tUCInt P>
|
inlineoverridevirtual |
vector product
- Parameters
-
[in] X values of X vector [out] Y : values of return vector Y=A.X
Reimplemented from SM_PackedBlockSymmetricMatrix< T, P >.
The documentation for this class was generated from the following files:
- /home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/fields/mpi/SMOMPI_PackedBlockSymmetricMatrix.h
- /home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/operators/fields/mpi/SMOMPI_PackedBlockSymmetricMatrix.hpp
