This class is a simulation of one Monte carlo trajectory class for Stoch Magnet package. The magnetic moment direction change is defined by \( \sigma=\frac{2}{25}*\left( \frac{T*k_B}{\mu_B} \right))^{\frac{1}{5}} \). More...

#include <SM_MonteCarloSystem.h>

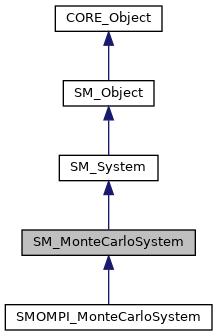

Inheritance diagram for SM_MonteCarloSystem:

[legend]

Collaboration diagram for SM_MonteCarloSystem:

[legend]

Public Member Functions
virtual tMemSize	getMemorySize () const
	return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize	getContentsMemorySize () const
	return the memory size of the included associations More...

virtual void	setNoiseTemperature (const tReal &T) override
	set the noise as a temperature in Kelvin More...

const tReal &	getNoiseRate () const
	get the noise rate constant More...

const tReal &	getEnergyScaling () const
	get the energy scaling More...

const tIndex &	getRejectsNumber () const
	get the rejects number More...

const tIndex &	getMovesNumber () const
	get the moves number More...

virtual void	normalize (const tBoolean &isAdimensionized) override
	normalize the system More...

virtual void	discretize () override
	discretize the system

virtual tULLInt	getGeneratedRandomNumbers () const override
	get the generated of random number within a stochastic run

template<class StochOutputImplement >
tBoolean	deterministicRun (const tIndex &steppersNumber, SM_StochasticOutput< StochOutputImplement > &data)
	compute deterministic running of steppers number of the system with computing statistics More...

tBoolean	stochasticRun (const tIndex &steppersNumber, SM_MultiStochasticFunctionsInterface &sfs)
	compute the steppers number of system for reaching the relaxed state More...

template<class StochOutputImplement >
tBoolean	stochasticRun (const tIndex &steppersNumber, SM_MultiStochasticFunctionsInterface &sfs, SM_StochasticOutput< StochOutputImplement > &statistics)
	compute steppers number with statisics More...

template<class StochFunctionsImplement >
tBoolean	stochasticRunWithSCStochasticFunctions (const tIndex &steppersNumber, SM_MultiStochasticFunctions< StochFunctionsImplement > &sfs)
	compute the relaxation process by calling only virtual methods More...

template<class StochFunctionsImplement , class StochOutputImplement >
tBoolean	stochasticRunWithSCStochasticFunctions (const tIndex &steppersNumber, SM_MultiStochasticFunctions< StochFunctionsImplement > &sfs, SM_StochasticOutput< StochOutputImplement > &statistics)
	compute the relaxation process by calling only virtual methods More...

virtual tString	toString () const override
	turn the class into a string representation More...

Public Member Functions inherited from SM_System
void	setNetwork (CORE_UniquePointer< SM_Network > net)
	set the network More...

const SM_Network &	getNetwork () const
	get the network More...

SM_Network &	getNetwork ()
	get the network More...

tBoolean	hasNetwork () const
	return true if the system has a network More...

const SM_Material &	getMaterial () const
	get the material of the network More...

SM_Material &	getMaterial ()
	get the material of the network More...

void	setInitialMagneticMomentDirections (const std::valarray< tReal > &S0)
	set the initial unit direction of spins More...

void	setInitialMagneticMomentDirections (const SM_RealField &S0)
	set the initial unit direction of spins More...

void	setInitialMagneticMomentDirections (const tIndex &N, const std::array< tReal, SM_Constants::DIM > &S0)
	set the initial unit direction of spins More...

virtual tBoolean	updateInitialMagneticMomentDirections (const SM_RealField &S0)
	update the initial unit direction of spins More...

const SM_RealField &	getInitialMagneticMomentDirections () const
	get the initial unit direction of spins More...

SM_RealField &	getInitialMagneticMomentDirections ()
	get the initial unit direction of spins for writting More...

const SM_RealField &	getMagneticMomentDirections () const
	get the unit direction of spins at time More...

SM_RealField &	getMagneticMomentDirections ()
	get the unit direction of spins at time for writting More...

virtual tBoolean	initializeMagneticMomentDirections ()
	initialize magnetic moments direction More...

void	addOperator (CORE_UniquePointer< SM_Operator > op)
	add operator More...

const SM_SliceOperator *	getOperator (const tString &name) const
	get the operator with name More...

SM_SliceOperator *	getOperator (const tString &name)
	get the operator with name More...

void	copyOperators (const SM_System &system)
	copy the operator More...

const std::map< tString, CORE_UniquePointer< SM_Operator > > &	getOperators () const
	get the operators More...

std::map< tString, CORE_UniquePointer< SM_Operator > > &	getOperators ()
	get the operators More...

tIndex	getOperatorsNumber () const
	get the operators number More...

void	getOperatorsName (std::vector< tString > &names) const
	get the operator names More...

virtual void	setStochasticNoise (const tReal &eps)
	set the stochastic noise without dimension More...

const tReal &	getStochasticNoise () const
	get the stochastic noise without dimension More...

const tReal &	getNoiseTemperature () const
	get the noise temperature in Kelvin More...

const tIndex &	getStepIndex () const
	get the step index More...

tIndex &	getStepIndex ()
	get the step index More...

virtual void	sumOverNetworks (const int &rootNetwork, tIndex &n, const tIndex &nValues, tReal *values) const
	sum the values of all network More...

void	computeMagneticMomentDirectionsSumOverNetworks (const int &rootNetwork, std::array< tReal, SM_Constants::DIM > &sumS) const
	compute the sum over the domain of magnetic moment dierctions More...

void	computeMagneticMomentDirectionsMeanOverNetworks (const int &rootNetwork, std::array< tReal, SM_Constants::DIM > &meanS) const
	compute the mean over the domain of magneticmoment directions More...

void	computeMagneticMomentDirectionsSum (const tInteger &start, const tInteger &end, std::array< tReal, SM_Constants::DIM > &sumS) const
	compute the sum of magnetic moment directions over the network More...

void	updateOperatorsState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S)
	update the operators state before computeing magnetic field More...

void	computeMagneticField (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S, SM_RealField &H) const
	compute the magnetic field at time step index t by calling the virtual method SM_Operator::computeMagneticField() More...

tReal	computeSpinEnergy (const tIndex &i, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the spin of the system More...

tReal	computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the spin of the system More...

const tReal &	computeEnergies (std::valarray< tReal > &energies) const
	compute the energies per operators More...

const tReal &	computeEnergies (const tIndex &timeIndex, std::valarray< tReal > &energies) const
	compute the energies per operators More...

Public Member Functions inherited from SM_Object
	SM_Object (void)
	create

virtual	~SM_Object (void)
	destroy

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Protected Member Functions
	SM_MonteCarloSystem (void)
	create a class

virtual	~SM_MonteCarloSystem (void)
	destroy the class

tIndex &	getMovesNumber ()
	get the move number More...

tIndex &	getRejectsNumber ()
	get the rejects number More...

virtual void	updateStateForNextStep (SM_RealField &St)=0
	update the state for next step More...

void	MCStep (SM_MultiStochasticFunctionsInterface &multiStochasticFunctions, const SM_Material &material, const SM_Network &network, SM_RealField &S, const tIndex &stepIndex, const tReal &alpha, const tReal &sigma, tIndex &nMoves, tIndex &nRejects)
	stepper step More...

template<class StochFunctionsImplement >
void	MCStepWithSCStochasticFunctions (SM_MultiStochasticFunctions< StochFunctionsImplement > &multiStochasticFunctions, const SM_Material &material, const SM_Network &network, SM_RealField &S, const tIndex &stepIndex, const tReal &alpha, const tReal &sigma, tIndex &nMoves, tIndex &nRejects)
	stepper step with templated stochastic function More...

template<class StochFunctionsImplement >
void	randomTrialMoveWithSCStochasticFunctions (SM_StochasticFunctions< StochFunctionsImplement > &stochasticFunctions, const tReal &sigma, tReal bS, const tReal eS) const
	make a trial move More...

void	randomTrialMove (SM_StochasticFunctionsInterface &stochasticFunctions, const tReal &sigma, tReal bS, const tReal eS) const
	make a trial move More...

Protected Member Functions inherited from SM_System
	SM_System (void)
	create a class

virtual	~SM_System (void)
	destroy the class

tReal	computeEnergy (const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the system More...

tReal	computeEnergy (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the system More...

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Additional Inherited Members
Static Public Member Functions inherited from SM_System
static void	ComputeFieldSum (const tInteger &start, const tInteger &end, const SM_RealField &F, std::array< tReal, SM_Constants::DIM > &sumF)
	compute the sum of F over the network More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Detailed Description

This class is a simulation of one Monte carlo trajectory class for Stoch Magnet package. The magnetic moment direction change is defined by \( \sigma=\frac{2}{25}*\left( \frac{T*k_B}{\mu_B} \right))^{\frac{1}{5}} \).

The general algorithm of Monte Carlo is

Author: Stephane Despreaux

Version: 2.0

Member Function Documentation

◆ deterministicRun()

template<class StochOutputImplement >

tBoolean SM_MonteCarloSystem::deterministicRun	(	const tIndex &	steppersNumber,
		SM_StochasticOutput< StochOutputImplement > &	data
	)

inline

compute deterministic running of steppers number of the system with computing statistics

Template Parameters

StochOutputImplement : implemented class of SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	data	stochastic data to compute

◆ getContentsMemorySize()

virtual tMemSize SM_MonteCarloSystem::getContentsMemorySize ( ) const

inlinevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from SM_System.

Reimplemented in SMOMPI_MonteCarloSystem.

◆ getEnergyScaling()

const tReal& SM_MonteCarloSystem::getEnergyScaling ( ) const

inline

get the energy scaling

Returns: \( \alpha= \frac{\bar E }{k_B.T} \)

◆ getMemorySize()

virtual tMemSize SM_MonteCarloSystem::getMemorySize ( ) const

inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from SM_System.

Reimplemented in SMOMPI_MonteCarloSystem.

◆ getMovesNumber() [1/2]

tIndex& SM_MonteCarloSystem::getMovesNumber ( )

inlineprotected

get the move number

Returns: the nuumber of moves

◆ getMovesNumber() [2/2]

const tIndex& SM_MonteCarloSystem::getMovesNumber ( ) const

inline

get the moves number

Returns: the number of accepted spin moment direction change

◆ getNoiseRate()

const tReal& SM_MonteCarloSystem::getNoiseRate ( ) const

inline

get the noise rate constant

Returns: \( \sigma=\frac{2}{25}*\left( \frac{T*k_B}{\mu_B} \right))^{\frac{1}{5}} \)

◆ getRejectsNumber() [1/2]

tIndex& SM_MonteCarloSystem::getRejectsNumber ( )

inlineprotected

get the rejects number

Returns: the nuumber of rejected moves

◆ getRejectsNumber() [2/2]

const tIndex& SM_MonteCarloSystem::getRejectsNumber ( ) const

inline

get the rejects number

Returns: the number of rejected the spin moment direction change

◆ MCStep()

void SM_MonteCarloSystem::MCStep	(	SM_MultiStochasticFunctionsInterface &	multiStochasticFunctions,
		const SM_Material &	material,
		const SM_Network &	network,
		SM_RealField &	S,
		const tIndex &	stepIndex,
		const tReal &	alpha,
		const tReal &	sigma,
		tIndex &	nMoves,
		tIndex &	nRejects
	)

protected

stepper step

Parameters

[in]	multiStochasticFunctions	: stochatic functions
[in]	material	: material of the particles
[in]	network	: particles network
[in,out]	S	: magnetic moment directions of the particles
[in]	stepIndex	: index of the step of the trajectory
[in]	alpha	: \( \frac{\bar E}{k_B.T} \) probability of move
[in]	sigma	: min probability to accept the move : \( \sigma=\frac{2}{25}\left( \frac{Tk_B}{\mu_B} \right))^{\frac{1}{5}} \)
[out]	nMoves	number of moves
[out]	nRejects	: number of rejected moves

◆ MCStepWithSCStochasticFunctions()

template<class StochFunctionsImplement >

void SM_MonteCarloSystem::MCStepWithSCStochasticFunctions	(	SM_MultiStochasticFunctions< StochFunctionsImplement > &	multiStochasticFunctions,
		const SM_Material &	material,
		const SM_Network &	network,
		SM_RealField &	S,
		const tIndex &	stepIndex,
		const tReal &	alpha,
		const tReal &	sigma,
		tIndex &	nMoves,
		tIndex &	nRejects
	)

inlineprotected

stepper step with templated stochastic function

Template Parameters

StochFunctionsImplement : implemented class SM_StochasticFunctions

Parameters

[in]	multiStochasticFunctions	: stochatic functions
[in]	material	: material of the particles
[in]	network	: particles network
[in,out]	S	: magnetic moment directions of the particles
[in]	stepIndex	: index of the step of the trajectory
[in]	alpha	: \( \frac{\bar E}{k_B.T} \) probability of move
[in]	sigma	: min probability to accept the move : \( \sigma=\frac{2}{25}\left( \frac{Tk_B}{\mu_B} \right))^{\frac{1}{5}} \)
[out]	nMoves	number of moves
[out]	nRejects	: number of rejected moves

◆ normalize()

virtual void SM_MonteCarloSystem::normalize ( const tBoolean & isAdimensionized )

inlineoverridevirtual

normalize the system

Parameters

[in] isAdimensionized true to adimensionize the system

Reimplemented from SM_System.

◆ randomTrialMove()

void SM_MonteCarloSystem::randomTrialMove	(	SM_StochasticFunctionsInterface &	stochasticFunctions,
		const tReal &	sigma,
		tReal *	bS,
		const tReal *	eS
	)		const

protected

make a trial move

Parameters

[in,out]	stochasticFunctions	: normal stochastic function
[in]	sigma	amplitude of the trial move
[in,out]	bS	: begin iterator of direction at particle
[in]	eS	: end iterator of direction at particle

the trial move is computed as folow

compute an uniform random U in [0,1] and do either
trial moves:
- a spin flip move : \( S^'_i=-S_i \)
- a gaussian trial move : \( S_p=S_i+\sigma. N(0,1) and S^'_i=S_p/|S_p| with sigma=\frac{2}{25}.(\frac{k_B.T}{\mu_B})^{1/5} \)
- a random point : \( S_p=N(0,1) and S^'_i=S_p/|S_p| \)

◆ randomTrialMoveWithSCStochasticFunctions()

template<class StochFunctionsImplement >

void SM_MonteCarloSystem::randomTrialMoveWithSCStochasticFunctions	(	SM_StochasticFunctions< StochFunctionsImplement > &	stochasticFunctions,
		const tReal &	sigma,
		tReal *	bS,
		const tReal *	eS
	)		const

inlineprotected

make a trial move

Template Parameters

StochFunctionsImplement : implemented class SM_StochasticFunctions

Parameters

[in,out]	stochasticFunctions	: normal stochastic function
[in]	sigma	amplitude of the trial move
[in,out]	bS	: begin iterator of direction at particle
[in]	eS	: end iterator of direction at particle

the trial move is computed as folow

compute an uniform random U in [0,1] and do either
trial moves:
a spin flip move : \( S^'_i=-S_i \)
- a gaussian trial move : \( S_p=S_i+\sigma.N(0,1) \) and \( S^'_i=S_p/|S_p| \) with \( sigma=\frac{2}{25}.(\frac{k_B.T}{\mu_B})^{1/5} \)
- a random point : \( S_p=N(0,1) and S^'_i=S_p/|S_p| \)

◆ setNoiseTemperature()

virtual void SM_MonteCarloSystem::setNoiseTemperature ( const tReal & T )

inlineoverridevirtual

set the noise as a temperature in Kelvin

Parameters

[in]

T

: temperature It computes noise attributes:

\( \alpha= \frac{\delta E }{k_B.T} \)
\( \sigma=\frac{2}{25}*\left( \frac{T*k_B}{\mu_B} \right))^{\frac{1}{5}} \)

Reimplemented from SM_System.

◆ stochasticRun() [1/2]

tBoolean SM_MonteCarloSystem::stochasticRun	(	const tIndex &	steppersNumber,
		SM_MultiStochasticFunctionsInterface &	sfs
	)

compute the steppers number of system for reaching the relaxed state

Parameters

[in]	steppersNumber	number of steppers to run
[in]	sfs	: stochastic function to generate random numbers

◆ stochasticRun() [2/2]

template<class StochOutputImplement >

tBoolean SM_MonteCarloSystem::stochasticRun	(	const tIndex &	steppersNumber,
		SM_MultiStochasticFunctionsInterface &	sfs,
		SM_StochasticOutput< StochOutputImplement > &	statistics
	)

inline

compute steppers number with statisics

Template Parameters

StochOutputImplement : implemented class of SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	sfs	: stochastic functions to generate random numbers
[in,out]	statistics	stochastic data to compute

◆ stochasticRunWithSCStochasticFunctions() [1/2]

template<class StochFunctionsImplement >

tBoolean SM_MonteCarloSystem::stochasticRunWithSCStochasticFunctions	(	const tIndex &	steppersNumber,
		SM_MultiStochasticFunctions< StochFunctionsImplement > &	sfs
	)

inline

compute the relaxation process by calling only virtual methods

Template Parameters

StochFunctionsImplement : implemented class SM_StochasticFunctions

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	sfs	: stochastic functions to generate random numbers

◆ stochasticRunWithSCStochasticFunctions() [2/2]

template<class StochFunctionsImplement , class StochOutputImplement >

tBoolean SM_MonteCarloSystem::stochasticRunWithSCStochasticFunctions	(	const tIndex &	steppersNumber,
		SM_MultiStochasticFunctions< StochFunctionsImplement > &	sfs,
		SM_StochasticOutput< StochOutputImplement > &	statistics
	)

inline

compute the relaxation process by calling only virtual methods

Template Parameters

StochFunctionsImplement	: implemented class SM_StochasticFunctions
StochOutputImplement	: implemented class of SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	sfs	: stochastic functions to generate random numbers
[in,out]	statistics	stochastic data to compute

◆ toString()

tString SM_MonteCarloSystem::toString ( ) const

overridevirtual

turn the class into a string representation

Returns: a string representation of the class

Reimplemented from SM_System.

◆ updateStateForNextStep()

virtual void SM_MonteCarloSystem::updateStateForNextStep ( SM_RealField & St )

protectedpure virtual

update the state for next step

Parameters

[in,out] St St feild used to update state

Implemented in SMOMPI_MonteCarloSystem.

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/monteCarlo/core/SM_MonteCarloSystem.h
/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/monteCarlo/core/SM_MonteCarloSystem.hpp
/home/despreau/Developpement/CPP/devcpp20/src/stochmagnet/monteCarlo/core/SM_MonteCarloSystem.cpp

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ deterministicRun()

◆ getContentsMemorySize()

◆ getEnergyScaling()

◆ getMemorySize()

◆ getMovesNumber() [1/2]

◆ getMovesNumber() [2/2]

◆ getNoiseRate()

◆ getRejectsNumber() [1/2]

◆ getRejectsNumber() [2/2]

◆ MCStep()

◆ MCStepWithSCStochasticFunctions()

◆ normalize()

◆ randomTrialMove()

◆ randomTrialMoveWithSCStochasticFunctions()

◆ setNoiseTemperature()

◆ stochasticRun() [1/2]

◆ stochasticRun() [2/2]

◆ stochasticRunWithSCStochasticFunctions() [1/2]

◆ stochasticRunWithSCStochasticFunctions() [2/2]

◆ toString()

◆ updateStateForNextStep()
