This class is a MPI implementation of simulation of a Monte Carlo method. More...
#include <SMOMPI_MonteCarloSystem.h>
Inheritance diagram for SMOMPI_MonteCarloSystem:

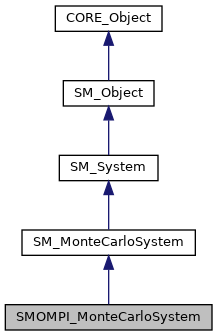

Collaboration diagram for SMOMPI_MonteCarloSystem:
Public Member Functions | |
| virtual tMemSize | getMemorySize () const |
| return the memory size of the class and the memory size of all its attributes/associations More... | |
| virtual tMemSize | getContentsMemorySize () const |
| return the memory size of the included associations More... | |
| tBoolean | initializeMagneticMomentDirections () final |
| initialize magnetic moments of the particles of the network | |
 Public Member Functions inherited from SM_MonteCarloSystem | |
| virtual void | setNoiseTemperature (const tReal &T) override |
| set the noise as a temperature in Kelvin More... | |
| const tReal & | getNoiseRate () const |
| get the noise rate constant More... | |
| const tReal & | getEnergyScaling () const |
| get the energy scaling More... | |
| const tIndex & | getRejectsNumber () const |
| get the rejects number More... | |
| const tIndex & | getMovesNumber () const |
| get the moves number More... | |
| virtual void | normalize (const tBoolean &isAdimensionized) override |
| normalize the system More... | |
| virtual void | discretize () override |
| discretize the system | |
| virtual tULLInt | getGeneratedRandomNumbers () const override |
| get the generated of random number within a stochastic run | |
| template<class StochOutputImplement > | |
| tBoolean | deterministicRun (const tIndex &steppersNumber, SM_StochasticOutput< StochOutputImplement > &data) |
| compute deterministic running of steppers number of the system with computing statistics More... | |
| tBoolean | stochasticRun (const tIndex &steppersNumber, SM_MultiStochasticFunctionsInterface &sfs) |
| compute the steppers number of system for reaching the relaxed state More... | |
| template<class StochOutputImplement > | |
| tBoolean | stochasticRun (const tIndex &steppersNumber, SM_MultiStochasticFunctionsInterface &sfs, SM_StochasticOutput< StochOutputImplement > &statistics) |
| compute steppers number with statisics More... | |
| template<class StochFunctionsImplement > | |
| tBoolean | stochasticRunWithSCStochasticFunctions (const tIndex &steppersNumber, SM_MultiStochasticFunctions< StochFunctionsImplement > &sfs) |
| compute the relaxation process by calling only virtual methods More... | |
| template<class StochFunctionsImplement , class StochOutputImplement > | |
| tBoolean | stochasticRunWithSCStochasticFunctions (const tIndex &steppersNumber, SM_MultiStochasticFunctions< StochFunctionsImplement > &sfs, SM_StochasticOutput< StochOutputImplement > &statistics) |
| compute the relaxation process by calling only virtual methods More... | |
| virtual tString | toString () const override |
| turn the class into a string representation More... | |
| Public Member Functions inherited from SM_System | |
| void | setNetwork (CORE_UniquePointer< SM_Network > net) |
| set the network More... | |
| const SM_Network & | getNetwork () const |
| get the network More... | |
| SM_Network & | getNetwork () |
| get the network More... | |
| tBoolean | hasNetwork () const |
| return true if the system has a network More... | |
| const SM_Material & | getMaterial () const |
| get the material of the network More... | |
| SM_Material & | getMaterial () |
| get the material of the network More... | |
| void | setInitialMagneticMomentDirections (const std::valarray< tReal > &S0) |
| set the initial unit direction of spins More... | |
| void | setInitialMagneticMomentDirections (const SM_RealField &S0) |
| set the initial unit direction of spins More... | |
| void | setInitialMagneticMomentDirections (const tIndex &N, const std::array< tReal, SM_Constants::DIM > &S0) |
| set the initial unit direction of spins More... | |
| virtual tBoolean | updateInitialMagneticMomentDirections (const SM_RealField &S0) |
| update the initial unit direction of spins More... | |
| const SM_RealField & | getInitialMagneticMomentDirections () const |
| get the initial unit direction of spins More... | |
| SM_RealField & | getInitialMagneticMomentDirections () |
| get the initial unit direction of spins for writting More... | |
| const SM_RealField & | getMagneticMomentDirections () const |
| get the unit direction of spins at time More... | |
| SM_RealField & | getMagneticMomentDirections () |
| get the unit direction of spins at time for writting More... | |
| void | addOperator (CORE_UniquePointer< SM_Operator > op) |
| add operator More... | |
| const SM_SliceOperator * | getOperator (const tString &name) const |
| get the operator with name More... | |
| SM_SliceOperator * | getOperator (const tString &name) |
| get the operator with name More... | |
| void | copyOperators (const SM_System &system) |
| copy the operator More... | |
| const std::map< tString, CORE_UniquePointer< SM_Operator > > & | getOperators () const |
| get the operators More... | |
| std::map< tString, CORE_UniquePointer< SM_Operator > > & | getOperators () |
| get the operators More... | |
| tIndex | getOperatorsNumber () const |
| get the operators number More... | |
| void | getOperatorsName (std::vector< tString > &names) const |
| get the operator names More... | |
| virtual void | setStochasticNoise (const tReal &eps) |
| set the stochastic noise without dimension More... | |
| const tReal & | getStochasticNoise () const |
| get the stochastic noise without dimension More... | |
| const tReal & | getNoiseTemperature () const |
| get the noise temperature in Kelvin More... | |
| const tIndex & | getStepIndex () const |
| get the step index More... | |
| tIndex & | getStepIndex () |
| get the step index More... | |
| virtual void | sumOverNetworks (const int &rootNetwork, tIndex &n, const tIndex &nValues, tReal *values) const |
| sum the values of all network More... | |
| void | computeMagneticMomentDirectionsSumOverNetworks (const int &rootNetwork, std::array< tReal, SM_Constants::DIM > &sumS) const |
| compute the sum over the domain of magnetic moment dierctions More... | |
| void | computeMagneticMomentDirectionsMeanOverNetworks (const int &rootNetwork, std::array< tReal, SM_Constants::DIM > &meanS) const |
| compute the mean over the domain of magneticmoment directions More... | |
| void | computeMagneticMomentDirectionsSum (const tInteger &start, const tInteger &end, std::array< tReal, SM_Constants::DIM > &sumS) const |
| compute the sum of magnetic moment directions over the network More... | |
| void | updateOperatorsState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) |
| update the operators state before computeing magnetic field More... | |
| void | computeMagneticField (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S, SM_RealField &H) const |
| compute the magnetic field at time step index t by calling the virtual method SM_Operator::computeMagneticField() More... | |
| tReal | computeSpinEnergy (const tIndex &i, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const |
| compute the energy of the spin of the system More... | |
| tReal | computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const |
| compute the energy of the spin of the system More... | |
| const tReal & | computeEnergies (std::valarray< tReal > &energies) const |
| compute the energies per operators More... | |
| const tReal & | computeEnergies (const tIndex &timeIndex, std::valarray< tReal > &energies) const |
| compute the energies per operators More... | |
| Public Member Functions inherited from SM_Object | |
| SM_Object (void) | |
| create | |
| virtual | ~SM_Object (void) |
| destroy | |
| Public Member Functions inherited from CORE_Object | |
| template<class T > | |
| std::shared_ptr< T > | getSharedPointer () |
| return the shared pointer for this More... | |
| template<class T > | |
| std::shared_ptr< const T > | getConstSharedPointer () const |
| return a const shared pointer for this More... | |
| template<class T > | |
| tBoolean | isInstanceOf () const |
| test if the clas T is an instance of this class More... | |
| tString | getClassName () const |
| return the name of the class More... | |
| tString | getPointerString () const |
| retrun the pointer of the class as a string More... | |
| tString | getIdentityString () const |
| retrun the string identification of the class More... | |
Static Public Member Functions | |
| static CORE_UniquePointer< Self > | New () |
| build a new instance of a system More... | |
| Static Public Member Functions inherited from SM_System | |
| static void | ComputeFieldSum (const tInteger &start, const tInteger &end, const SM_RealField &F, std::array< tReal, SM_Constants::DIM > &sumF) |
| compute the sum of F over the network More... | |
| Static Public Member Functions inherited from CORE_Object | |
| static tBoolean | EnableMemoryStack (const tBoolean &isMemoryChecked) |
| enable the memory stack More... | |
| static void | EnableMemoryStack () |
| enable the memory stack | |
| static void | DisableMemoryStack () |
| disable the memory stack | |
| static tBoolean | IsMemoryStackEnabled () |
| return trur if the memory stack is enabled | |
| static tString | MemoryStackToString () |
| get the memory stack in string More... | |
| static tIndex | GetRegisteredClassesNumber () |
| get the memory stack in string More... | |
Protected Member Functions | |
| SMOMPI_MonteCarloSystem (void) | |
| create a class | |
| virtual | ~SMOMPI_MonteCarloSystem (void) |
| destroy the class | |
| virtual void | updateStateForNextStep (SM_RealField &St) final |
| update the state for next step More... | |
| Protected Member Functions inherited from SM_MonteCarloSystem | |
| SM_MonteCarloSystem (void) | |
| create a class | |
| virtual | ~SM_MonteCarloSystem (void) |
| destroy the class | |
| tIndex & | getMovesNumber () |
| get the move number More... | |
| tIndex & | getRejectsNumber () |
| get the rejects number More... | |
| void | MCStep (SM_MultiStochasticFunctionsInterface &multiStochasticFunctions, const SM_Material &material, const SM_Network &network, SM_RealField &S, const tIndex &stepIndex, const tReal &alpha, const tReal &sigma, tIndex &nMoves, tIndex &nRejects) |
| stepper step More... | |
| template<class StochFunctionsImplement > | |
| void | MCStepWithSCStochasticFunctions (SM_MultiStochasticFunctions< StochFunctionsImplement > &multiStochasticFunctions, const SM_Material &material, const SM_Network &network, SM_RealField &S, const tIndex &stepIndex, const tReal &alpha, const tReal &sigma, tIndex &nMoves, tIndex &nRejects) |
| stepper step with templated stochastic function More... | |
| template<class StochFunctionsImplement > | |
| void | randomTrialMoveWithSCStochasticFunctions (SM_StochasticFunctions< StochFunctionsImplement > &stochasticFunctions, const tReal &sigma, tReal *bS, const tReal *eS) const |
| make a trial move More... | |
| void | randomTrialMove (SM_StochasticFunctionsInterface &stochasticFunctions, const tReal &sigma, tReal *bS, const tReal *eS) const |
| make a trial move More... | |
| Protected Member Functions inherited from SM_System | |
| SM_System (void) | |
| create a class | |
| virtual | ~SM_System (void) |
| destroy the class | |
| tReal | computeEnergy (const SM_Network &network, const SM_Material &material, const SM_RealField &S) const |
| compute the energy of the system More... | |
| tReal | computeEnergy (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const |
| compute the energy of the system More... | |
| Protected Member Functions inherited from CORE_Object | |
| CORE_Object () | |
| build an instance of the object | |
| virtual | ~CORE_Object () |
| destroy the instance of object std | |
Detailed Description
This class is a MPI implementation of simulation of a Monte Carlo method.
It implements the methods
- initializeMagenticMomentsDirections() : make mpi communication to set the magnetic moment direction on halo particles of the network of the core from the magnetic moment dierction of the corresponding bound particles in its connected cores by calling the method SMOMPI_Network::mpiExchangeFieldValues()
- updateStateForNextStep() : make mpi communication to set the magnetic moment direction on halo particles of the network of the core from the magnetic moment dierction of the corresponding bound particles in its connected cores by calling the method SMOMPI_Network::mpiExchangeFieldValues()
The mpi algorithm of monte Carlo is
- Version
- 2.0
Member Function Documentation
◆ getContentsMemorySize()
|
inlinevirtual |
return the memory size of the included associations
- Returns
- the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb
Reimplemented from SM_MonteCarloSystem.
◆ getMemorySize()
|
inlinevirtual |
return the memory size of the class and the memory size of all its attributes/associations
- Returns
- the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :
- the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
- we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo
- the added size of the base classes which contains:
Reimplemented from SM_MonteCarloSystem.
◆ New()
|
inlinestatic |
build a new instance of a system
- Returns
- an unique pointer of system
◆ updateStateForNextStep()
|
finalprotectedvirtual |
update the state for next step
- Parameters
-
[in] St update St for next step Do othing in OPenMP version
Implements SM_MonteCarloSystem.
The documentation for this class was generated from the following files:
- /home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/monteCarlo/mpi/SMOMPI_MonteCarloSystem.h
- /home/despreau/Developpement/CPP/devcpp20/src/stochmagnet/monteCarlo/mpi/SMOMPI_MonteCarloSystem.cpp
