network package of Stoch Magnet module

network package of Stoch Magnet module contains network classes

network package of Stoch Magnet module contains network classes

The class contains :

• SM_NetworkGridBuilder is the main interface to build a grid of unit cells of SM_CrystalStructure . It contains the static methods for managing a grid of unit cells.
• SM_CrystalStructuresGridBuilder is the interface to define the buildDomainNetwork() method for OMP/MPI implementations.
• SM_DomainGridBuilder is the interface to build a mask to define if unit cells belongs to the domain. An unit cell belong to a domain if its mass center is in the domain. It is the base class of
  • SMOMPI_DomainGridBuilder which is the MPI and OMP implementation of the mask building method buildMask() which calls SM_DomainGridBuilder::buildMaskSlice() for a slice of unit cells grid.
• SM_CrystalStructuresBuilder if the interface to build a block or a slice of crystal structures SM_CrystalStructure . It is the base class of
  • SM_BCCStructuresBuilder which implements buildNetworkGridSet() and buildNetworkSliceSet() methods for the BCC configuration

  • SM_FCCStructuresBuilder which implements buildNetworkGridSet() and buildNetworkSliceSet() methods for the FCC configuration
  • SM_GridStructuresBuilder which implements buildNetworkGridSet() and buildNetworkSliceSet() methods for the center cell configuration

The BCC grid builder computes a set of particles in unit cells in slice or block of the whole network unit cells grid as follow:

get all the centers of the unit cell in domain and in slice or block of the whole grid and connect them to the 8 summits of the unit cells. get on all the summits of the unit cells in slice or block of the whole grid and connect them to the center of cells connected to the summit and in the domain.

The FCC grid builder computes a set of particles in unit cells in slice or block of the whole network unit cells grid as follow:

get all the centers of the face of the slice or block of the whole netwok in domain and connected them to the summit of the face and to the center of the face connected to them and in domain get all the summits of slice or block of the whole grid and connect them to the center of faces connected to the summit and in the domain.

The canonical grid builder computes a set of particles in unit cells in slice or block of the whole network unit cells grid as follow:

get all the centers of the unit cell and connect them to the center of all connected unit cells in the dommain

This package is implemented depending on OpenMP/MPI facilities in

• mpi network package implementation ofnetwork package of Stoch Magnet module
• stochmagnet_network_omp

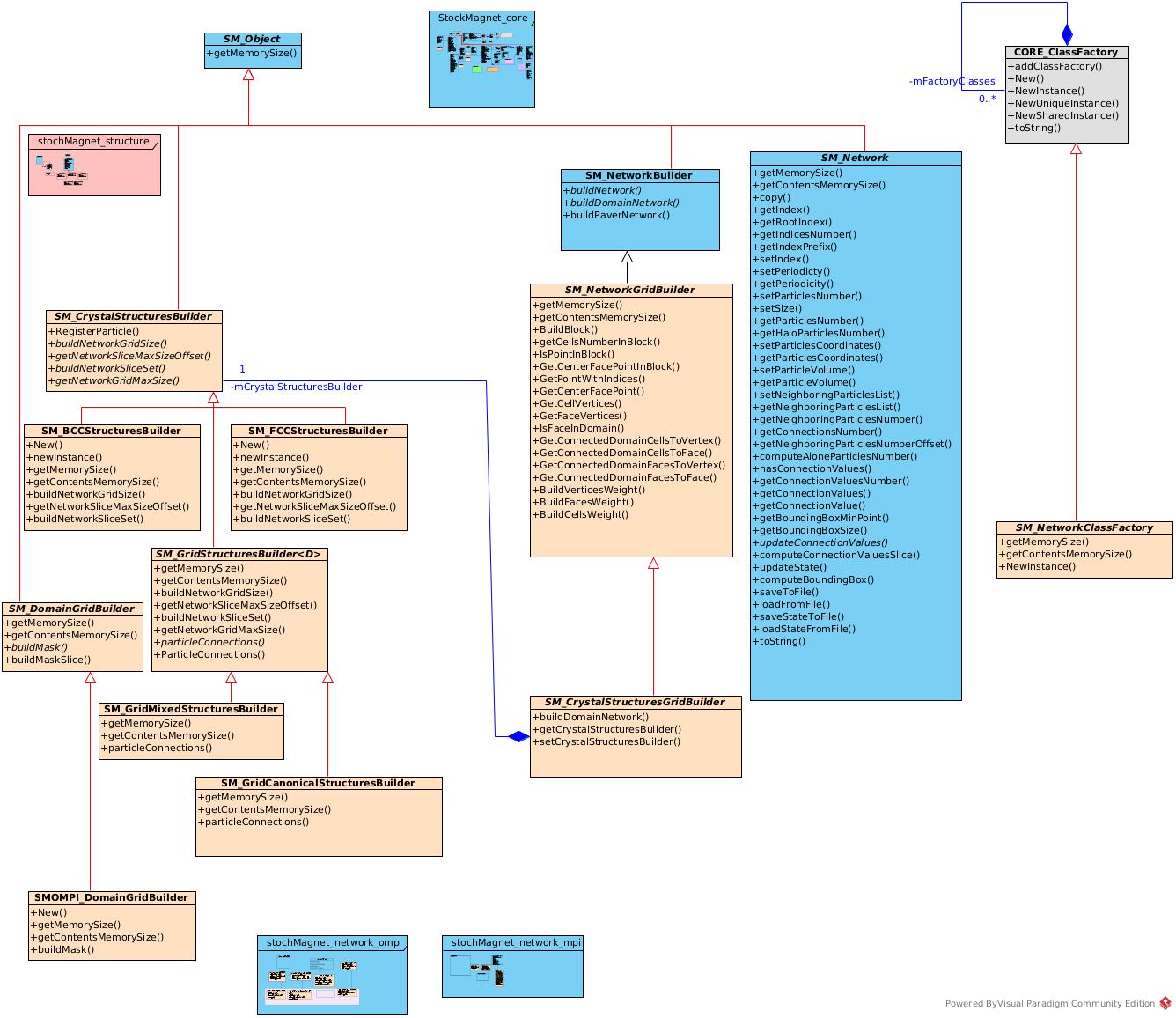

The UML organization of the package
