This class is a simulation of one trajectory class for Stoch Magnet package. More...

#include <SM_LandauLifschitzSystem.h>

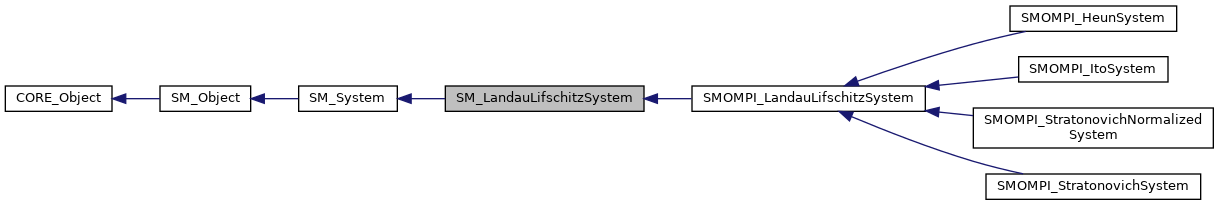

Inheritance diagram for SM_LandauLifschitzSystem:

[legend]

Collaboration diagram for SM_LandauLifschitzSystem:

[legend]

Public Member Functions
virtual tMemSize	getMemorySize () const
	return the memory size of the class and the memory size of all its attributes/associations More...

virtual tMemSize	getContentsMemorySize () const
	return the memory size of the included associations More...

virtual tBoolean	updateInitialMagneticMomentDirections (const SM_RealField &S0)
	update the initial unit direction of spins More...

virtual tBoolean	initializeMagneticMomentDirections () override
	initialize magnetic moments direction _ time step index = 0 More...

const SM_TimeStepper &	getTimeStepper () const
	get the time stepper More...

SM_TimeStepper &	getTimeStepper ()
	get the time stepper More...

const tReal &	getTime () const
	get the time More...

const tIndex &	getTimeIndex () const
	get the time index More...

tIndex &	getTimeIndex ()
	get the time index More...

tReal &	getTime ()
	get the time More...

void	resetTime ()
	reset time

const tReal &	getNoiseRate () const
	get the noise rate More...

tReal &	getNoiseRate ()
	get the noise rate More...

void	setNoiseRateFunction (CORE_UniquePointer< SM_NoiseRateFunctionInterface > &f)
	gst the noise rate function More...

tBoolean	hasNoiseRateFunction () const
	return true if the noise rate function is not null More...

SM_NoiseRateFunctionInterface &	getNoiseRateFunction ()
	get the noise rate function More...

const SM_NoiseRateFunctionInterface &	getNoiseRateFunction () const
	get the noise rate function More...

virtual void	setNoiseTemperature (const tReal &T) override
	set the noise as a temperature in Kelvin More...

void	setIsRelaxed (const tBoolean &isRelaxed)
	set if the system runs until relaxation More...

const tBoolean &	isRelaxed () const
	get if the system runs until relaxation More...

void	setRelaxationTolerance (const tReal &eps)
	set the relaxation tolerance to detect relaxation More...

const tReal &	getRelaxationTolerance () const
	get the relaxation tolerance to detect relaxation More...

const tReal &	getRelaxationValue () const
	get the relaxation value to detect relaxation for reading More...

tReal &	getRelaxationValue ()
	get the relaxation value to detect relaxation for writing More...

tReal	computeNetTorque () const
	compute Net Torque \( \|S \wedge H \|_\infty \)

virtual tReal	computeNetTorque (const tIndex &nParticles, const tReal S, const tIndex &nHParticles, const tReal H) const =0
	compute Net Torque \( \|S \wedge H \|_\infty \) More...

const SM_LandauLifschitzFunction &	getLandauLifschitzFunction () const
	get the Landau Lifschitz function return the Landau lifschitz function for reading

SM_LandauLifschitzFunction &	getLandauLifschitzFunction ()
	get the Landau Lifschitz function More...

virtual void	normalize (const tBoolean &isAdimensionized) override
	normalize the system More...

const SM_RealField &	getMagneticField () const
	get the magnetic field for writting More...

const SM_RealField &	getMagneticMomentDirectionsVariation () const
	get the variation of the direction of the magnetic moments for writting More...

virtual void	discretize () override
	discretize the system More...

virtual tULLInt	getGeneratedRandomNumbers () const override
	get the generated of random number within a stochastic run per one step of run

template<class StochOutputI >
tBoolean	deterministicRun (const tIndex &steppersNumber, SM_StochasticOutput< StochOutputI > &stochasticOutput)
	compute deterministic running of steppers number of the system with computing statistics More...

tBoolean	stochasticRun (const tIndex &steppersNumber, SM_MultiStochasticFunctionsInterface &sfs)
	compute the steppers number of system without stochastic output More...

template<class StochOutputImplement >
tBoolean	stochasticRun (const tIndex &steppersNumber, SM_MultiStochasticFunctionsInterface &multiStochasticFunctions, SM_StochasticOutput< StochOutputImplement > &stochasticOutput)
	compute the steppers number of system without stochastic output More...

tBoolean	stochasticJRun (const tIndex &steppersNumber, SM_StochasticFunctionsInterface &stochasticFunctions, const std::function< void(const tReal &, const tReal &, const tReal &, tReal &)> &F)
	compute the steppers number of system for reaching the relaxed state More...

template<class StochOutputImpl >
tBoolean	stochasticJRun (const tIndex &steppersNumber, SM_StochasticFunctionsInterface &stochasticFunctions, SM_StochasticOutput< StochOutputImpl > &stochasticOutput, const std::function< void(const tReal &, const tReal &, const tReal &, tReal &)> &F)
	compute the steppers number of system for reaching the relaxed state More...

virtual void	computeVariationMagneticField (const tReal &dt, SM_RealField &H) const =0
	computes \( H:=H.dt \) More...

virtual void	computeBrownianVariationMagneticField (SM_MultiStochasticFunctionsInterface &stochFs, const tReal &dt, const tReal &bdt, const tReal &epsilon, const tBoolean &incdWt, tReal *dWt, SM_RealField &H)=0
	add stochastic brownian field \( H:=dt.H+ sdt.\varepsilon.N(0,1) \) More...

virtual tBoolean	computeMagneticMomentDirectionsAtNextTimeStep (const tReal &dt, const tReal &epsilon_t, const SM_RealField &deltaSt, SM_RealField &St)=0
	compute direction of magnetic moments at next time More...

virtual tString	toString () const override
	turn the class into a string representation More...

Public Member Functions inherited from SM_System
void	setNetwork (CORE_UniquePointer< SM_Network > net)
	set the network More...

const SM_Network &	getNetwork () const
	get the network More...

SM_Network &	getNetwork ()
	get the network More...

tBoolean	hasNetwork () const
	return true if the system has a network More...

const SM_Material &	getMaterial () const
	get the material of the network More...

SM_Material &	getMaterial ()
	get the material of the network More...

void	setInitialMagneticMomentDirections (const std::valarray< tReal > &S0)
	set the initial unit direction of spins More...

void	setInitialMagneticMomentDirections (const SM_RealField &S0)
	set the initial unit direction of spins More...

void	setInitialMagneticMomentDirections (const tIndex &N, const std::array< tReal, SM_Constants::DIM > &S0)
	set the initial unit direction of spins More...

const SM_RealField &	getInitialMagneticMomentDirections () const
	get the initial unit direction of spins More...

SM_RealField &	getInitialMagneticMomentDirections ()
	get the initial unit direction of spins for writting More...

const SM_RealField &	getMagneticMomentDirections () const
	get the unit direction of spins at time More...

SM_RealField &	getMagneticMomentDirections ()
	get the unit direction of spins at time for writting More...

void	addOperator (CORE_UniquePointer< SM_Operator > op)
	add operator More...

const SM_SliceOperator *	getOperator (const tString &name) const
	get the operator with name More...

SM_SliceOperator *	getOperator (const tString &name)
	get the operator with name More...

void	copyOperators (const SM_System &system)
	copy the operator More...

const std::map< tString, CORE_UniquePointer< SM_Operator > > &	getOperators () const
	get the operators More...

std::map< tString, CORE_UniquePointer< SM_Operator > > &	getOperators ()
	get the operators More...

tIndex	getOperatorsNumber () const
	get the operators number More...

void	getOperatorsName (std::vector< tString > &names) const
	get the operator names More...

virtual void	setStochasticNoise (const tReal &eps)
	set the stochastic noise without dimension More...

const tReal &	getStochasticNoise () const
	get the stochastic noise without dimension More...

const tReal &	getNoiseTemperature () const
	get the noise temperature in Kelvin More...

const tIndex &	getStepIndex () const
	get the step index More...

tIndex &	getStepIndex ()
	get the step index More...

virtual void	sumOverNetworks (const int &rootNetwork, tIndex &n, const tIndex &nValues, tReal *values) const
	sum the values of all network More...

void	computeMagneticMomentDirectionsSumOverNetworks (const int &rootNetwork, std::array< tReal, SM_Constants::DIM > &sumS) const
	compute the sum over the domain of magnetic moment dierctions More...

void	computeMagneticMomentDirectionsMeanOverNetworks (const int &rootNetwork, std::array< tReal, SM_Constants::DIM > &meanS) const
	compute the mean over the domain of magneticmoment directions More...

void	computeMagneticMomentDirectionsSum (const tInteger &start, const tInteger &end, std::array< tReal, SM_Constants::DIM > &sumS) const
	compute the sum of magnetic moment directions over the network More...

void	updateOperatorsState (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S)
	update the operators state before computeing magnetic field More...

void	computeMagneticField (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S, SM_RealField &H) const
	compute the magnetic field at time step index t by calling the virtual method SM_Operator::computeMagneticField() More...

tReal	computeSpinEnergy (const tIndex &i, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the spin of the system More...

tReal	computeSpinEnergy (const tIndex &i, const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the spin of the system More...

const tReal &	computeEnergies (std::valarray< tReal > &energies) const
	compute the energies per operators More...

const tReal &	computeEnergies (const tIndex &timeIndex, std::valarray< tReal > &energies) const
	compute the energies per operators More...

Public Member Functions inherited from SM_Object
	SM_Object (void)
	create

virtual	~SM_Object (void)
	destroy

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Protected Member Functions
	SM_LandauLifschitzSystem (void)
	create a class

virtual	~SM_LandauLifschitzSystem (void)
	destroy the class

tReal	computeNetSliceTorque (const tIndex &startS, const tIndex &endS, const tReal S, const tIndex &startH, const tReal H) const
	compute Net Torque \( \|S \wedge H \|_\infty \) for all particules in indices in [start,end[ More...

void	setIsBrownianNull (const tBoolean &v)
	set if the brownian variable is null More...

const tBoolean &	isBrownianNull () const
	get if the brownian variable is null

void	setIsRealBrownianVariable (const tBoolean &v)
	set if the brownian variable is a field or a real

const tBoolean &	isRealBrownianVariable () const
	get if the brownian variable is a field or a real

const SM_RealField &	getBrownianField () const
	get the generated brownian variable for reading More...

SM_RealField &	getBrownianField ()
	get the generated brownian variable for reading More...

void	setLandauLifschitzFunction (CORE_UniquePointer< SM_LandauLifschitzFunction > llF)
	set the landau lifschitz function

SM_RealField &	getMagneticField ()
	get the magnetic field for writting More...

SM_RealField &	getMagneticMomentDirectionsVariation ()
	get the variation of the direction of the magnetic moments for writting More...

void	computeVariationMagneticFieldSlice (const tIndex &start, const tIndex &end, const tReal &dt, tReal *H) const
	computes \( H:=H.dt \) for particle indices in [start,end[ More...

void	computeBrownianVariationMagneticFieldSlice (SM_StochasticFunctionsInterface &randF, const tIndex &start, const tIndex &end, const tReal &dt, const tReal &bdt, const tReal &epsilon, const tBoolean &incdWt, tReal dWt, tReal H)
	add stochastic brownian field \( H:=dt.H+ sdt.\varepsilon.N(0,1) \) for particle indices in [start,end[ More...

template<class StochFImpl >
void	computeBrownianVariationMagneticFieldSliceWithSCStochasticFunctions (SM_StochasticFunctions< StochFImpl > &randF, tIndex start, tIndex end, const tReal &dt, const tReal &bdt, const tReal &epsilon, const tBoolean &incdWt, tReal dWt, tReal H)
	add stochastic brownian field \( H:=dt.H+ sdt.\varepsilon.N(0,1) \) for particle indices in [start,end[ More...

Protected Member Functions inherited from SM_System
	SM_System (void)
	create a class

virtual	~SM_System (void)
	destroy the class

tReal	computeEnergy (const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the system More...

tReal	computeEnergy (const tIndex &timeIndex, const SM_Network &network, const SM_Material &material, const SM_RealField &S) const
	compute the energy of the system More...

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Static Protected Member Functions
static void	ComputeMagneticMomentDirectionsSliceAtNextTimeStep (tIndex startS, tIndex endS, const tIndex &nDeltaS, const tReal deltaS, const tIndex &nS, const tReal S, tReal *nextS)
	compute \( nextS:=St+deltaS \) for all particle indices in [start,end[ More...

static void	ComputeMagneticMomentDirectionsSliceAtNextTimeStep (tIndex startS, tIndex endS, const tIndex &nDeltaS, const tReal deltaSt, const tReal &alpha, const tIndex &nS, const tReal S, tReal *nextS)
	compute \( nextSt = alpha.St+deltaS \) for all particle indices in [start,end[ More...

Additional Inherited Members
Static Public Member Functions inherited from SM_System
static void	ComputeFieldSum (const tInteger &start, const tInteger &end, const SM_RealField &F, std::array< tReal, SM_Constants::DIM > &sumF)
	compute the sum of F over the network More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Detailed Description

This class is a simulation of one trajectory class for Stoch Magnet package.

This class solves the system

\( \displaystyle Y_t=\alpha. A(S_t) H.dt + \epsilon \alpha A(S_t)dW_t - \delta . \varepsilon^2.\alpha^2.\left( 1+\beta^2\right).dt.S_t \)
\( \S_t=\displaystyle \frac{Y_t}{|Y_t|} \)
\( dW_t \sim \sqrt{dt} \mathcal{N}(0,1) \) Where \( \delta \) is 0 for Ito System and 1 for Stratonovich normalized system For the Stratonovich system the Matrix A is computed with the assumption that \( |\mu_t|=1 \) so that the we have directly \( \mu_t= Y_t \).

The general stochastic relaxation process implemented in the class SM_StratonovichNormalizedSystem can be sumarized with the following algorithm

for the Ito system \( \tau \) is set to 1 implemented in the class SM_ItoSystem
for the SM_StratonovichSystem , the normalization of \( S_{t+dt} \) is ignored and the normalized formulation of the Landau Lifschitz equation is used (see SM_LandauLifschitzFunction). It is implemented in the class SM_StratonovichSystem .

Author
Stephane Despreaux

Version
2.0

Member Function Documentation

◆ computeBrownianVariationMagneticField()

virtual void SM_LandauLifschitzSystem::computeBrownianVariationMagneticField	(	SM_MultiStochasticFunctionsInterface &	stochFs,
		const tReal &	dt,
		const tReal &	bdt,
		const tReal &	epsilon,
		const tBoolean &	incdWt,
		tReal *	dWt,
		SM_RealField &	H
	)

pure virtual

add stochastic brownian field \( H:=dt.H+ sdt.\varepsilon.N(0,1) \)

Parameters

[in,out]	stochFs	: normal law
[in]	dt	: time step
[in]	bdt	: time step for brownain mvt
[in]	epsilon	: noise rate
[in]	incdWt	increment on dwt 0 for scalar 1 for field
[out]	dWt	brownian noise computed
[in,out]	H	: magnetic field

Implemented in SMOMPI_LandauLifschitzSystem.

◆ computeBrownianVariationMagneticFieldSlice()

void SM_LandauLifschitzSystem::computeBrownianVariationMagneticFieldSlice	(	SM_StochasticFunctionsInterface &	randF,
		const tIndex &	start,
		const tIndex &	end,
		const tReal &	dt,
		const tReal &	bdt,
		const tReal &	epsilon,
		const tBoolean &	incdWt,
		tReal *	dWt,
		tReal *	H
	)

inlineprotected

add stochastic brownian field \( H:=dt.H+ sdt.\varepsilon.N(0,1) \) for particle indices in [start,end[

Parameters

[in,out]	randF	: normal random law
[in]	start	: index of start particle of H
[in]	end	: index of end particle of H
[in]	dt	: time step
[in]	bdt	: time step for brownain mvt
[in]	epsilon	: noise rate
[in]	incdWt	increment on dwt 0 for scalar 1 for field
[out]	dWt	brownian noise computed
[in,out]	H	: magnetic field

◆ computeBrownianVariationMagneticFieldSliceWithSCStochasticFunctions()

template<class StochFImpl >

void SM_LandauLifschitzSystem::computeBrownianVariationMagneticFieldSliceWithSCStochasticFunctions	(	SM_StochasticFunctions< StochFImpl > &	randF,
		tIndex	start,
		tIndex	end,
		const tReal &	dt,
		const tReal &	bdt,
		const tReal &	epsilon,
		const tBoolean &	incdWt,
		tReal *	dWt,
		tReal *	H
	)

inlineprotected

add stochastic brownian field \( H:=dt.H+ sdt.\varepsilon.N(0,1) \) for particle indices in [start,end[

Template Parameters

StochFImpl : implemented class SM_StochasticFunctions

Parameters

[in,out]	randF	: normal random law
[in]	start	: index of start particle of H
[in]	end	: index of end particle of H
[in]	dt	: time step
[in]	bdt	: time step for brownian mvt
[in]	epsilon	: noise rate
[in]	incdWt	increment on dwt 0 for scalar 1 for field
[out]	dWt	brownian noise computed
[in,out]	H	: magnetic field

◆ computeMagneticMomentDirectionsAtNextTimeStep()

virtual tBoolean SM_LandauLifschitzSystem::computeMagneticMomentDirectionsAtNextTimeStep	(	const tReal &	dt,
		const tReal &	epsilon_t,
		const SM_RealField &	deltaSt,
		SM_RealField &	St
	)

pure virtual

compute direction of magnetic moments at next time

Parameters

[in]	dt	time step
[in]	epsilon_t	: epsilon at time t
[in]	deltaSt	: variation of S at time t
[in,out]	St	: in input S at time t in output S at time t+dt \( S_{t+dt}=\Delta S_t+(1-K.\varepsilon_t^2.dt).\S_t \)

Returns: false if there is a point \( P_i \) where at the coordinate k , \( |\mu_k(P_i)| \) is too much greater than 1 (10 for instance)

Implemented in SMOMPI_StratonovichSystem, SMOMPI_StratonovichNormalizedSystem, SMOMPI_ItoSystem, and SMOMPI_HeunSystem.

◆ ComputeMagneticMomentDirectionsSliceAtNextTimeStep() [1/2]

void SM_LandauLifschitzSystem::ComputeMagneticMomentDirectionsSliceAtNextTimeStep	(	tIndex	startS,
		tIndex	endS,
		const tIndex &	nDeltaS,
		const tReal *	deltaS,
		const tIndex &	nS,
		const tReal *	S,
		tReal *	nextS
	)

staticprotected

compute \( nextS:=St+deltaS \) for all particle indices in [start,end[

Parameters

[in]	startS	: index of start particle of S
[in]	endS	: index of end particle of S
[in]	nDeltaS	: number of elmeents of delta S
[in]	deltaS	: variation of S
[in]	nS	number of elements of S & St
[in]	S	direction of magnetic moments with the same number of elements of S
[out]	nextS	\( Y_t:=S+\Delta S \) and \( nextS(p)=Y_t(p) / \|Y_t(p)\| \)

◆ ComputeMagneticMomentDirectionsSliceAtNextTimeStep() [2/2]

void SM_LandauLifschitzSystem::ComputeMagneticMomentDirectionsSliceAtNextTimeStep	(	tIndex	startS,
		tIndex	endS,
		const tIndex &	nDeltaS,
		const tReal *	deltaSt,
		const tReal &	alpha,
		const tIndex &	nS,
		const tReal *	S,
		tReal *	nextS
	)

staticprotected

compute \( nextSt = alpha.St+deltaS \) for all particle indices in [start,end[

Parameters

[in]	startS	: index of start particle
[in]	endS	: index of end particle
[in]	nDeltaS	: number of elments of delta S
[in]	deltaSt	: time variation of S at t
[in]	alpha	: coefficient of St
[in]	nS	number of elements of S & St
[in]	S	direction of magnetic moments with the same number of elements of S
[out]	nextS	\( Y_t:=\alpha. S_t+\Delta S_t \) and \( nextS(p)=Y_t(p) / \|Y_t(p)\| \)

◆ computeNetSliceTorque()

tReal SM_LandauLifschitzSystem::computeNetSliceTorque	(	const tIndex &	startS,
		const tIndex &	endS,
		const tReal *	S,
		const tIndex &	startH,
		const tReal *	H
	)		const

protected

compute Net Torque \( |S \wedge H |_\infty \) for all particules in indices in [start,end[

Parameters

[in]	startS	start index of particle for S
[in]	endS	end index of particle for S
[in]	S	: direction of magnetic moments of all particles
[in]	startH	index of start particles for H
[in]	H	: magnetic field at all particles

◆ computeNetTorque()

virtual tReal SM_LandauLifschitzSystem::computeNetTorque	(	const tIndex &	nParticles,
		const tReal *	S,
		const tIndex &	nHParticles,
		const tReal *	H
	)		const

pure virtual

compute Net Torque \( |S \wedge H |_\infty \)

Parameters

[in]	nParticles	number of particles
[in]	S	: direction of magnetic moments of all particles may be greater than the nParticles because of presence of halo particles
[in]	nHParticles	number of particles for H
[in]	H	: magnetic field at all particles

Implemented in SMOMPI_LandauLifschitzSystem.

◆ computeVariationMagneticField()

virtual void SM_LandauLifschitzSystem::computeVariationMagneticField	(	const tReal &	dt,
		SM_RealField &	H
	)		const

pure virtual

computes \( H:=H.dt \)

Parameters

[in]	dt	: time step
[in,out]	H	: magnetic field

Implemented in SMOMPI_LandauLifschitzSystem.

◆ computeVariationMagneticFieldSlice()

void SM_LandauLifschitzSystem::computeVariationMagneticFieldSlice	(	const tIndex &	start,
		const tIndex &	end,
		const tReal &	dt,
		tReal *	H
	)		const

inlineprotected

computes \( H:=H.dt \) for particle indices in [start,end[

Parameters

[in]	start	: index of the start particle of H
[in]	end	index of the end particle of H
[in]	dt	: time step
[in,out]	H	: magnetic field

◆ deterministicRun()

template<class StochOutputI >

tBoolean SM_LandauLifschitzSystem::deterministicRun	(	const tIndex &	steppersNumber,
		SM_StochasticOutput< StochOutputI > &	stochasticOutput
	)

compute deterministic running of steppers number of the system with computing statistics

Template Parameters

StochOutputI : implemented class SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	stochasticOutput	stochastic data to compute

◆ discretize()

virtual void SM_LandauLifschitzSystem::discretize ( )

inlineoverridevirtual

discretize the system

discretires St and operators with SuperClass::discretize method
discretizes Ht,dSt,dWt

Reimplemented from SM_System.

Reimplemented in SMOMPI_StratonovichSystem, SMOMPI_StratonovichNormalizedSystem, SMOMPI_LandauLifschitzSystem, and SMOMPI_HeunSystem.

◆ getBrownianField() [1/2]

SM_RealField& SM_LandauLifschitzSystem::getBrownianField ( )

inlineprotected

get the generated brownian variable for reading

Returns: the brownian field generated

◆ getBrownianField() [2/2]

const SM_RealField& SM_LandauLifschitzSystem::getBrownianField ( ) const

inlineprotected

get the generated brownian variable for reading

Returns: the brownian field generated

◆ getContentsMemorySize()

virtual tMemSize SM_LandauLifschitzSystem::getContentsMemorySize ( ) const

inlinevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from SM_System.

Reimplemented in SMOMPI_LandauLifschitzSystem, and SMOMPI_HeunSystem.

◆ getLandauLifschitzFunction()

SM_LandauLifschitzFunction& SM_LandauLifschitzSystem::getLandauLifschitzFunction ( )

inline

get the Landau Lifschitz function

Returns: the Landau lifschitz function for writing

◆ getMagneticField() [1/2]

SM_RealField& SM_LandauLifschitzSystem::getMagneticField ( )

inlineprotected

get the magnetic field for writting

Returns: the magnetic field

◆ getMagneticField() [2/2]

const SM_RealField& SM_LandauLifschitzSystem::getMagneticField ( ) const

inline

get the magnetic field for writting

Returns: the magnetic field

◆ getMagneticMomentDirectionsVariation() [1/2]

SM_RealField& SM_LandauLifschitzSystem::getMagneticMomentDirectionsVariation ( )

inlineprotected

get the variation of the direction of the magnetic moments for writting

Returns: the variation of the direction of the magnetic moments

◆ getMagneticMomentDirectionsVariation() [2/2]

const SM_RealField& SM_LandauLifschitzSystem::getMagneticMomentDirectionsVariation ( ) const

inline

get the variation of the direction of the magnetic moments for writting

Returns: the variation of the direction of the magnetic moments

◆ getMemorySize()

virtual tMemSize SM_LandauLifschitzSystem::getMemorySize ( ) const

inlinevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from SM_System.

Reimplemented in SMOMPI_StratonovichSystem, SMOMPI_StratonovichNormalizedSystem, SMOMPI_LandauLifschitzSystem, SMOMPI_ItoSystem, and SMOMPI_HeunSystem.

◆ getNoiseRate() [1/2]

tReal& SM_LandauLifschitzSystem::getNoiseRate ( )

inline

get the noise rate

Returns: the nose rate at t

◆ getNoiseRate() [2/2]

const tReal& SM_LandauLifschitzSystem::getNoiseRate ( ) const

inline

get the noise rate

Returns: the nose rate at t

◆ getNoiseRateFunction() [1/2]

SM_NoiseRateFunctionInterface& SM_LandauLifschitzSystem::getNoiseRateFunction ( )

inline

get the noise rate function

Returns: the noise rate function

◆ getNoiseRateFunction() [2/2]

const SM_NoiseRateFunctionInterface& SM_LandauLifschitzSystem::getNoiseRateFunction ( ) const

inline

get the noise rate function

Returns: the noise rate function

◆ getRelaxationTolerance()

const tReal& SM_LandauLifschitzSystem::getRelaxationTolerance ( ) const

inline

get the relaxation tolerance to detect relaxation

Returns: tolerance value

◆ getRelaxationValue() [1/2]

tReal& SM_LandauLifschitzSystem::getRelaxationValue ( )

inline

get the relaxation value to detect relaxation for writing

Returns: relaxtion value

◆ getRelaxationValue() [2/2]

const tReal& SM_LandauLifschitzSystem::getRelaxationValue ( ) const

inline

get the relaxation value to detect relaxation for reading

Returns: relaxtion value

◆ getTime() [1/2]

tReal& SM_LandauLifschitzSystem::getTime ( )

inline

get the time

Returns: the current time

◆ getTime() [2/2]

const tReal& SM_LandauLifschitzSystem::getTime ( ) const

inline

get the time

Returns: the current time

◆ getTimeIndex() [1/2]

tIndex& SM_LandauLifschitzSystem::getTimeIndex ( )

inline

get the time index

Returns: the current time index

◆ getTimeIndex() [2/2]

const tIndex& SM_LandauLifschitzSystem::getTimeIndex ( ) const

inline

get the time index

Returns: the current time index

◆ getTimeStepper() [1/2]

SM_TimeStepper& SM_LandauLifschitzSystem::getTimeStepper ( )

inline

get the time stepper

Returns: the time stepper for writing

◆ getTimeStepper() [2/2]

const SM_TimeStepper& SM_LandauLifschitzSystem::getTimeStepper ( ) const

inline

get the time stepper

Returns: the time stepper for reading

◆ hasNoiseRateFunction()

tBoolean SM_LandauLifschitzSystem::hasNoiseRateFunction ( ) const

inline

return true if the noise rate function is not null

Returns: true if noise rate function is not null

◆ initializeMagneticMomentDirections()

virtual tBoolean SM_LandauLifschitzSystem::initializeMagneticMomentDirections ( )

inlineoverridevirtual

initialize magnetic moments direction _ time step index = 0

step index reste to 0
S(t=0)=S_{init}
Returns
true if St & S0 has same size

Reimplemented from SM_System.

Reimplemented in SMOMPI_LandauLifschitzSystem.

◆ isRelaxed()

const tBoolean& SM_LandauLifschitzSystem::isRelaxed ( ) const

inline

get if the system runs until relaxation

Returns: true to reach relaxation

◆ normalize()

virtual void SM_LandauLifschitzSystem::normalize ( const tBoolean & isAdimensionized )

inlineoverridevirtual

normalize the system

Parameters

[in] isAdimensionized true to adimensionize the system

Reimplemented from SM_System.

◆ setIsBrownianNull()

void SM_LandauLifschitzSystem::setIsBrownianNull ( const tBoolean & v )

inlineprotected

set if the brownian variable is null

Parameters

[in] v true to desactivate brownian computation

◆ setIsRelaxed()

void SM_LandauLifschitzSystem::setIsRelaxed ( const tBoolean & isRelaxed )

inline

set if the system runs until relaxation

Parameters

[in] isRelaxed : true to reach relaxation

◆ setNoiseRateFunction()

void SM_LandauLifschitzSystem::setNoiseRateFunction ( CORE_UniquePointer< SM_NoiseRateFunctionInterface > & f )

inline

gst the noise rate function

Parameters

[in] f : the noise rate function

◆ setNoiseTemperature()

virtual void SM_LandauLifschitzSystem::setNoiseTemperature ( const tReal & T )

inlineoverridevirtual

set the noise as a temperature in Kelvin

Parameters

[in] T : temperature

Reimplemented from SM_System.

◆ setRelaxationTolerance()

void SM_LandauLifschitzSystem::setRelaxationTolerance ( const tReal & eps )

inline

set the relaxation tolerance to detect relaxation

Parameters

[in] eps tolerance value

◆ stochasticJRun() [1/2]

tBoolean SM_LandauLifschitzSystem::stochasticJRun	(	const tIndex &	steppersNumber,
		SM_StochasticFunctionsInterface &	stochasticFunctions,
		const std::function< void(const tReal &, const tReal &, const tReal &, tReal &)> &	F
	)

compute the steppers number of system for reaching the relaxed state

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	stochasticFunctions	: stochastic functions to generate random numbers
[in]	F	: function F(J,eps,N,v) v=F(J,eps,N)

◆ stochasticJRun() [2/2]

template<class StochOutputImpl >

tBoolean SM_LandauLifschitzSystem::stochasticJRun	(	const tIndex &	steppersNumber,
		SM_StochasticFunctionsInterface &	stochasticFunctions,
		SM_StochasticOutput< StochOutputImpl > &	stochasticOutput,
		const std::function< void(const tReal &, const tReal &, const tReal &, tReal &)> &	F
	)

compute the steppers number of system for reaching the relaxed state

Template Parameters

StochOutputImpl : implmeent class for templated abstract methods of SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	stochasticFunctions	: stochastic functions to generate random numbers
[in,out]	stochasticOutput	: stochastic output of the running
[in]	F	: function F(J,eps,N,v) v=F(J,eps,N)

◆ stochasticRun() [1/2]

template<class StochOutputImplement >

tBoolean SM_LandauLifschitzSystem::stochasticRun	(	const tIndex &	steppersNumber,
		SM_MultiStochasticFunctionsInterface &	multiStochasticFunctions,
		SM_StochasticOutput< StochOutputImplement > &	stochasticOutput
	)

compute the steppers number of system without stochastic output

Template Parameters

StochOutputImplement : implemented class of SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	multiStochasticFunctions	: stochastic functions to generate random numbers
[in,out]	stochasticOutput	: stochastic output generated by running

◆ stochasticRun() [2/2]

tBoolean SM_LandauLifschitzSystem::stochasticRun	(	const tIndex &	steppersNumber,
		SM_MultiStochasticFunctionsInterface &	sfs
	)

compute the steppers number of system without stochastic output

Template Parameters

StochOutputImplement : implemented class SM_StochasticOutput

Parameters

[in]	steppersNumber	number of steppers to run
[in,out]	sfs	: stochastic functions to generate random numbers per threads

◆ toString()

tString SM_LandauLifschitzSystem::toString ( ) const

overridevirtual

turn the class into a string representation

Returns: a string representation of the class

Reimplemented from SM_System.

◆ updateInitialMagneticMomentDirections()

virtual tBoolean SM_LandauLifschitzSystem::updateInitialMagneticMomentDirections ( const SM_RealField & S0 )

inlinevirtual

update the initial unit direction of spins

Parameters

[in] S0 initial dierction of spins as an unit vector

Returns: true is initial magnetic moment direction is set to S0 only if they have the same size

Reimplemented from SM_System.

Reimplemented in SMOMPI_LandauLifschitzSystem.

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/landauLifschitz/core/SM_LandauLifschitzSystem.h
/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/landauLifschitz/core/SM_LandauLifschitzSystem.hpp
/home/despreau/Developpement/CPP/devcpp20/src/stochmagnet/landauLifschitz/core/SM_LandauLifschitzSystem.cpp

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ computeBrownianVariationMagneticField()

◆ computeBrownianVariationMagneticFieldSlice()

◆ computeBrownianVariationMagneticFieldSliceWithSCStochasticFunctions()

◆ computeMagneticMomentDirectionsAtNextTimeStep()

◆ ComputeMagneticMomentDirectionsSliceAtNextTimeStep() [1/2]

◆ ComputeMagneticMomentDirectionsSliceAtNextTimeStep() [2/2]

◆ computeNetSliceTorque()

◆ computeNetTorque()

◆ computeVariationMagneticField()

◆ computeVariationMagneticFieldSlice()

◆ deterministicRun()

◆ discretize()

◆ getBrownianField() [1/2]

◆ getBrownianField() [2/2]

◆ getContentsMemorySize()

◆ getLandauLifschitzFunction()

◆ getMagneticField() [1/2]

◆ getMagneticField() [2/2]

◆ getMagneticMomentDirectionsVariation() [1/2]

◆ getMagneticMomentDirectionsVariation() [2/2]

◆ getMemorySize()

◆ getNoiseRate() [1/2]

◆ getNoiseRate() [2/2]

◆ getNoiseRateFunction() [1/2]

◆ getNoiseRateFunction() [2/2]

◆ getRelaxationTolerance()

◆ getRelaxationValue() [1/2]

◆ getRelaxationValue() [2/2]

◆ getTime() [1/2]

◆ getTime() [2/2]

◆ getTimeIndex() [1/2]

◆ getTimeIndex() [2/2]

◆ getTimeStepper() [1/2]

◆ getTimeStepper() [2/2]

◆ hasNoiseRateFunction()

◆ initializeMagneticMomentDirections()

◆ isRelaxed()

◆ normalize()

◆ setIsBrownianNull()

◆ setIsRelaxed()

◆ setNoiseRateFunction()

◆ setNoiseTemperature()

◆ setRelaxationTolerance()

◆ stochasticJRun() [1/2]

◆ stochasticJRun() [2/2]

◆ stochasticRun() [1/2]

◆ stochasticRun() [2/2]

◆ toString()

◆ updateInitialMagneticMomentDirections()
