This class is a cart Environment of templated dimension N. More...

#include <MPI_GraphGridEnvironment.h>

Inheritance diagram for MPI_GraphGridEnvironment< N, D >:

[legend]

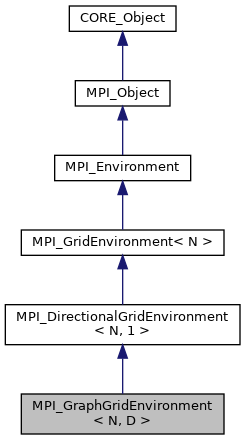

Collaboration diagram for MPI_GraphGridEnvironment< N, D >:

[legend]

Public Member Functions
virtual void	initialize ()
	initialize the environment

Public Member Functions inherited from MPI_DirectionalGridEnvironment< N, 1 >
virtual tMemSize	getMemorySize () const override
	return the memory size of the class

virtual tMemSize	getContentsMemorySize () const override
	return the memory size of the included associations More...

constexpr tUCInt	GetNeighborsDepth ()
	get the depth of neighbors

void	getFaceNeighbors (std::array< tMPICoreId, 2 *N > &neighbors) const
	get the coreId in canonical face More...

tMPICoreId	getDirectionalNeighbor (const std::array< tCInt, N > &dir) const
	get the neighbor core in the dierction dir More...

tMPICoreId	getDirectionalNeighbor (const tUCInt &dirIndex) const
	get the neighbor core More...

const std::map< tUCInt, tMPICoreId > &	getDirectionalNeighbors () const
	get the neighbor cores in all directions More...

void	setDirectionalNeighbors (const std::map< tUCInt, tMPICoreId > &neighbors)
	set neighbors grids per face More...

Public Member Functions inherited from MPI_GridEnvironment< N >
template<typename Q >
void	setGridSize (const std::array< Q, N > &Ns)
	get the grids number More...

const std::array< tMPICoreId, N > &	getGridSize () const
	get the grids number

template<typename Q >
void	setIndices (const std::array< Q, N > &indices)
	set the indices of the current core More...

const std::array< tMPICoreId, N > &	getIndices () const
	get the indices of the current core within the grid environment

const std::array< tBoolean, N > &	getGridPeriodicity () const
	return the periodicity of the grid

const tBoolean &	isPeriodic (const tUCInt &k) const
	return true if the grid is periodic in direction k More...

template<typename Q >
void	setGridPeriodicity (const std::array< Q, N > &Ts)
	set grid periodicity More...

tMPIError	getCoreIdAtIndices (const std::array< tMPICoreId, N > &indices, tMPICoreId &coreId) const
	the core id within the grid at indices More...

tMPIError	getCoreIndices (const tMPICoreId &coreId, std::array< tMPICoreId, N > &indices) const
	get the indices of the core with coreId More...

Public Member Functions inherited from MPI_Environment
const tMPIComm &	getWorld () const
	get the world of the environment for reading

tMPIComm &	getWorld ()
	get the world of the environment for reading

const tMPICoreId &	getCoresNumber () const
	get the number of cores of this environment of common environment More...

const tMPICoreId &	getCoreId () const
	get the id of the current process of this environment More...

tMPIError	abort (const tMPIError &errCode) const
	abort the process on all cores with the error code More...

tBoolean	synchronize () const
	wait that all the cores has finished her job

tBoolean	isMessageAvaliable (tMPICoreId &source, tMPITag &tag, tMPIBoolean &isAvailable, tMPIStatus &status) const
	test if the message is available frm the environment this More...

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

virtual tString	toString () const
	return the string representation of the object node More...

Static Public Member Functions
static CORE_UniquePointer< MPI_GraphGridEnvironment< N > >	New (const MPI_Environment &parent, const tString &fileDescriptor)
	create a new cart environment More...

static CORE_UniquePointer< MPI_GraphGridEnvironment< N > >	New (const MPI_Environment &parent, const tMPICoreId &nCores, const std::array< tInteger, N > &gridsNumber, const std::array< tInteger, N > &coreIndices, const std::map< tUCInt, tMPICoreId > &dirNeighbors)
	create a new cart environment More...

static tBoolean	LoadGridCartFile (const tString &fileName, const MPI_Environment &env, tMPICoreId &nCores, std::array< tInteger, N > &gridsNumber, std::array< tInteger, N > &coreIndices, std::map< tUCInt, tMPICoreId > &dirNeighbors, tBoolean &isCoreInGrid)
	save the grid cart file More...

template<typename Q >
static tBoolean	SaveGridCartFile (const MPI_DirectionalGridEnvironment< N, D > &env, const tInteger &nFullCores, const tInteger &fullId, const std::map< tUCInt, Q > &isDirNeighborFull, const tString &fileName)
	save the grid cart file More...

Static Public Member Functions inherited from MPI_DirectionalGridEnvironment< N, 1 >
static CORE_UniquePointer< SelfClass >	New (const std::array< tMPICoreId, N > &nCoresPerDirection, int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a new cart environment More...

static tUCInt	GetMaximumDirectionalNeighborsNumber ()
	get the maximum direction number : (2*D+1)^N when D is the neighbor Depth (D=0,1,2)

static tUCInt	GetFaceDirectionalIndex (const tUCInt &f, std::array< tCInt, N > &dir)
	get the face index in direction More...

static tUCInt	GetFaceDirectionalIndex (const tUCInt &f)
	get the face index in direction More...

static void	GetDirection (const tUCInt &index, std::array< tCInt, N > &dir)
	get the direction dir from index: index=dir[0]+1+D(dir[1]+1+3(dir[2]+1)) in {0,27} More...

static tUCInt	GetDirectionIndex (const std::array< tCInt, N > &dir)
	get the direction index from dir index=dir[0]+1+3(dir[1]+1+3(dir[2]+1)) in {0,27} More...

Static Public Member Functions inherited from MPI_GridEnvironment< N >
static CORE_UniquePointer< SelfClass >	New (const std::array< tMPICoreId, N > &nCoresPerDirection, int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a new cart environment More...

static tMPIError	ComputeGridSize (const MPI_Environment &parent, std::array< tMPICoreId, N > &coresNumber)
	get the cores number per direction if possible More...

static tMPIError	ComputeGridSize (const tMPICoreId &nAvailableCores, std::array< tMPICoreId, N > &coresNumber)
	get the cores number per direction if possible More...

static tBoolean	ComputeGridSize (const std::array< tReal, N > &Hs, const std::array< tInteger, N > &Ns, const tMPICoreId &nCores, std::array< tMPICoreId, N > &Gs)
	compute the grid size in order to minimize the ratio S/V where S is the surface of 1 cpu block and V the volume on 1 cpu block More...

Static Public Member Functions inherited from MPI_Environment
static CORE_UniquePointer< MPI_Environment >	New (int argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a test class More...

static CORE_UniquePointer< MPI_Environment >	New (int argc, char *argv[])
	create a test class More...

static void	GetCoresNumber (tMPICoreId &coresNumber)
	get the number of cores More...

static void	GetCoresNumber (const MPI_Environment &env, tMPICoreId &coresNumber)
	get the number of cores More...

static void	GetCoreId (tMPICoreId &id)
	get the id of the current process of common environment More...

static void	GetCoreId (const MPI_Environment &env, tMPICoreId &id)
	get the id of the current process of common environment More...

static tReal	GetTime ()
	get the time More...

static tMPIError	Abort (const MPI_Environment &env, const tMPIError &errCode)
	abort the process on all cores of the environment with the eroor code More...

static tMPIError	Abort (const tMPIError &errCode)
	abort the process on all cores with the error code More...

static tBoolean	Synchronize (const MPI_Environment &env)
	wait that all the core of an environment has finished her job More...

static tBoolean	Synchronize ()
	wait that all the cores has finished her job

static tBoolean	Wait (tMPIRequest &request, tMPIStatus &status)
	wait the end the the communication by blocking More...

static tBoolean	Wait (tMPIRequest &request)
	wait for the request is finished More...

static tBoolean	WaitAll (const tMPICount &nRequests, tMPIRequest requests[], tMPIStatus statuses[])
	wait the end the the communication by blocking More...

static tBoolean	WaitAll (std::valarray< tMPIRequest > &requests)
	wait for all the requests are finished More...

template<size_t D>
static tBoolean	WaitAll (std::array< tMPIRequest, D > &requests)
	wait for all the requests are finished More...

static tBoolean	WaitAll (const tMPICount &nRequests, tMPIRequest *requests)
	wait for all the requests are finished More...

static tBoolean	IsFinished (tMPIRequest &request, tMPIInteger &isFinished)
	test if the requets is finished More...

static tBoolean	IsAllFinished (std::valarray< tMPIRequest > &requests, tMPIInteger &isFinished)
	test if the requets is finished More...

static tBoolean	IsFinished (tMPIRequest &request, tMPIStatus &status, tMPIInteger &isFinished)
	return true if the communication is finished More...

static tBoolean	IsMessageAvaliable (const MPI_Environment &env, tMPICoreId &source, tMPITag &tag, tMPIBoolean &isAvailable, tMPIStatus &status)
	test if a message is available form any tag and any source More...

static tBoolean	IsMessageAvaliable (const MPI_Environment &env, const tMPITag &tag, const tMPICoreId &source, tMPIBoolean &isAvailable)
	test if the message with tag from source is available More...

static tBoolean	IsTagMessageAvaliable (const MPI_Environment &env, const tMPITag &tag, tMPICoreId &source, tMPIBoolean &isAvailable, tMPIStatus &status)
	test if the message with tag is avalaible More...

template<typename T >
static tBoolean	GetCount (const tMPIStatus &status, tMPICount &nElements)
	get the number of element of the message More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	MPI_GraphGridEnvironment ()
	create a root environment

virtual	~MPI_GraphGridEnvironment (void)
	destroy

Protected Member Functions inherited from MPI_DirectionalGridEnvironment< N, 1 >
	MPI_DirectionalGridEnvironment ()
	create a root environment

	MPI_DirectionalGridEnvironment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_DirectionalGridEnvironment (void)
	destroy

Protected Member Functions inherited from MPI_GridEnvironment< N >
	MPI_GridEnvironment ()
	create a root environment

	MPI_GridEnvironment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_GridEnvironment (void)
	destroy

Protected Member Functions inherited from MPI_Environment
	MPI_Environment ()
	create a root environment

	MPI_Environment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_Environment (void)
	destroy

void	setIsRootEnvironment (const tBoolean &isRoot)
	set true when the environemnt created is a root one but not a common world

Protected Member Functions inherited from MPI_Object
	MPI_Object (void)
	create

virtual	~MPI_Object (void)
	destroy

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

template<tUCInt N, tUCInt D = 1>
class MPI_GraphGridEnvironment< N, D >

This class is a cart Environment of templated dimension N.

Template Parameters

N	: size of the grid
D	neighbor depth To create a grid from a parent environment call MPI_GridEnvironment::New(const MPI_Environment& parent,const std::array<tMPICoreId,N>& nCoresPerDirections,const std::array<tBoolean,N>& isPeriodicPerDirections,const tBoolean& canCoreIdBeChanged) .

the nCoresPerDirections array can be set to 0 and it can be built by the method GetGridsNumber(parent.getCoresNumber(),nCoresPerDirections).

To get the indices & thge coreId of the current process per direction, call the method getCoreId(std::array<tMPICoreId,N>& indices,tMPICoreId& coreId) :

To get the coordinates of a process within the grid, call the method getIndices(std::array<tMPICoreId,N>& indices

To create an hyperplan of the grid call New(onst MPI_GridEnvironment<N>& parent,const tUCInt& dir) where dir is the normal of the hyperplan

Author: Stephane Despreaux

Version: 2.0

Member Function Documentation

◆ LoadGridCartFile()

template<tUCInt N, tUCInt D>

tBoolean MPI_GraphGridEnvironment< N, D >::LoadGridCartFile	(	const tString &	fileName,
		const MPI_Environment &	env,
		tMPICoreId &	nCores,
		std::array< tInteger, N > &	gridsNumber,
		std::array< tInteger, N > &	coreIndices,
		std::map< tUCInt, tMPICoreId > &	dirNeighbors,
		tBoolean &	isCoreInGrid
	)

static

save the grid cart file

Parameters

[in]	fileName	name of the cart of the grid
[in]	env	: environment of the processes
[out]	nCores	: number of cores of thegrid cart env
[out]	gridsNumber	: number of grids
[out]	coreIndices	indices of the core
[out]	dirNeighbors	id of the neighbor core per direction
[out]	isCoreInGrid	: true if the current core is in grid

Returns: true if the file has been read

◆ New() [1/2]

template<tUCInt N, tUCInt D = 1>

static CORE_UniquePointer<MPI_GraphGridEnvironment<N> > MPI_GraphGridEnvironment< N, D >::New	(	const MPI_Environment &	parent,
		const tMPICoreId &	nCores,
		const std::array< tInteger, N > &	gridsNumber,
		const std::array< tInteger, N > &	coreIndices,
		const std::map< tUCInt, tMPICoreId > &	dirNeighbors
	)

inlinestatic

create a new cart environment

Parameters

[in]	parent	: parent environment
[in]	nCores	: total number of not empty grids
[in]	gridsNumber	: fictive number of grids per dierction
[in]	coreIndices	indices of the self core in grids
[in]	dirNeighbors	directional neighbors of the self core

Returns: a new grid environment

◆ New() [2/2]

template<tUCInt N, tUCInt D = 1>

static CORE_UniquePointer<MPI_GraphGridEnvironment<N> > MPI_GraphGridEnvironment< N, D >::New	(	const MPI_Environment &	parent,
		const tString &	fileDescriptor
	)

inlinestatic

create a new cart environment

Parameters

[in]	parent	: parent environment
[in]	fileDescriptor	name of the file to describes the grid

Returns: a new grid environment

◆ SaveGridCartFile()

template<tUCInt N, tUCInt D>

template<typename Q >

tBoolean MPI_GraphGridEnvironment< N, D >::SaveGridCartFile	(	const MPI_DirectionalGridEnvironment< N, D > &	env,
		const tInteger &	nFullCores,
		const tInteger &	fullId,
		const std::map< tUCInt, Q > &	isDirNeighborFull,
		const tString &	fileName
	)

static

save the grid cart file

Parameters

[in]	env	: grid environment
[in]	nFullCores	total number of full cores of the environment
[in]	fullId	index to indicates the rate of full (0 for empty)
[in]	isDirNeighorFull	index -> ind >0 if the neighbor core is full index -> ind=0 if neighbor core empty by defualt if the nieghor index is not in list, suppoed to be empty
[in]	fileName	name of the cart of the grid

Returns: true if the fiel has been saved

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/mpi/multicores/MPI_GraphGridEnvironment.h
/home/despreau/Developpement/CPP/devcpp20/include/mpi/multicores/MPI_GraphGridEnvironment.hpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

template<tUCInt N, tUCInt D = 1> class MPI_GraphGridEnvironment< N, D >

Member Function Documentation

◆ LoadGridCartFile()

◆ New() [1/2]

◆ New() [2/2]

◆ SaveGridCartFile()

template<tUCInt N, tUCInt D = 1>
class MPI_GraphGridEnvironment< N, D >
