This class is a Environment class to define MPI world. More...

#include <MPI_Environment.h>

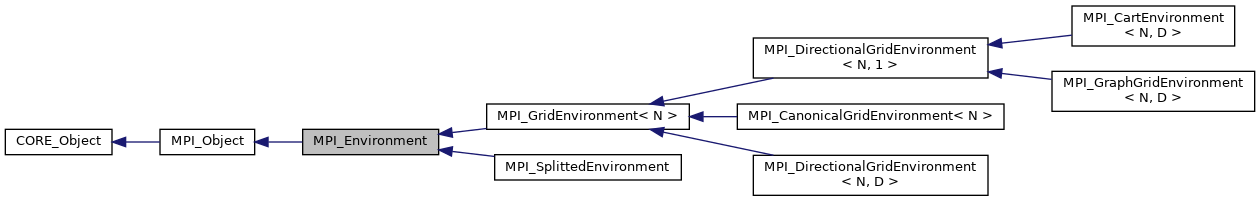

Inheritance diagram for MPI_Environment:

[legend]

Collaboration diagram for MPI_Environment:

Public Member Functions
virtual tMemSize	getMemorySize () const override
	return the memory size of the class

virtual tMemSize	getContentsMemorySize () const override
	return the memory size of the included associations More...

const tMPIComm &	getWorld () const
	get the world of the environment for reading

tMPIComm &	getWorld ()
	get the world of the environment for reading

const tMPICoreId &	getCoresNumber () const
	get the number of cores of this environment of common environment More...

const tMPICoreId &	getCoreId () const
	get the id of the current process of this environment More...

tMPIError	abort (const tMPIError &errCode) const
	abort the process on all cores with the error code More...

tBoolean	synchronize () const
	wait that all the cores has finished her job

tBoolean	isMessageAvaliable (tMPICoreId &source, tMPITag &tag, tMPIBoolean &isAvailable, tMPIStatus &status) const
	test if the message is available frm the environment this More...

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

virtual tString	toString () const
	return the string representation of the object node More...

Static Public Member Functions
static CORE_UniquePointer< MPI_Environment >	New (int argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a test class More...

static CORE_UniquePointer< MPI_Environment >	New (int argc, char *argv[])
	create a test class More...

static void	GetCoresNumber (tMPICoreId &coresNumber)
	get the number of cores More...

static void	GetCoresNumber (const MPI_Environment &env, tMPICoreId &coresNumber)
	get the number of cores More...

static void	GetCoreId (tMPICoreId &id)
	get the id of the current process of common environment More...

static void	GetCoreId (const MPI_Environment &env, tMPICoreId &id)
	get the id of the current process of common environment More...

static tReal	GetTime ()
	get the time More...

static tMPIError	Abort (const MPI_Environment &env, const tMPIError &errCode)
	abort the process on all cores of the environment with the eroor code More...

static tMPIError	Abort (const tMPIError &errCode)
	abort the process on all cores with the error code More...

static tBoolean	Synchronize (const MPI_Environment &env)
	wait that all the core of an environment has finished her job More...

static tBoolean	Synchronize ()
	wait that all the cores has finished her job

static tBoolean	Wait (tMPIRequest &request, tMPIStatus &status)
	wait the end the the communication by blocking More...

static tBoolean	Wait (tMPIRequest &request)
	wait for the request is finished More...

static tBoolean	WaitAll (const tMPICount &nRequests, tMPIRequest requests[], tMPIStatus statuses[])
	wait the end the the communication by blocking More...

static tBoolean	WaitAll (std::valarray< tMPIRequest > &requests)
	wait for all the requests are finished More...

template<size_t D>
static tBoolean	WaitAll (std::array< tMPIRequest, D > &requests)
	wait for all the requests are finished More...

static tBoolean	WaitAll (const tMPICount &nRequests, tMPIRequest *requests)
	wait for all the requests are finished More...

static tBoolean	IsFinished (tMPIRequest &request, tMPIInteger &isFinished)
	test if the requets is finished More...

static tBoolean	IsAllFinished (std::valarray< tMPIRequest > &requests, tMPIInteger &isFinished)
	test if the requets is finished More...

static tBoolean	IsFinished (tMPIRequest &request, tMPIStatus &status, tMPIInteger &isFinished)
	return true if the communication is finished More...

static tBoolean	IsMessageAvaliable (const MPI_Environment &env, tMPICoreId &source, tMPITag &tag, tMPIBoolean &isAvailable, tMPIStatus &status)
	test if a message is available form any tag and any source More...

static tBoolean	IsMessageAvaliable (const MPI_Environment &env, const tMPITag &tag, const tMPICoreId &source, tMPIBoolean &isAvailable)
	test if the message with tag from source is available More...

static tBoolean	IsTagMessageAvaliable (const MPI_Environment &env, const tMPITag &tag, tMPICoreId &source, tMPIBoolean &isAvailable, tMPIStatus &status)
	test if the message with tag is avalaible More...

template<typename T >
static tBoolean	GetCount (const tMPIStatus &status, tMPICount &nElements)
	get the number of element of the message More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	MPI_Environment ()
	create a root environment

	MPI_Environment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_Environment (void)
	destroy

virtual void	initialize ()
	initialize the environment Sets the cores number and the core id of the environment

void	setIsRootEnvironment (const tBoolean &isRoot)
	set true when the environemnt created is a root one but not a common world

Protected Member Functions inherited from MPI_Object
	MPI_Object (void)
	create

virtual	~MPI_Object (void)
	destroy

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

This class is a Environment class to define MPI world.

This class contained

its world id by method getWorld()
the number of the cores of the environment getCoresNumber()
the id of the current core within the environment getCoreId()

At the beginning of the programm all process has to create a root environment as MPI_Environment::New(int argc,char argv[]): it inits the MPI process by calling MPI_Init(&argc,&argv) and at the end of the programm the environemnt class is deleted and the method MPI_Finalize() is called.

All the cores is defined in this root environment

A program can be stopped by the method MPI_Environment::abort(const tMPIError& err) method.

An environment may be splited in others environment by the method:New(const MPI_Environment& parent,const int& subEnvId,const int& coreId) where subEnvId is the id of the environment where the core is and coreId the new id of the core within the environment defined by subEnvId. Note that to set the core to be the process 0 teh subEnvId must be -1. The new environment call MPI_Comm_split() & MPI_Comm_free() methods.

Author: Stephane Despreaux

Version: 2.0

Constructor & Destructor Documentation

◆ MPI_Environment()

MPI_Environment::MPI_Environment	(	int &	argc,
		char *	argv[],
		const tBoolean &	isOpenMPEnabled
	)

inlineprotected

create a root environment

Parameters

[in]	argc	: number of arguments
[in]	argv	: values of arguments
[in]	isOpenMPEnabled	enable both OpenMP & MPI

It choose MPI_THREAD_FUNNELED by default.

MPI_THREAD_SINGLE: Only one thread will execute.
MPI_THREAD_FUNNELED: The process may be multi-threaded, but only the main thread will make MPI calls.
MPI_THREAD_SERIALIZED: The process may be multi-threaded, and multiple threads may make MPI calls, but only one at a time: MPI calls are not made concurrently from two distinct threads.
MPI_THREAD_MULTIPLE: Multiple threads may call MPI, with no restrictions.

Member Function Documentation

◆ Abort() [1/2]

static tMPIError MPI_Environment::Abort	(	const MPI_Environment &	env,
		const tMPIError &	errCode
	)

inlinestatic

abort the process on all cores of the environment with the eroor code

Parameters

[in]	env	: mpi environment in which the operation take place
[in]	errCode	error code

Returns: a MPI code

◆ Abort() [2/2]

static tMPIError MPI_Environment::Abort ( const tMPIError & errCode )

inlinestatic

abort the process on all cores with the error code

Parameters

[in] errCode error code

Returns: a MPI code

◆ abort()

tMPIError MPI_Environment::abort ( const tMPIError & errCode ) const

inline

abort the process on all cores with the error code

Parameters

[in] errCode error code

Returns: a MPI code

◆ getContentsMemorySize()

virtual tMemSize MPI_Environment::getContentsMemorySize ( ) const

inlineoverridevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from CORE_Object.

Reimplemented in MPI_GridEnvironment< N >, MPI_DirectionalGridEnvironment< N, D >, MPI_DirectionalGridEnvironment< N, 1 >, and MPI_CanonicalGridEnvironment< N >.

◆ getCoreId()

const tMPICoreId& MPI_Environment::getCoreId ( ) const

inline

get the id of the current process of this environment

Parameters

[out] id the id of the current core

◆ GetCoreId() [1/2]

static void MPI_Environment::GetCoreId	(	const MPI_Environment &	env,
		tMPICoreId &	id
	)

inlinestatic

get the id of the current process of common environment

Parameters

[in]	env	: MPI environment to get the attribute
[out]	id	the id of the current core

◆ GetCoreId() [2/2]

static void MPI_Environment::GetCoreId ( tMPICoreId & id )

inlinestatic

get the id of the current process of common environment

Parameters

[out] id the id of the current core

◆ getCoresNumber()

const tMPICoreId& MPI_Environment::getCoresNumber ( ) const

inline

get the number of cores of this environment of common environment

Returns: number of cores

◆ GetCoresNumber() [1/2]

static void MPI_Environment::GetCoresNumber	(	const MPI_Environment &	env,
		tMPICoreId &	coresNumber
	)

inlinestatic

get the number of cores

Parameters

[in]	env	: MPI environment to get the attribute
[out]	coresNumber	: number of cores

◆ GetCoresNumber() [2/2]

static void MPI_Environment::GetCoresNumber ( tMPICoreId & coresNumber )

inlinestatic

get the number of cores

Parameters

[out] coresNumber : number of cores

◆ GetCount()

template<typename T >

static tBoolean MPI_Environment::GetCount	(	const tMPIStatus &	status,
		tMPICount &	nElements
	)

inlinestatic

get the number of element of the message

Parameters

[in]	status	:status of the message
[out]	nElements	: number of elemet of type T

◆ GetTime()

static tReal MPI_Environment::GetTime ( )

inlinestatic

get the time

Returns: the time in seconds

◆ IsAllFinished()

static tBoolean MPI_Environment::IsAllFinished	(	std::valarray< tMPIRequest > &	requests,
		tMPIInteger &	isFinished
	)

inlinestatic

test if the requets is finished

Parameters

[in,out]	requests	: requests of communication
[out]	isFinished	: set it to true if all the requests are finished

Returns: true if the requests are finished

◆ IsFinished() [1/2]

static tBoolean MPI_Environment::IsFinished	(	tMPIRequest &	request,
		tMPIInteger &	isFinished
	)

inlinestatic

test if the requets is finished

Parameters

[in,out]	request	: request of communication
[out]	isFinished	: set it to true if the request is finished

Returns: true if the request is finished

◆ IsFinished() [2/2]

static tBoolean MPI_Environment::IsFinished	(	tMPIRequest &	request,
		tMPIStatus &	status,
		tMPIInteger &	isFinished
	)

inlinestatic

return true if the communication is finished

Parameters

[in]	request	: request of the communication
[out]	status	status of the communication
[out]	isFinished	1: if the communication is finished

◆ IsMessageAvaliable() [1/2]

static tBoolean MPI_Environment::IsMessageAvaliable	(	const MPI_Environment &	env,
		const tMPITag &	tag,
		const tMPICoreId &	source,
		tMPIBoolean &	isAvailable
	)

inlinestatic

test if the message with tag from source is available

Parameters

[in]	env	environment of the message
[in]	tag	: tag of the message to test
[in]	source	: source from which the message must be emit
[in,out]	isAvailable	: flag (0,1) to set if the mesage is available

Returns: true if the message is avalaible

◆ IsMessageAvaliable() [2/2]

static tBoolean MPI_Environment::IsMessageAvaliable	(	const MPI_Environment &	env,
		tMPICoreId &	source,
		tMPITag &	tag,
		tMPIBoolean &	isAvailable,
		tMPIStatus &	status
	)

inlinestatic

test if a message is available form any tag and any source

Parameters

[in]	env	environment of the message
[out]	source	: source from which the message must be emit
[out]	tag	: tag of the message to test
[out]	isAvailable	: flag (0,1) to set if the mesage is available
[out]	status	:status of the message

Returns: true if the message is avalaible

◆ isMessageAvaliable()

tBoolean MPI_Environment::isMessageAvaliable	(	tMPICoreId &	source,
		tMPITag &	tag,
		tMPIBoolean &	isAvailable,
		tMPIStatus &	status
	)		const

inline

test if the message is available frm the environment this

Parameters

[out]	source	: source from which the message with tag is emited
[out]	tag	: tag of the message to receive
[in,out]	isAvailable	: flag (0,1) to set if the mesage is available
[out]	status	:status of the message

Returns: true if the message is avaiable

◆ IsTagMessageAvaliable()

static tBoolean MPI_Environment::IsTagMessageAvaliable	(	const MPI_Environment &	env,
		const tMPITag &	tag,
		tMPICoreId &	source,
		tMPIBoolean &	isAvailable,
		tMPIStatus &	status
	)

inlinestatic

test if the message with tag is avalaible

Parameters

[in]	env	environment of the message
[in]	tag	: tag of the message to test
[out]	source	: source from which the message with tag is emited
[in,out]	isAvailable	: flag (0,1) to set if the mesage is available
[out]	status	:status of the message

Returns: true if the message is avalaible

◆ New() [1/2]

static CORE_UniquePointer<MPI_Environment> MPI_Environment::New	(	int	argc,
		char *	argv[]
	)

inlinestatic

create a test class

Parameters

[in]	argc	: number of arguments
[in]	argv	: values of arguments

Returns: a new instance of the class

◆ New() [2/2]

static CORE_UniquePointer<MPI_Environment> MPI_Environment::New	(	int	argc,
		char *	argv[],
		const tBoolean &	isOpenMPEnabled
	)

inlinestatic

create a test class

Parameters

[in]	argc	: number of arguments
[in]	argv	: values of arguments
[in]	isOpenMPEnabled	enable both OpenMP & MPI

Returns: a new instance of the class

◆ Synchronize()

static tBoolean MPI_Environment::Synchronize ( const MPI_Environment & env )

inlinestatic

wait that all the core of an environment has finished her job

Parameters

[in]

env

environment of the cores

◆ Wait() [1/2]

static tBoolean MPI_Environment::Wait ( tMPIRequest & request )

inlinestatic

wait for the request is finished

Returns: true if the wait method has suceeded

◆ Wait() [2/2]

static tBoolean MPI_Environment::Wait	(	tMPIRequest &	request,
		tMPIStatus &	status
	)

inlinestatic

wait the end the the communication by blocking

Parameters

[in,out]	request	request of the message
[in,out]	status	status of the message

◆ WaitAll() [1/4]

static tBoolean MPI_Environment::WaitAll	(	const tMPICount &	nRequests,
		tMPIRequest *	requests
	)

inlinestatic

wait for all the requests are finished

Parameters

[in]	nRequests	: number of requests
[in,out]	requests	requests of communications

Returns: true if the wait method has suceeded

◆ WaitAll() [2/4]

static tBoolean MPI_Environment::WaitAll	(	const tMPICount &	nRequests,
		tMPIRequest	requests[],
		tMPIStatus	statuses[]
	)

inlinestatic

wait the end the the communication by blocking

Parameters

[in]	nRequests	: number of requests to test
[in,out]	requests	requests of communications
[in,out]	statuses	statuses of communications

◆ WaitAll() [3/4]

template<size_t D>

static tBoolean MPI_Environment::WaitAll ( std::array< tMPIRequest, D > & requests )

inlinestatic

wait for all the requests are finished

Template Parameters

D	: number of requests

Parameters

[in,out] requests requests of communications

Returns: true if the wait method has suceeded

◆ WaitAll() [4/4]

static tBoolean MPI_Environment::WaitAll ( std::valarray< tMPIRequest > & requests )

inlinestatic

wait for all the requests are finished

Parameters

[in,out] requests requests of communications

Returns: true if the wait method has suceeded

The documentation for this class was generated from the following file:

/home/despreau/Developpement/CPP/devcpp20/include/mpi/multicores/MPI_Environment.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Constructor & Destructor Documentation

◆ MPI_Environment()

Member Function Documentation

◆ Abort() [1/2]

◆ Abort() [2/2]

◆ abort()

◆ getContentsMemorySize()

◆ getCoreId()

◆ GetCoreId() [1/2]

◆ GetCoreId() [2/2]

◆ getCoresNumber()

◆ GetCoresNumber() [1/2]

◆ GetCoresNumber() [2/2]

◆ GetCount()

◆ GetTime()

◆ IsAllFinished()

◆ IsFinished() [1/2]

◆ IsFinished() [2/2]

◆ IsMessageAvaliable() [1/2]

◆ IsMessageAvaliable() [2/2]

◆ isMessageAvaliable()

◆ IsTagMessageAvaliable()

◆ New() [1/2]

◆ New() [2/2]

◆ Synchronize()

◆ Wait() [1/2]

◆ Wait() [2/2]

◆ WaitAll() [1/4]

◆ WaitAll() [2/4]

◆ WaitAll() [3/4]

◆ WaitAll() [4/4]
