This class is a grid Environment of templated dimension N=1,2,3. More...

#include <MPI_CanonicalGridEnvironment.h>

Inheritance diagram for MPI_CanonicalGridEnvironment< N >:

[legend]

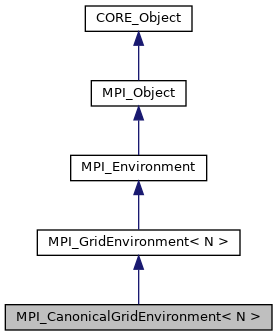

Collaboration diagram for MPI_CanonicalGridEnvironment< N >:

[legend]

Public Member Functions
virtual tMemSize	getMemorySize () const override
	return the memory size of the class

virtual tMemSize	getContentsMemorySize () const override
	return the memory size of the included associations More...

virtual void	initialize ()
	initialize the environment More...

const tMPICoreId &	getFaceNeighbor (const tUCInt &f) const
	get the neighbor core More...

void	getFaceNeighbors (const tUCInt &k, tMPICoreId &previousNeighbor, tMPICoreId &nextNeighbor) const
	get the neighbor cores More...

const std::array< tMPICoreId, 2 *N > &	getFaceNeighbors () const
	get the face neighbor cores More...

Public Member Functions inherited from MPI_GridEnvironment< N >
template<typename Q >
void	setGridSize (const std::array< Q, N > &Ns)
	get the grids number More...

const std::array< tMPICoreId, N > &	getGridSize () const
	get the grids number

template<typename Q >
void	setIndices (const std::array< Q, N > &indices)
	set the indices of the current core More...

const std::array< tMPICoreId, N > &	getIndices () const
	get the indices of the current core within the grid environment

const std::array< tBoolean, N > &	getGridPeriodicity () const
	return the periodicity of the grid

const tBoolean &	isPeriodic (const tUCInt &k) const
	return true if the grid is periodic in direction k More...

template<typename Q >
void	setGridPeriodicity (const std::array< Q, N > &Ts)
	set grid periodicity More...

tMPIError	getCoreIdAtIndices (const std::array< tMPICoreId, N > &indices, tMPICoreId &coreId) const
	the core id within the grid at indices More...

tMPIError	getCoreIndices (const tMPICoreId &coreId, std::array< tMPICoreId, N > &indices) const
	get the indices of the core with coreId More...

Public Member Functions inherited from MPI_Environment
const tMPIComm &	getWorld () const
	get the world of the environment for reading

tMPIComm &	getWorld ()
	get the world of the environment for reading

const tMPICoreId &	getCoresNumber () const
	get the number of cores of this environment of common environment More...

const tMPICoreId &	getCoreId () const
	get the id of the current process of this environment More...

tMPIError	abort (const tMPIError &errCode) const
	abort the process on all cores with the error code More...

tBoolean	synchronize () const
	wait that all the cores has finished her job

tBoolean	isMessageAvaliable (tMPICoreId &source, tMPITag &tag, tMPIBoolean &isAvailable, tMPIStatus &status) const
	test if the message is available frm the environment this More...

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

virtual tString	toString () const
	return the string representation of the object node More...

Static Public Member Functions
static CORE_UniquePointer< SelfClass >	New (const std::array< tMPICoreId, N > &nCoresPerDirection, const std::array< tBoolean, N > &isPeriodicPerDirection, int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a new cart environment More...

static CORE_UniquePointer< SelfClass >	New (const MPI_Environment &parent, const std::array< tMPICoreId, N > &nCoresPerDirection)
	create a new cart grid environment More...

static CORE_UniquePointer< SelfClass >	New (const MPI_Environment &parent, const std::array< tMPICoreId, N > &nCoresPerDirection, const std::array< tMPIBoolean, N > &isPeriodicPerDirection, const int &canCoreIdBeChanged)
	create a new cart grid environment More...

static CORE_UniquePointer< SelfClass >	New (const MPI_Environment &parent, const std::array< tMPICoreId, N > &nCoresPerDirection, const std::array< tBoolean, N > &isPeriodicPerDirection, const int &canCoreIdBeChanged)
	create a new cart grid environment More...

static CORE_UniquePointer< SelfClass >	New (const MPI_CanonicalGridEnvironment< N+1 > &parent, const tUCInt &dir)
	create a hyper plan of the grids perpendicular to dir More...

Static Public Member Functions inherited from MPI_GridEnvironment< N >
static CORE_UniquePointer< SelfClass >	New (const std::array< tMPICoreId, N > &nCoresPerDirection, int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a new cart environment More...

static tMPIError	ComputeGridSize (const MPI_Environment &parent, std::array< tMPICoreId, N > &coresNumber)
	get the cores number per direction if possible More...

static tMPIError	ComputeGridSize (const tMPICoreId &nAvailableCores, std::array< tMPICoreId, N > &coresNumber)
	get the cores number per direction if possible More...

static tBoolean	ComputeGridSize (const std::array< tReal, N > &Hs, const std::array< tInteger, N > &Ns, const tMPICoreId &nCores, std::array< tMPICoreId, N > &Gs)
	compute the grid size in order to minimize the ratio S/V where S is the surface of 1 cpu block and V the volume on 1 cpu block More...

Static Public Member Functions inherited from MPI_Environment
static CORE_UniquePointer< MPI_Environment >	New (int argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a test class More...

static CORE_UniquePointer< MPI_Environment >	New (int argc, char *argv[])
	create a test class More...

static void	GetCoresNumber (tMPICoreId &coresNumber)
	get the number of cores More...

static void	GetCoresNumber (const MPI_Environment &env, tMPICoreId &coresNumber)
	get the number of cores More...

static void	GetCoreId (tMPICoreId &id)
	get the id of the current process of common environment More...

static void	GetCoreId (const MPI_Environment &env, tMPICoreId &id)
	get the id of the current process of common environment More...

static tReal	GetTime ()
	get the time More...

static tMPIError	Abort (const MPI_Environment &env, const tMPIError &errCode)
	abort the process on all cores of the environment with the eroor code More...

static tMPIError	Abort (const tMPIError &errCode)
	abort the process on all cores with the error code More...

static tBoolean	Synchronize (const MPI_Environment &env)
	wait that all the core of an environment has finished her job More...

static tBoolean	Synchronize ()
	wait that all the cores has finished her job

static tBoolean	Wait (tMPIRequest &request, tMPIStatus &status)
	wait the end the the communication by blocking More...

static tBoolean	Wait (tMPIRequest &request)
	wait for the request is finished More...

static tBoolean	WaitAll (const tMPICount &nRequests, tMPIRequest requests[], tMPIStatus statuses[])
	wait the end the the communication by blocking More...

static tBoolean	WaitAll (std::valarray< tMPIRequest > &requests)
	wait for all the requests are finished More...

template<size_t D>
static tBoolean	WaitAll (std::array< tMPIRequest, D > &requests)
	wait for all the requests are finished More...

static tBoolean	WaitAll (const tMPICount &nRequests, tMPIRequest *requests)
	wait for all the requests are finished More...

static tBoolean	IsFinished (tMPIRequest &request, tMPIInteger &isFinished)
	test if the requets is finished More...

static tBoolean	IsAllFinished (std::valarray< tMPIRequest > &requests, tMPIInteger &isFinished)
	test if the requets is finished More...

static tBoolean	IsFinished (tMPIRequest &request, tMPIStatus &status, tMPIInteger &isFinished)
	return true if the communication is finished More...

static tBoolean	IsMessageAvaliable (const MPI_Environment &env, tMPICoreId &source, tMPITag &tag, tMPIBoolean &isAvailable, tMPIStatus &status)
	test if a message is available form any tag and any source More...

static tBoolean	IsMessageAvaliable (const MPI_Environment &env, const tMPITag &tag, const tMPICoreId &source, tMPIBoolean &isAvailable)
	test if the message with tag from source is available More...

static tBoolean	IsTagMessageAvaliable (const MPI_Environment &env, const tMPITag &tag, tMPICoreId &source, tMPIBoolean &isAvailable, tMPIStatus &status)
	test if the message with tag is avalaible More...

template<typename T >
static tBoolean	GetCount (const tMPIStatus &status, tMPICount &nElements)
	get the number of element of the message More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	MPI_CanonicalGridEnvironment ()
	create a root environment

	MPI_CanonicalGridEnvironment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_CanonicalGridEnvironment (void)
	destroy

void	setFaceNeighbors (const std::array< tMPICoreId, N > &nGrids, const std::array< tMPICoreId, N > &indices, const std::array< tBoolean, N > &isPeriodic)
	set the face neighbors from directional neighbors More...

Protected Member Functions inherited from MPI_GridEnvironment< N >
	MPI_GridEnvironment ()
	create a root environment

	MPI_GridEnvironment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_GridEnvironment (void)
	destroy

Protected Member Functions inherited from MPI_Environment
	MPI_Environment ()
	create a root environment

	MPI_Environment (int &argc, char *argv[], const tBoolean &isOpenMPEnabled)
	create a root environment More...

virtual	~MPI_Environment (void)
	destroy

void	setIsRootEnvironment (const tBoolean &isRoot)
	set true when the environemnt created is a root one but not a common world

Protected Member Functions inherited from MPI_Object
	MPI_Object (void)
	create

virtual	~MPI_Object (void)
	destroy

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

template<tUCInt N>
class MPI_CanonicalGridEnvironment< N >

This class is a grid Environment of templated dimension N=1,2,3.

Template Parameters

N	: size of the space N=1,2,3

To create a grid from a pranet environment call MPI_GridEnvironment::New(const MPI_Environment& parent,const std::array<tMPICoreId,N>& nCoresPerDirections,const std::array<tBoolean,N>& isPeriodicPerDirections,const tBoolean& canCoreIdBeChanged) .

the nCoresPerDirections array can be set to 0 and it can be built by the method GetGridsNumber(parent.getCoresNumber(),nCoresPerDirections).

To get the indices & thge coreId of the current process per direction, call the method getCoreId(std::array<tMPICoreId,N>& indices,tMPICoreId& coreId) :

To get the coordinates of a process within the grid, call the method getIndices(std::array<tMPICoreId,N>& indices

To create an hyperplan of the grid call New(onst MPI_GridEnvironment<N>& parent,const tUCInt& dir) where dir is the normal of the hyperplan

Author: Stephane Despreaux

Version: 2.0

Constructor & Destructor Documentation

◆ MPI_CanonicalGridEnvironment()

template<tUCInt N>

MPI_CanonicalGridEnvironment< N >::MPI_CanonicalGridEnvironment	(	int &	argc,
		char *	argv[],
		const tBoolean &	isOpenMPEnabled
	)

inlineprotected

create a root environment

Parameters

[in]	argc	: number of arguments
[in]	argv	: values of arguments
[in]	isOpenMPEnabled	enable both OpenMP & MPI

It choose MPI_THREAD_FUNNELED by default.

MPI_THREAD_SINGLE: Only one thread will execute.
MPI_THREAD_FUNNELED: The process may be multi-threaded, but only the main thread will make MPI calls.
MPI_THREAD_SERIALIZED: The process may be multi-threaded, and multiple threads may make MPI calls, but only one at a time: MPI calls are not made concurrently from two distinct threads.
MPI_THREAD_MULTIPLE: Multiple threads may call MPI, with no restrictions.

Member Function Documentation

◆ getContentsMemorySize()

template<tUCInt N>

virtual tMemSize MPI_CanonicalGridEnvironment< N >::getContentsMemorySize ( ) const

inlineoverridevirtual

return the memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from MPI_GridEnvironment< N >.

◆ getFaceNeighbor()

template<tUCInt N>

const tMPICoreId& MPI_CanonicalGridEnvironment< N >::getFaceNeighbor ( const tUCInt & f ) const

inline

get the neighbor core

Parameters

[in] f index of the face in [0,2*N[

Returns: the core id next to face

◆ getFaceNeighbors() [1/2]

template<tUCInt N>

const std::array<tMPICoreId,2*N>& MPI_CanonicalGridEnvironment< N >::getFaceNeighbors ( ) const

inline

get the face neighbor cores

Returns: the neighbors of all faces

◆ getFaceNeighbors() [2/2]

template<tUCInt N>

void MPI_CanonicalGridEnvironment< N >::getFaceNeighbors	(	const tUCInt &	k,
		tMPICoreId &	previousNeighbor,
		tMPICoreId &	nextNeighbor
	)		const

inline

get the neighbor cores

Parameters

[in]	k	index of the direction in [0,N[
[out]	previousNeighbor	: neighbor in the direction -e_k
[out]	nextNeighbor	: neighbor in the direction +e_k

◆ initialize()

template<tUCInt N>

virtual void MPI_CanonicalGridEnvironment< N >::initialize ( )

inlinevirtual

initialize the environment

Sets the cores number & core id of the core
Sets the grid size , the indice of the core within the grid size
Sets the periodicity of the grid

Reimplemented from MPI_GridEnvironment< N >.

◆ New() [1/5]

template<tUCInt N>

static CORE_UniquePointer<SelfClass> MPI_CanonicalGridEnvironment< N >::New	(	const MPI_CanonicalGridEnvironment< N+1 > &	parent,
		const tUCInt &	dir
	)

inlinestatic

create a hyper plan of the grids perpendicular to dir

Parameters

[in]	parent	: parent grid
[in]	dir	normal of the hyper plan

Returns: an hyperplan environment

◆ New() [2/5]

template<tUCInt N>

static CORE_UniquePointer<SelfClass> MPI_CanonicalGridEnvironment< N >::New	(	const MPI_Environment &	parent,
		const std::array< tMPICoreId, N > &	nCoresPerDirection
	)

inlinestatic

create a new cart grid environment

Parameters

[in]	parent	: parent environment
[in]	nCoresPerDirection	: an array of size nDirections with the number of cores per direction

Returns: a new grid environment

◆ New() [3/5]

template<tUCInt N>

static CORE_UniquePointer<SelfClass> MPI_CanonicalGridEnvironment< N >::New	(	const MPI_Environment &	parent,
		const std::array< tMPICoreId, N > &	nCoresPerDirection,
		const std::array< tBoolean, N > &	isPeriodicPerDirection,
		const int &	canCoreIdBeChanged
	)

inlinestatic

create a new cart grid environment

Parameters

[in]	parent	: parent environment
[in]	nCoresPerDirection	: an array of size nDirections with the number of cores per direction
[in]	isPeriodicPerDirection	: an array of size nDirections to indicates the peridicity of direction
[in]	canCoreIdBeChanged	: true to modify the core id

Returns: a new grid environment

◆ New() [4/5]

template<tUCInt N>

static CORE_UniquePointer<SelfClass> MPI_CanonicalGridEnvironment< N >::New	(	const MPI_Environment &	parent,
		const std::array< tMPICoreId, N > &	nCoresPerDirection,
		const std::array< tMPIBoolean, N > &	isPeriodicPerDirection,
		const int &	canCoreIdBeChanged
	)

inlinestatic

create a new cart grid environment

Parameters

[in]	parent	: parent environment
[in]	nCoresPerDirection	: an array of size nDirections with the number of cores per direction
[in]	isPeriodicPerDirection	: an array of size nDirections to indicates the peridicity of direction
[in]	canCoreIdBeChanged	: true to modify the core id

Returns: a new grid environment

◆ New() [5/5]

template<tUCInt N>

static CORE_UniquePointer<SelfClass> MPI_CanonicalGridEnvironment< N >::New	(	const std::array< tMPICoreId, N > &	nCoresPerDirection,
		const std::array< tBoolean, N > &	isPeriodicPerDirection,
		int &	argc,
		char *	argv[],
		const tBoolean &	isOpenMPEnabled
	)

inlinestatic

create a new cart environment

Parameters

[in]	nCoresPerDirection	: an array of size nDirections with the number of cores per direction
[in]	isPeriodicPerDirection	: periodicity of the grid
[in]	argc	: number of arguments
[in]	argv	: values of arguments
[in]	isOpenMPEnabled	enable both OpenMP & MPI

Returns: a new grid environment

◆ setFaceNeighbors()

template<tUCInt N>

void MPI_CanonicalGridEnvironment< N >::setFaceNeighbors	(	const std::array< tMPICoreId, N > &	nGrids,
		const std::array< tMPICoreId, N > &	indices,
		const std::array< tBoolean, N > &	isPeriodic
	)

inlineprotected

set the face neighbors from directional neighbors

Parameters

[in]	dirNeighbors	neighbor per dierction
[out]	faceNeighbors	neighbor core per face Buils the faceNeighbors by taking the neighbor core within the dirNeighbors

The documentation for this class was generated from the following file:

/home/despreau/Developpement/CPP/devcpp20/include/mpi/multicores/MPI_CanonicalGridEnvironment.h

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

template<tUCInt N> class MPI_CanonicalGridEnvironment< N >

Constructor & Destructor Documentation

◆ MPI_CanonicalGridEnvironment()

Member Function Documentation

◆ getContentsMemorySize()

◆ getFaceNeighbor()

◆ getFaceNeighbors() [1/2]

◆ getFaceNeighbors() [2/2]

◆ initialize()

◆ New() [1/5]

◆ New() [2/5]

◆ New() [3/5]

◆ New() [4/5]

◆ New() [5/5]

◆ setFaceNeighbors()

template<tUCInt N>
class MPI_CanonicalGridEnvironment< N >
