This class is a interface class to send / receive message with primitive type T from one to core to one core. More...

#include <MPI_CoreToCoreMessage.h>

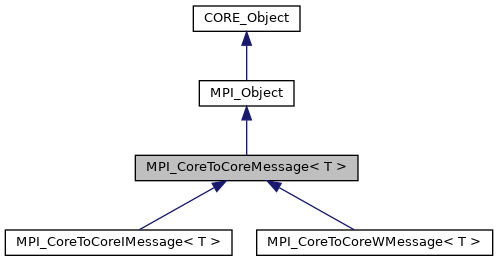

Inheritance diagram for MPI_CoreToCoreMessage< T >:

[legend]

Collaboration diagram for MPI_CoreToCoreMessage< T >:

Public Member Functions
virtual tMemSize	getMemorySize () const override
	return the memory size of the class

virtual tMemSize	getContentsMemorySize () const override
	return nthe memory size of the included associations More...

virtual void	send (const MPI_Environment &env, const tMPICoreId &dstCore, const std::valarray< T > &data, const tMPITag &tag)=0
	sending a data with flag to dstCore More...

virtual void	send (const MPI_Environment &env, const tMPICoreId &dstCore, const T *data, const tMPICount &nData, const tMPIType &dataType, const tMPITag &tag)=0
	blocking send a data with tag to dstCore More...

virtual void	receive (const MPI_Environment &env, const tMPICoreId &srcCore, std::valarray< T > &data, const tMPITag &tag)=0
	receiving a data with flag to dstCore More...

virtual void	receive (const MPI_Environment &env, const tMPICoreId &dstCore, T *buffer, const tMPICount &nData, const tMPIType &dataType, const tMPITag &tag)=0
	blocking send a data with tag to dstCore More...

virtual void	sendNReceive (const MPI_Environment &env, const tMPICoreId &dstCore, const tMPICoreId &srcCore, const T &sentData, const tMPITag &sentTag, T &receivedData, const tMPITag &receivedTag)=0
	receiving a data with flag to dstCore More...

virtual void	sendNReceive (const MPI_Environment &env, const tMPICoreId &dstCore, const tMPICoreId &srcCore, const std::valarray< T > &sentData, const tMPITag &sentTag, std::valarray< T > &receivedData, const tMPITag &receivedTag)=0
	receiving a data with flag to dstCore More...

virtual void	sendNReceive (const MPI_Environment &env, const tMPICoreId &dstCore, const tMPICoreId &srcCore, const T sentData, const tMPICount &nSentData, const tMPIType &sentDataType, const tMPITag &sentTag, T receivedData, const tMPICount &nReceivedData, const tMPIType &receivedDataType, const tMPITag &receivedTag)=0
	receiving a data with flag to dstCore More...

virtual void	exchange (const MPI_Environment &env, const tMPICoreId &srcCore, std::valarray< T > &data, const tMPITag &tag)=0
	receiving a data with flag to dstCore More...

virtual void	getElementsNumber (tMPICount &nElements)=0
	get the number of element of the message More...

virtual int	wait ()=0
	wait the end of the message communications

virtual tBoolean	isFinished ()=0
	test if the message communication is finished

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

virtual tString	toString () const
	return the string representation of the object node More...

Static Public Member Functions
static tULLInt	WaitAllMessages (const std::vector< CORE_UniquePointer< MPI_CoreToCoreMessage< T >>> &messages)
	wait for the end of communication of all messages More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	MPI_CoreToCoreMessage ()
	create

virtual	~MPI_CoreToCoreMessage (void)
	destroy

Protected Member Functions inherited from MPI_Object
	MPI_Object (void)
	create

virtual	~MPI_Object (void)
	destroy

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

template<typename T>
class MPI_CoreToCoreMessage< T >

This class is a interface class to send / receive message with primitive type T from one to core to one core.

Template Parameters

T	: type of message to exchange

Author: Stephane Despreaux

Version: 2.0

Member Function Documentation

◆ exchange()

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::exchange	(	const MPI_Environment &	env,
		const tMPICoreId &	srcCore,
		std::valarray< T > &	data,
		const tMPITag &	tag
	)

pure virtual

receiving a data with flag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	srcCore	id of the source core
[in]	data	data to receive
[in]	taf	tagof the data

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ getContentsMemorySize()

template<typename T >

virtual tMemSize MPI_CoreToCoreMessage< T >::getContentsMemorySize ( ) const

inlineoverridevirtual

return nthe memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from CORE_Object.

Reimplemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ getElementsNumber()

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::getElementsNumber ( tMPICount & nElements )

pure virtual

get the number of element of the message

Parameters

[out] nElements : number of elemet of type T

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ receive() [1/2]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::receive	(	const MPI_Environment &	env,
		const tMPICoreId &	dstCore,
		T *	buffer,
		const tMPICount &	nData,
		const tMPIType &	dataType,
		const tMPITag &	tag
	)

pure virtual

blocking send a data with tag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	dstCore	id of the destination core
[in]	buffer	adress of the buffet to receive data
[in]	nData	number of dataType to receive
[in]	dataType	data type
[in]	tag	tag of the data

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ receive() [2/2]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::receive	(	const MPI_Environment &	env,
		const tMPICoreId &	srcCore,
		std::valarray< T > &	data,
		const tMPITag &	tag
	)

pure virtual

receiving a data with flag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	srcCore	id of the source core
[in]	data	data to receive
[in]	tag	tag of the data

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ send() [1/2]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::send	(	const MPI_Environment &	env,
		const tMPICoreId &	dstCore,
		const std::valarray< T > &	data,
		const tMPITag &	tag
	)

pure virtual

sending a data with flag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	dstCore	id of the destination core
[in]	data	data to send
[in]	tag	: tag of the sending message

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ send() [2/2]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::send	(	const MPI_Environment &	env,
		const tMPICoreId &	dstCore,
		const T *	data,
		const tMPICount &	nData,
		const tMPIType &	dataType,
		const tMPITag &	tag
	)

pure virtual

blocking send a data with tag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	dstCore	id of the destination core
[in]	buffer	: buffer of the data
[in]	nData	number of data of type dataType to send
[in]	tag	tag of the data

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ sendNReceive() [1/3]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::sendNReceive	(	const MPI_Environment &	env,
		const tMPICoreId &	dstCore,
		const tMPICoreId &	srcCore,
		const std::valarray< T > &	sentData,
		const tMPITag &	sentTag,
		std::valarray< T > &	receivedData,
		const tMPITag &	receivedTag
	)

pure virtual

receiving a data with flag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	dstCore	id of the dst Core of the sent data
[in]	srcCore	id of the src Core of the received data
[in]	sentData	data to sent
[in]	sentTag	tag of thesent message
[in]	receivedData	data to receive
[in]	receiveTag	tag of the received message

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ sendNReceive() [2/3]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::sendNReceive	(	const MPI_Environment &	env,
		const tMPICoreId &	dstCore,
		const tMPICoreId &	srcCore,
		const T &	sentData,
		const tMPITag &	sentTag,
		T &	receivedData,
		const tMPITag &	receivedTag
	)

pure virtual

receiving a data with flag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	dstCore	id of the dst Core of the sent data
[in]	srcCore	id of the src Core of the received data
[in]	sentData	data to sent
[in]	sentTag	tag of thesent message
[in]	receivedData	data to receive
[in]	receivedTag	tag of the received message

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ sendNReceive() [3/3]

template<typename T >

virtual void MPI_CoreToCoreMessage< T >::sendNReceive	(	const MPI_Environment &	env,
		const tMPICoreId &	dstCore,
		const tMPICoreId &	srcCore,
		const T *	sentData,
		const tMPICount &	nSentData,
		const tMPIType &	sentDataType,
		const tMPITag &	sentTag,
		T *	receivedData,
		const tMPICount &	nReceivedData,
		const tMPIType &	receivedDataType,
		const tMPITag &	receivedTag
	)

pure virtual

receiving a data with flag to dstCore

Parameters

[in]	env	environment of the destination Core
[in]	dstCore	id of the dst core to the sent data from current core
[in]	srcCore	id of the src core from the received data to current core
[in]	sentData	data to sent
[in]	nSentData	number of data to sent
[in]	sentDataType	type of data to sent
[in]	sentTag	tag of thesent message
[in]	receivedData	data to receive
[in]	nReceivedData	number of data to receive
[in]	receivedDataType	type of data to receive
[in]	receivedTag	tag of the received message

Implemented in MPI_CoreToCoreWMessage< T >, and MPI_CoreToCoreIMessage< T >.

◆ WaitAllMessages()

template<typename T >

static tULLInt MPI_CoreToCoreMessage< T >::WaitAllMessages ( const std::vector< CORE_UniquePointer< MPI_CoreToCoreMessage< T >>> & messages )

inlinestatic

wait for the end of communication of all messages

Parameters

[in] messages : list of messages

Returns: the cpu time of waiting in seconds

The documentation for this class was generated from the following file:

/home/despreau/Developpement/CPP/devcpp20/include/mpi/multicores/MPI_CoreToCoreMessage.h
