this class loads classes of the package More...

#include <SM_Loader.h>

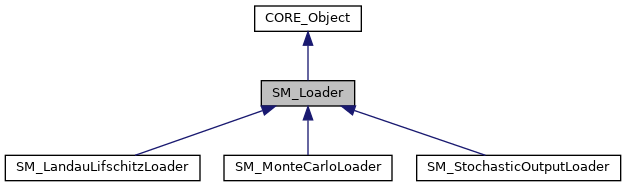

Inheritance diagram for SM_Loader:

[legend]

Collaboration diagram for SM_Loader:

Public Member Functions
	SM_Loader ()
	build a SM_Loader

virtual	~SM_Loader (void)
	destroy a SM_Loader

virtual tMemSize	getMemorySize () const override
	return the memory size of the class and the memory size of all its attributes/associations More...

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

virtual tMemSize	getContentsMemorySize () const
	return nthe memory size of the included associations More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

virtual tString	toString () const
	return the string representation of the object node More...

Static Public Member Functions
static tBoolean	LoadBeamFromOptions (SM_Beam &beam, const CORE_OptionsList &options)
	load the beam from options More...

static tBoolean	LoadSystemFromOptions (SM_System &system, const CORE_OptionsList &options)
	load the system from options More...

static tBoolean	LoadNetworkFromOptions (SM_Network &network, const SM_CrystalStructure &cStructure, const CORE_OptionsList &options)
	load the network from options More...

static tBoolean	LoadMaterialFromOptions (SM_Material &material, const CORE_OptionsList &options)
	load the material form options More...

static tBoolean	LoadCrystalStructureFromOptions (SM_CrystalStructure &cStructure, const CORE_OptionsList &options)
	load crystal structure from options More...

static tBoolean	LoadSystemOperatorsFromOptions (SM_System &system, const CORE_OptionsList &options)
	load the operators of the system More...

static tBoolean	LoadSystemInitialMagneticMomentDirectionsFromOptions (SM_System &system, const CORE_OptionsList &options)
	load the dierction of initial magnetic moments of the system More...

static tBoolean	LoadSystemNoiseFromOptions (SM_System &system, const CORE_OptionsList &options)
	load the noise of the system More...

static tBoolean	LoadStochasticOutputFromOptions (SM_StochasticOutputComponent &outputSData, const CORE_OptionsList &options)
	load the stochastic outputs for the runer More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Additional Inherited Members
Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

this class loads classes of the package

Member Function Documentation

◆ getMemorySize()

virtual tMemSize SM_Loader::getMemorySize ( ) const

inlineoverridevirtual

return the memory size of the class and the memory size of all its attributes/associations

Returns

the memory size of the class and the memory size of its attributes/associations in bytes The mamory size is :

the added size of the base classes which contains:
- the primary attributes size depends on the order: (first delare the smallest attributes size
- all virtual functions costs <pointer-size> (4 32xor 8 64x) bytes by virtual function
- virtual inherihtance will increase of (4 or 8) bytes
we add the size of the contains values of the attributes : for example the size of a string is the length of the string 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from CORE_Object.

Reimplemented in SM_MonteCarloLoader, SM_StochasticOutputLoader, and SM_LandauLifschitzLoader.

◆ LoadBeamFromOptions()

tBoolean SM_Loader::LoadBeamFromOptions	(	SM_Beam &	beam,
		const CORE_OptionsList &	options
	)

static

load the beam from options

Parameters

[in,out]	beam	: beam to load
[in]	options	options of the builder It loads : the beam size with option="simulation-number" the stochastic function with options "random-distribution","random-generator","seed"

◆ LoadCrystalStructureFromOptions()

tBoolean SM_Loader::LoadCrystalStructureFromOptions	(	SM_CrystalStructure &	cStructure,
		const CORE_OptionsList &	options
	)

static

load crystal structure from options

Parameters

[in,out]	cStructure	stcuture to load to load
[in]	options	options of the builder

◆ LoadMaterialFromOptions()

tBoolean SM_Loader::LoadMaterialFromOptions	(	SM_Material &	material,
		const CORE_OptionsList &	options
	)

static

load the material form options

Parameters

[in,out]	material	material to load
[in]	options	options of the builder It loads : -name of material with option "material-name" -atomic magnetic moment of material in \( \mu_B\) with option "mu_s" -exchange coefficient in J/link of material with option "J" -anisotropy constant in J/atom of material with option "Ku" -anisotropy directions of material with option "U" -anisotropy type of material with option "crystal-type"

◆ LoadNetworkFromOptions()

tBoolean SM_Loader::LoadNetworkFromOptions	(	SM_Network &	network,
		const SM_CrystalStructure &	cStructure,
		const CORE_OptionsList &	options
	)

static

load the network from options

Parameters

[in,out]	network	: net to load
[in]	cStructure	: crystal structure used to build the network
[in]	options	options of the builder It loads : unit cell size with option "network-cell-size" number of structures of the network with option "network-size" periodicity of the network with options "network-periodicity"

◆ LoadStochasticOutputFromOptions()

tBoolean SM_Loader::LoadStochasticOutputFromOptions	(	SM_StochasticOutputComponent &	outputSData,
		const CORE_OptionsList &	options
	)

static

load the stochastic outputs for the runer

Parameters

[in,out]	outputSData	stochastic output data for generating stochastic properties
[in]	options	options of the builder If loads its output path with option "output-path" its output prefix with option "output-prefix" its drawns number during the system running with opton s"stochastic-drawns-number"

◆ LoadSystemFromOptions()

tBoolean SM_Loader::LoadSystemFromOptions	(	SM_System &	system,
		const CORE_OptionsList &	options
	)

static

load the system from options

Parameters

[in,out]	system	: system to load
[in]	options	options of the builder -It creates: its network by the option "network" -It loads its network its materials its operators -It initializes the direction of magnetic moment with option "-S0" the adimensionizing of the parameters with options "adimensionnized" the noise options

◆ LoadSystemInitialMagneticMomentDirectionsFromOptions()

tBoolean SM_Loader::LoadSystemInitialMagneticMomentDirectionsFromOptions	(	SM_System &	system,
		const CORE_OptionsList &	options
	)

static

load the dierction of initial magnetic moments of the system

Parameters

[in,out]	system	: system to load
[in]	options	options of the builder

◆ LoadSystemNoiseFromOptions()

tBoolean SM_Loader::LoadSystemNoiseFromOptions	(	SM_System &	system,
		const CORE_OptionsList &	options
	)

static

load the noise of the system

Parameters

[in,out]	system	: system to load
[in]	options	options of the builder It creates noise with option "temperature". The noise rate is computed using the adimensionized material data

◆ LoadSystemOperatorsFromOptions()

tBoolean SM_Loader::LoadSystemOperatorsFromOptions	(	SM_System &	system,
		const CORE_OptionsList &	options
	)

static

load the operators of the system

Parameters

[in,out]	system	: system to load
[in]	options	options of the builder It creates operators with options "use-zeeman", "use-exchange","use-anisotropy","use-dipolar", "use-macro-cell-dipolar"

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/stochmagnet/core/SM_Loader.h
/home/despreau/Developpement/CPP/devcpp20/src/stochmagnet/core/SM_Loader.cpp
