This class describes an ellipsoide CYLINDER from. More...

#include <EXPR_Cylinder.h>

Inheritance diagram for EXPR_Cylinder:

[legend]

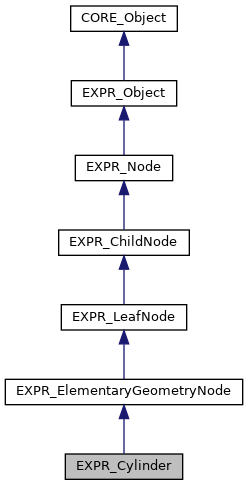

Collaboration diagram for EXPR_Cylinder:

[legend]

Public Member Functions
virtual tMemSize	getMemorySize () const override
	return the memory size of the class More...

virtual tMemSize	getContentsMemorySize () const override
	return nthe memory size of the included associations More...

virtual CORE_UniquePointer< EXPR_ElementaryGeometryNode >	newInstance () const override
	create a new instance of this More...

virtual void	copy (const EXPR_Node &node) override
	copy More...

virtual void	setArguments (const std::vector< tString > &args) override
	set the argument to define the geometry More...

void	setCenter (const std::array< tReal, 3 > &X)
	set the center of the botton ellipsoide More...

void	setCenter (std::initializer_list< tReal > &&X)
	set the center More...

const std::array< tReal, 3 > &	getCenter () const
	get the center More...

void	setMainDirection (const std::array< tReal, 3 > &U)
	set the main direction More...

void	setMainDirection (std::initializer_list< tReal > &&U)
	set the main direction More...

const std::array< tReal, 3 > &	getMainDirection () const
	get the main direction More...

void	setSecondDirection (const std::array< tReal, 3 > &U)
	set the second direction More...

void	setSecondDirection (std::initializer_list< tReal > &&U)
	set the second direction More...

const std::array< tReal, 3 > &	getSecondDirection () const
	get the second direction More...

void	setLength (const tReal &L)
	set the length of the cylinder More...

const tReal &	getLength () const
	get the length of the cylinder More...

void	setMainRadius (const tReal &L)
	set the half-length along main direction More...

const tReal &	getMainRadius () const
	get the half-length along main direction More...

void	setSecondRadius (const tReal &L)
	set the half-length along secund direction More...

const tReal &	getSecondRadius () const
	get the half-length along secund direction More...

void	orthogonalize ()
	orthogonalize the data

virtual void	adimensionize (const tReal &L) final
	adimensionize the cylinder More...

virtual tString	toString () const final
	return the string representation of this More...

Public Member Functions inherited from EXPR_ElementaryGeometryNode
const tString &	getName () const
	get name More...

virtual tBoolean	isInside (std::array< tReal, 3 > P) const override
	return true if the point is in the node More...

void	computeBoundingBox ()
	compute the bounding box of the geometry taking into account the transformation of node

virtual void	computeBoundingBox (std::map< tString, tBoolean > &alreadyComputed) override
	compute the bounding box of the node More...

virtual void	adimensionize (const tReal &L, std::map< tString, tBoolean > &alreadyComputed) override
	adimensionize the node More...

Public Member Functions inherited from EXPR_Node
void	setAlpha (std::initializer_list< tReal > &&alpha)
	set the matrix alpha by row More...

void	setBeta (std::initializer_list< tReal > &&beta)
	set the constant by column More...

void	addToBeta (std::initializer_list< tReal > &&beta)
	add to the constant by column More...

const std::array< tReal, 3 > &	getBeta () const
	get the beta value More...

const std::array< tReal, 9 > &	getAlpha () const
	get the alpha value More...

void	leftComposition (const std::array< tReal, 9 > &A, const std::array< tReal, 3 > &B)
	compose by the affine function \( (A.x+B) \circ (\alpha. x +\beta) \) More...

void	leftComposition (const std::array< tReal, 9 > &A)
	compose by the affine function \( (A.x) \circ (\alpha. x +\beta) \) More...

void	rotation (const tReal &theta)
	compute the rotation of the geometry with angle theta and k-axis More...

void	rotation (const tReal &theta, const tReal &Ax, const tReal &Ay, const tReal &Az)
	compute the rotation of the geometry with angle theta and axis (Ax,Ay,Az) More...

void	rotation (const tReal &theta, const tReal &Ax, const tReal &Ay, const tReal &Az, const tReal &Cx, const tReal &Cy, const tReal &Cz)
	compute the rotation of the geometry with angle theta and axis (Ax,Ay,Az)a and center (Cx,Cy,Cz) More...

void	translate (const std::array< tReal, 3 > &T)
	translate the geometry More...

const std::array< tReal, 3 > &	getBoundingBoxMinPoint () const
	get the min point bounding box of the node for reading More...

const std::array< tReal, 3 > &	getBoundingBoxMaxPoint () const
	get the max point bounding box of the node for reading More...

std::array< tReal, 3 > &	getBoundingBoxMinPoint ()
	get the min point bounding box of the node for writing More...

std::array< tReal, 3 > &	getBoundingBoxMaxPoint ()
	get the max point bounding box of the node for writing More...

tBoolean	isInsideBoundingBox (const std::array< tReal, 3 > &P) const
	return true if the point P is in the bounding box More...

Public Member Functions inherited from CORE_Object
template<class T >
std::shared_ptr< T >	getSharedPointer ()
	return the shared pointer for this More...

template<class T >
std::shared_ptr< const T >	getConstSharedPointer () const
	return a const shared pointer for this More...

template<class T >
tBoolean	isInstanceOf () const
	test if the clas T is an instance of this class More...

tString	getClassName () const
	return the name of the class More...

tString	getPointerString () const
	retrun the pointer of the class as a string More...

tString	getIdentityString () const
	retrun the string identification of the class More...

Static Public Member Functions
static CORE_UniquePointer< EXPR_Cylinder >	New ()
	crete the new instance of this More...

Static Public Member Functions inherited from EXPR_ElementaryGeometryNode
static void	GetSphericalCoordinates (const std::array< tReal, 3 > &M, const std::array< tReal, 3 > &C, tReal &r, tReal &theta, tReal &phi)
	get the spherical coordinate of the point M with center C, radius r, inclination theta and azimuth phi More...

Static Public Member Functions inherited from EXPR_Node
static void	SetEpsilon (const tReal &eps)
	set the tolerance error More...

static const tReal &	GetEpsilon ()
	get the tolerance error More...

Static Public Member Functions inherited from CORE_Object
static tBoolean	EnableMemoryStack (const tBoolean &isMemoryChecked)
	enable the memory stack More...

static void	EnableMemoryStack ()
	enable the memory stack

static void	DisableMemoryStack ()
	disable the memory stack

static tBoolean	IsMemoryStackEnabled ()
	return trur if the memory stack is enabled

static tString	MemoryStackToString ()
	get the memory stack in string More...

static tIndex	GetRegisteredClassesNumber ()
	get the memory stack in string More...

Protected Member Functions
	EXPR_Cylinder ()
	create the class

virtual	~EXPR_Cylinder ()
	delete the class

virtual tBoolean	isInsideCanonicalGeometry (const std::array< tReal, 3 > &P) const final
	return true if the point is inside the canonical geometry More...

virtual void	computeCanonicalBoundingBox (std::array< tReal, 3 > &minPoint, std::array< tReal, 3 > &maxPoint) const final
	compute the bounding box of the geometry More...

Protected Member Functions inherited from EXPR_ElementaryGeometryNode
	EXPR_ElementaryGeometryNode ()
	create the class

virtual	~EXPR_ElementaryGeometryNode ()
	delete the class

void	setName (const tString &name)
	set name More...

Protected Member Functions inherited from EXPR_LeafNode
	EXPR_LeafNode ()
	create the class

virtual	~EXPR_LeafNode ()
	delete the class

Protected Member Functions inherited from EXPR_ChildNode
	EXPR_ChildNode ()
	create the class

virtual	~EXPR_ChildNode ()
	delete the class

Protected Member Functions inherited from EXPR_Node
	EXPR_Node ()
	create the class

virtual	~EXPR_Node ()
	delete the class

void	apply (std::array< tReal, 3 > &P) const
	apply the transformation to point P \( Q:=F(P)=mAlpha.P+mBeta \) More...

tBoolean	apply (const std::array< tReal, 3 > &P, std::array< tReal, 3 > &Q) const
	apply the transformation to point P \( Q:=F(P)=mAlpha.P+mBeta \) More...

void	applyInverse (std::array< tReal, 3 > &P) const
	apply the inverse transformation to point P \( Q:=F^{-1}(P)=\alpha^{-1}.(P-\beta) \) More...

tBoolean	applyInverse (const std::array< tReal, 3 > &P, std::array< tReal, 3 > &Q) const
	apply the inverse transformation to point P \( Q:=F^{-1}(P)=\alpha^{-1}.(P-\beta) \) More...

void	linearTransformBoundingBox (std::array< tReal, 3 > &P, std::array< tReal, 3 > &Q) const
	compute the bounding box after transformation More...

Protected Member Functions inherited from EXPR_Object
	EXPR_Object (void)
	create the class

virtual	~EXPR_Object (void)
	delete the class

Protected Member Functions inherited from CORE_Object
	CORE_Object ()
	build an instance of the object

virtual	~CORE_Object ()
	destroy the instance of object std

Detailed Description

This class describes an ellipsoide CYLINDER from.

the center of the ellipsoide C
the two directions of the ellipsoide U,V |U|=a |V|=b where a,b are the radiuses of the ellipsoide along normal direction defined in the plane (U,V)
the length of the cylinder along its axis U^V

Author
Stephane Despreaux

Version
1.0

Member Function Documentation

◆ adimensionize()

void EXPR_Cylinder::adimensionize ( const tReal & L )

finalvirtual

adimensionize the cylinder

Parameters

[in] L : the reference length

Implements EXPR_ElementaryGeometryNode.

◆ computeCanonicalBoundingBox()

void EXPR_Cylinder::computeCanonicalBoundingBox	(	std::array< tReal, 3 > &	minPoint,
		std::array< tReal, 3 > &	maxPoint
	)		const

finalprotectedvirtual

compute the bounding box of the geometry

Parameters

[out]	minPoint	min point of the bounding box ie left bottom point
[out]	maxPoint	max point of the bounding box ie right top point

Implements EXPR_ElementaryGeometryNode.

◆ copy()

virtual void EXPR_Cylinder::copy ( const EXPR_Node & node )

inlineoverridevirtual

copy

Parameters

node	the node to copy

Reimplemented from EXPR_ElementaryGeometryNode.

◆ getCenter()

const std::array<tReal,3>& EXPR_Cylinder::getCenter ( ) const

inline

get the center

Returns: the center of the bottom ellipoide

◆ getContentsMemorySize()

virtual tMemSize EXPR_Cylinder::getContentsMemorySize ( ) const

inlineoverridevirtual

return nthe memory size of the included associations

Returns: the memory size of the storage in bytes 1 Kb = 1024 bytes 1 Mb = 1024 Kb 1 Gb = 1024 Mb 1 Tb = 1024 Gb 1 Hb = 1024 Tb

Reimplemented from EXPR_ElementaryGeometryNode.

◆ getLength()

const tReal& EXPR_Cylinder::getLength ( ) const

inline

get the length of the cylinder

Returns: the length of the cylinder

◆ getMainDirection()

const std::array<tReal,3>& EXPR_Cylinder::getMainDirection ( ) const

inline

get the main direction

Returns: the main direction of the bottom ellipoide

◆ getMainRadius()

const tReal& EXPR_Cylinder::getMainRadius ( ) const

inline

get the half-length along main direction

Parameters

[in] L length

◆ getMemorySize()

virtual tMemSize EXPR_Cylinder::getMemorySize ( ) const

inlineoverridevirtual

return the memory size of the class

Returns: the memory size of the class in bytes 1 octet = 1 byte 1 Ko = 1024 bytes 1 Mo = 1024 Ko 1 Go = 1024 Mo

Reimplemented from EXPR_ElementaryGeometryNode.

◆ getSecondDirection()

const std::array<tReal,3>& EXPR_Cylinder::getSecondDirection ( ) const

inline

get the second direction

Returns: the main direction of the bottom ellipoide

◆ getSecondRadius()

const tReal& EXPR_Cylinder::getSecondRadius ( ) const

inline

get the half-length along secund direction

Parameters

[in] L length

◆ isInsideCanonicalGeometry()

tBoolean EXPR_Cylinder::isInsideCanonicalGeometry ( const std::array< tReal, 3 > & P ) const

finalprotectedvirtual

return true if the point is inside the canonical geometry

Parameters

[in] p coordinates of the point to test

Returns: the true if the point p is in the node

Implements EXPR_ElementaryGeometryNode.

◆ New()

static CORE_UniquePointer<EXPR_Cylinder> EXPR_Cylinder::New ( )

inlinestatic

crete the new instance of this

Returns: the unique pointer to this

◆ newInstance()

virtual CORE_UniquePointer<EXPR_ElementaryGeometryNode> EXPR_Cylinder::newInstance ( ) const

inlineoverridevirtual

create a new instance of this

Returns: a new instance of this

Implements EXPR_ElementaryGeometryNode.

◆ setArguments()

void EXPR_Cylinder::setArguments ( const std::vector< tString > & args )

overridevirtual

set the argument to define the geometry

Parameters

args arguments as string args="Cx","Cy","Cz","Ux","Uy","Uz","Vx","Vy","Vz","H" where (Cx,Cy,Cz) is the center of the ellipsoide (Ux,Uy,Uz) is the main direction of the ellipsoide |U| is the length in the U direction (Vx,Vy,Vz) is the second direction of the ellipsoide |V| is the length in the V direction H is the height of the ellipsoide U & V are orthogonalized

Implements EXPR_ElementaryGeometryNode.

◆ setCenter() [1/2]

void EXPR_Cylinder::setCenter ( const std::array< tReal, 3 > & X )

inline

set the center of the botton ellipsoide

Parameters

[in] X center in each coordinate

◆ setCenter() [2/2]

void EXPR_Cylinder::setCenter ( std::initializer_list< tReal > && X )

inline

set the center

Parameters

[in] X center in each coordinate

◆ setLength()

void EXPR_Cylinder::setLength ( const tReal & L )

inline

set the length of the cylinder

Parameters

L length

◆ setMainDirection() [1/2]

void EXPR_Cylinder::setMainDirection ( const std::array< tReal, 3 > & U )

inline

set the main direction

Parameters

[in] U : direction

◆ setMainDirection() [2/2]

void EXPR_Cylinder::setMainDirection ( std::initializer_list< tReal > && U )

inline

set the main direction

Parameters

x	direction in each coordinate

◆ setMainRadius()

void EXPR_Cylinder::setMainRadius ( const tReal & L )

inline

set the half-length along main direction

Parameters

L length

◆ setSecondDirection() [1/2]

void EXPR_Cylinder::setSecondDirection ( const std::array< tReal, 3 > & U )

inline

set the second direction

Parameters

[in] U : direction

◆ setSecondDirection() [2/2]

void EXPR_Cylinder::setSecondDirection ( std::initializer_list< tReal > && U )

inline

set the second direction

Parameters

[in] U direction in each coordinate

◆ setSecondRadius()

void EXPR_Cylinder::setSecondRadius ( const tReal & L )

inline

set the half-length along secund direction

Parameters

[in] L length

◆ toString()

tString EXPR_Cylinder::toString ( ) const

finalvirtual

return the string representation of this

Returns: the string representation of this

Reimplemented from EXPR_ElementaryGeometryNode.

The documentation for this class was generated from the following files:

/home/despreau/Developpement/CPP/devcpp20/include/math/geometry/expr/EXPR_Cylinder.h
/home/despreau/Developpement/CPP/devcpp20/src/math/geometry/expr/EXPR_Cylinder.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Detailed Description

Member Function Documentation

◆ adimensionize()

◆ computeCanonicalBoundingBox()

◆ copy()

◆ getCenter()

◆ getContentsMemorySize()

◆ getLength()

◆ getMainDirection()

◆ getMainRadius()

◆ getMemorySize()

◆ getSecondDirection()

◆ getSecondRadius()

◆ isInsideCanonicalGeometry()

◆ New()

◆ newInstance()

◆ setArguments()

◆ setCenter() [1/2]

◆ setCenter() [2/2]

◆ setLength()

◆ setMainDirection() [1/2]

◆ setMainDirection() [2/2]

◆ setMainRadius()

◆ setSecondDirection() [1/2]

◆ setSecondDirection() [2/2]

◆ setSecondRadius()

◆ toString()
